High Temperature Steel Wire Braided Heat Resistant EPDM Hose
Related Products:
HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTDis established in 2001 year.
QUALITY IS OUR COMPANY SOUL!!!
MAIN PRODUCT TYPE |
PRODUCT DETAILS |
Hydraulic Hose and Fitting |
Steel Wire Braided Reinforcement Hose(R1 R2 1SN 2SN 1SC 2SC R16 R17) |
Steel Wire Spiral Reinforcement Hose(2SP 4SP 4SH 6SP R9 R12 R13 R15) | |
Fibre Braided Covered Hose (R5) | |
Acid and Alkali Resistant Rubber Hose | |
Air Screw Compressor Hose | |
Middle Pressure Fibre Reinforcement Hose(R3 R6 1TE 2TE 3TE) | |
Thermoplastic Hose(SAE100R7 SAE100R8) | |
Nylon Hose(Single and Double Hose) | |
Industrial Hose |
Air/Water/Oil/Fuel/Steam/Chemical Suction and Discharge Hose |
Special Hose |
Concrete Pump Hose, High Pressure Drilling Hose, Inflatable Packers |
Machine Equipment |
Crimping Machine, Cutting Machine |
Application of Steam Hose:
Steam hose is for Conveying saturated steam and superhated water continually at a temperature below 150° or intermittently at a temperature below 160°
Structure:
Inner tube: EPDM
Reinforcement: Steel wire or textile
Cover: EPDM
Temperature range: -40 to 160°C
Steel Wire Braided Steam Hose
| W/B | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Length | |||
| inch | inch | mm | MPa | psi | MPa | psi | mm | metres | |
| 1W | 10 | 3/8 | 21.5 | 1 | 150 | 4 | 570 | 130 | 50/20 |
| 13 | 1/2 | 24.5 | 1 | 150 | 4 | 570 | 180 | 50/20 | |
| 16 | 5/8 | 27.5 | 1 | 150 | 4 | 570 | 205 | 50/20 | |
| 19 | 3/4 | 30.5 | 1 | 150 | 4 | 570 | 240 | 50/20 | |
| 22 | 7/8 | 33.5 | 1 | 150 | 4 | 570 | 280 | 50/20 | |
| 25 | 1 | 37 | 1 | 150 | 4 | 570 | 300 | 50/20 | |
| 32 | 1 1/4 | 44 | 1 | 150 | 4 | 570 | 420 | 40/20 | |
| 38 | 1 1/2 | 50.5 | 1 | 150 | 4 | 570 | 500 | 40/20 | |
| 45 | 1 3/4 | 57.5 | 1 | 150 | 4 | 570 | 500 | 40/20 | |
| 51 | 2 | 63.5 | 1 | 150 | 4 | 570 | 630 | 40/20 | |
| 64 | 2 1/2 | 77.5 | 1 | 150 | 4 | 570 | 700 | 40/20 | |
| W/B | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Length | |||
| inch | inch | mm | MPa | psi | MPa | psi | mm | metres | |
| 2W | 10 | 3/8 | 23 | 2 | 300 | 6 | 860 | 130 | 50/20 |
| 13 | 1/2 | 26 | 2 | 300 | 6 | 860 | 180 | 50/20 | |
| 16 | 5/8 | 29 | 2 | 300 | 6 | 860 | 205 | 50/20 | |
| 19 | 3/4 | 32 | 2 | 300 | 6 | 860 | 240 | 50/20 | |
| 22 | 7/8 | 35 | 2 | 300 | 6 | 860 | 280 | 50/20 | |
| 25 | 1 | 38.5 | 2 | 300 | 6 | 860 | 300 | 50/20 | |
| 32 | 1 1/4 | 45.5 | 2 | 300 | 6 | 860 | 420 | 40/20 | |
| 38 | 1 1/2 | 52 | 2 | 300 | 6 | 860 | 500 | 40/20 | |
| 45 | 1 3/4 | 59 | 2 | 300 | 6 | 860 | 500 | 40/20 | |
| 51 | 2 | 65 | 2 | 300 | 6 | 860 | 630 | 40/20 | |
| 64 | 2 1/2 | 79 | 2 | 300 | 6 | 860 | 700 | 40/20 | |
Low Pressure High Temperature Steam Hose
I.D. |
O.D. |
W.P. |
REIFORCE LAYER |
WEIGHT |
UNIT LENGTH |
|||
|
mm |
in. |
mm |
psi. |
mpa. |
kg/m |
m/roll |
|
3/16 |
4.8 |
0.45 |
11.5 |
300 |
2.07 |
1 |
0.15 |
100 |
1/4 |
6.4 |
0.63 |
16 |
300 |
2.07 |
1 |
0.18 |
100 |
5/16 |
7.9 |
0.59 |
15.0 |
300 |
2.07 |
1 |
0.22 |
100 |
3/8 |
9.5 |
0.75 |
19.1 |
300 |
2.07 |
1 |
0.27 |
100 |
1/2 |
12.7 |
0.91 |
23.1 |
300 |
2.07 |
1 |
0.40 |
100 |
5/8 |
15.9 |
0.96 |
24.5 |
300 |
2.07 |
1 |
0.50 |
100 |
3/4 |
19.1 |
1.14 |
29.0 |
300 |
2.07 |
1 |
0.75 |
100 |
3/4 |
19.1 |
1.18 |
30.0 |
300 |
2.07 |
2 |
0.80 |
100 |
1 |
25.4 |
1.42 |
36.1 |
300 |
2.07 |
1 |
0.95 |
100 |
1 |
25.4 |
1.42 |
36.1 |
300 |
2.07 |
2 |
0.95 |
100 |
1 1/4 |
31.8 |
1.75 |
44.5 |
300 |
2.07 |
2 |
0.70 |
50 |
1 1/2 |
38.1 |
2 |
54.0 |
300 |
2.07 |
2 |
0.85 |
50
|

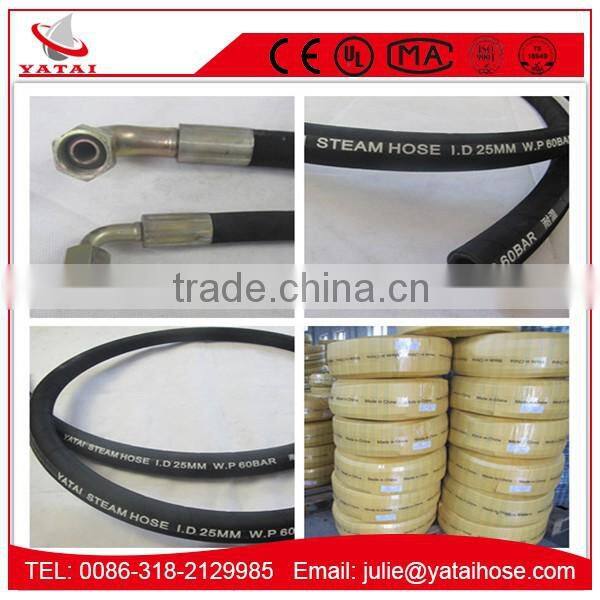

EPDM Hose Pictures:
EPDM Hose Producing Line:
EPDM Hose Exhibition and Certification:
EPDM Hose Feedback from Clients:
