6x4 10m3 concrete pump mixer truck
1 Dongfeng chassis
2 Powerful engine
3.high efficience
Our company aims at the demand of market to develop concrete mixers with size of 8, 9, 10, 12 , 14 and 16 cubic meters, which are with compact structure, credible technology and excellent performance. Different brand chassis and imported hydraulic parts can be installed according to customers' requests. It's adopt with Rexroth / Italy / Eaton pump, motor, Bonfiglioli / Messori reducer etc.

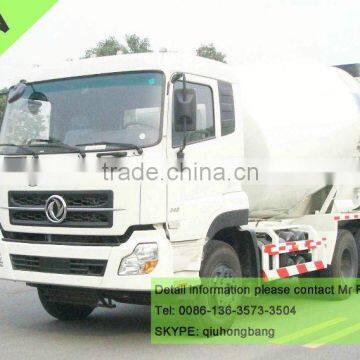

6x4 10m3 concrete pump mixer truck photo
6x4 10m3 concrete pump mixer truck advantages
6x4 10m3 concrete pump mixer truck
1. The cement mixer truck adopts Dongfeng chassis (Eur III) with cummins engine.
2. Dongfeng 6*4 Cement mixer truck hydraulic drive fits with international famous brand are adopted.
3. The integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system.
4. Multi-points control system enables the operation to be simpler, safer and more comfortable.
5. Dongfeng 6*4 cement mixer truck adopts the air pressure water supply system with large capacity water tank(350 liters)
6x4 10m3 concrete pump mixer truck specifications
| Technical parameters of mixing tube | Tube geometric volume | m3 | 17.2 |
| Stirring volume | m3 | 8 | |
| Filling rate | % | 63 | |
| Rate of feeding | m3/min | ≥3 | |
| Rate of delivery | m3/min | ≥2.0 | |
| The remaining rate | % | ≤0.1 | |
| Tube service spped | r/min | 0~12 | |
| Tube dip | ° | 13~15 | |
| Hydraulic drive parameters | Oil pump | Messori PV89(Italy) | |
| Hydraulic motors | Messori MF089(Italy) | ||
| Decelerator | Topunion P68(Italy) | ||
| Water supply system | Ways for supplying water | Air Pressure Water Supply | |
| Tank volume | L | 350 | |
| Chassis performance parameters | Chassis model | DFL5251GJBA1 | |
| Drive mode | 6x4 | ||
| Overall dimension(L*W*H) | mm | 9360*2500*3960 | |
| Axle Wheelbase/No. | mm | 3800+1350/3 | |
| Front/Rear trace | mm | 2027/1820 | |
| Front/Rear Axle | 7T/ double 13T | ||
| Tire type | 11.00R20 | ||
| Approaching/departure angle | 20/13 | ||
| Front/Rear suspension | mm | 1500/2470 | |
| Spring Leaf No. | 10/13,11/13,10/14,11/14 | ||
| Gearbox | RT11509 | ||
| Max speed | km/h | 90 | |
| Engine parameters | Engine model | L340 30 Dongfeng Cummins | |
| Emission standard |
GB3847-2005,GB17691-2005 EURIII |
||
| Emission/Power | ml/kw | 8900/250(340HP) | |
| Engine's maximum power | Kw/rpm | 259/2100 | |
| Engine's maximum torque | Nm/rpm | 1454/1100 | |
| Quality parameters | Gross weight | kg | 25000 |
| Payload weight | kg | 10770 | |
| Curb weight | kg | 14100 | |
6x4 10m3 concrete pump mixer truck contact information
Mr Ford / Export Dept
HUBEI RUNLI SPECIAL AUTOMOBILE CO., LTD
Address: Road, Liangshui Avenue, Suizhou City, Hubei Province, China
Tel:86-722-3308888,3309999
Fax: 86-722-3309898,3309977
Mobile: 0086-136 3573 3504
Skype: qiuhongbang
Email: fordqiu at
ALIBABA: http://dlgoodtruck.en.china.cn
Welcome to visit our factory.
