Wire Reinforced Steam Flexible Hose

Name: Wire Reinforced Steam Flexible Hose
Brand: YATAI
Price: USD $0.5 - 5.8 / Meter

FOB Price

USD $0.5 - $5.8 / Meter

300 Meters(Min.Order)

Supply Ability 100000000 Meter / Meters per Month
Port Xingang Port Qingdao Port
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Hebei, China

Brand Name:

YATAI

Model Number:

3.3-51mm

Product Description

COMPANY INTRODUCTION:

Hengshui Yatai Especial Rubber Products Co.,LTD is established in 2001 year.

Main production:Hydraulic Hose,High Pressure Steel Wire Braided Hose,High Pressure Steel Wire Spiral Hose,SAE & DIN Standard Rubber Hose, High Pressure Hose Assembly,LPG CNG Rubber Hose,Color Rubber Hose,Steam Hose, Acid and Alkali resistant Rubber Hose, Special Rubber Hose, Inflatable Packer and so on.

Export to USA,UK,France,Italy,Korea,Russia,Brazil,Malaysia and so on.

Our products are not only reach National Standard,but also have passed ISO9001,ISO/TS16949 quality certification.

Wire Reinforced Steam Flexible Hose

Application of High Pressure Steam Hose

Steam hose is for Conveying saturated steam and superhated water continually at a temperature below 150° or intermittently at a temperature below 160°

Structure:

Inner tube: EPDM

Reinforcement: Steel wire or textile

Cover: EPDM

Temperature range: -40 °F to 326°F

One Steel Wire Layer Reinforced

W/B	Hose I.D		Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Length
W/B	inch	inch	mm	MPa	psi	MPa	psi	mm	metres
1W	10	3/8	21.5	1	150	4	570	130	50/20
	13	1/2	24.5	1	150	4	570	180	50/20
	16	5/8	27.5	1	150	4	570	205	50/20
	19	3/4	30.5	1	150	4	570	240	50/20
	22	7/8	33.5	1	150	4	570	280	50/20
	25	1	37	1	150	4	570	300	50/20
	32	1 1/4	44	1	150	4	570	420	40/20
	38	1 1/2	50.5	1	150	4	570	500	40/20
	45	1 3/4	57.5	1	150	4	570	500	40/20
	51	2	63.5	1	150	4	570	630	40/20
	64	2 1/2	77.5	1	150	4	570	700	40/20

Two Steel Wire Layer Reinforced

W/B	Hose I.D		Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Length
W/B	inch	inch	mm	MPa	psi	MPa	psi	mm	metres
2W	10	3/8	23	2	300	6	860	130	50/20
	13	1/2	26	2	300	6	860	180	50/20
	16	5/8	29	2	300	6	860	205	50/20
	19	3/4	32	2	300	6	860	240	50/20
	22	7/8	35	2	300	6	860	280	50/20
	25	1	38.5	2	300	6	860	300	50/20
	32	1 1/4	45.5	2	300	6	860	420	40/20
	38	1 1/2	52	2	300	6	860	500	40/20
	45	1 3/4	59	2	300	6	860	500	40/20
	51	2	65	2	300	6	860	630	40/20
	64	2 1/2	79	2	300	6	860	700	40/20

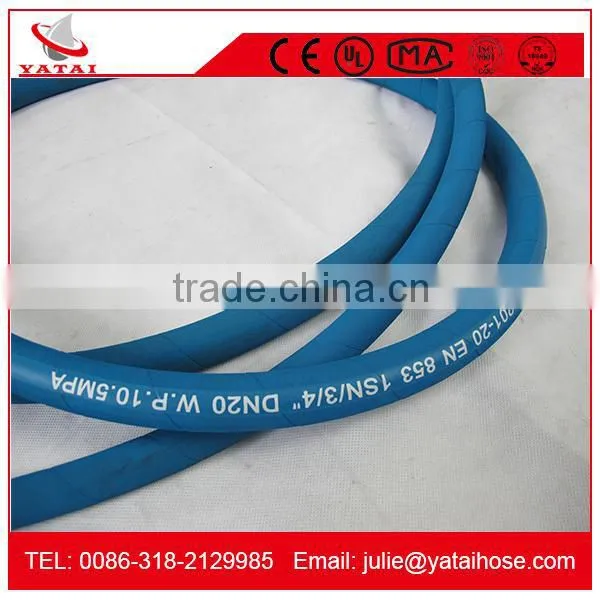

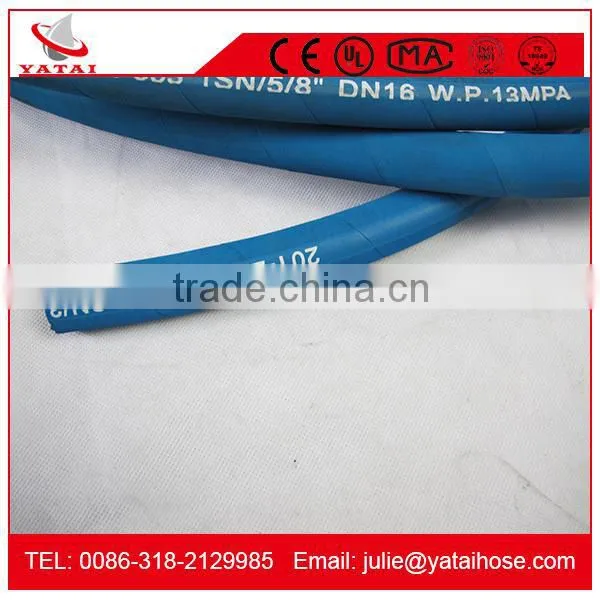

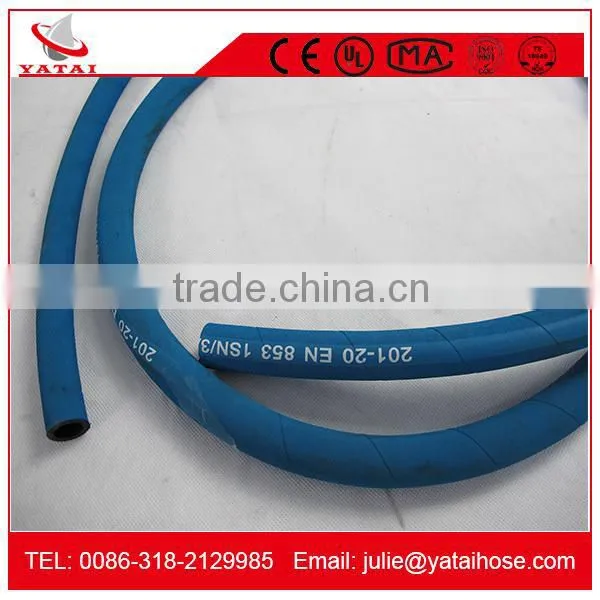

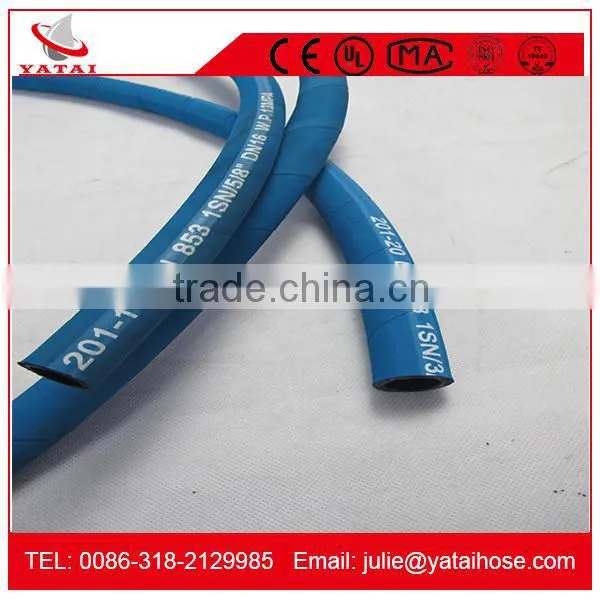

Steam Hose Pictures:

Steam Hose Buyer:

Steam Hose Export to All of the World:

Steam Hose Processing Procedures:
