COMPANY INTRODUCTION:
Hengshui Yatai Especial Rubber Products Co.,LTD is established in 2001 year.
Main production:Hydraulic Hose,High Pressure Steel Wire Braided Hose,High Pressure Steel Wire Spiral Hose,SAE & DIN Standard Rubber Hose, High Pressure Hose Assembly,LPG CNG Rubber Hose,Color Rubber Hose,Steam Hose, Acid and Alkali resistant Rubber Hose, Special Rubber Hose, Inflatable Packer and so on.
Export to USA,UK,France,Italy,Korea,Russia,Brazil,Malaysia and so on.
Our products are not only reach National Standard,but also have passed ISO9001,ISO/TS16949 quality certification.

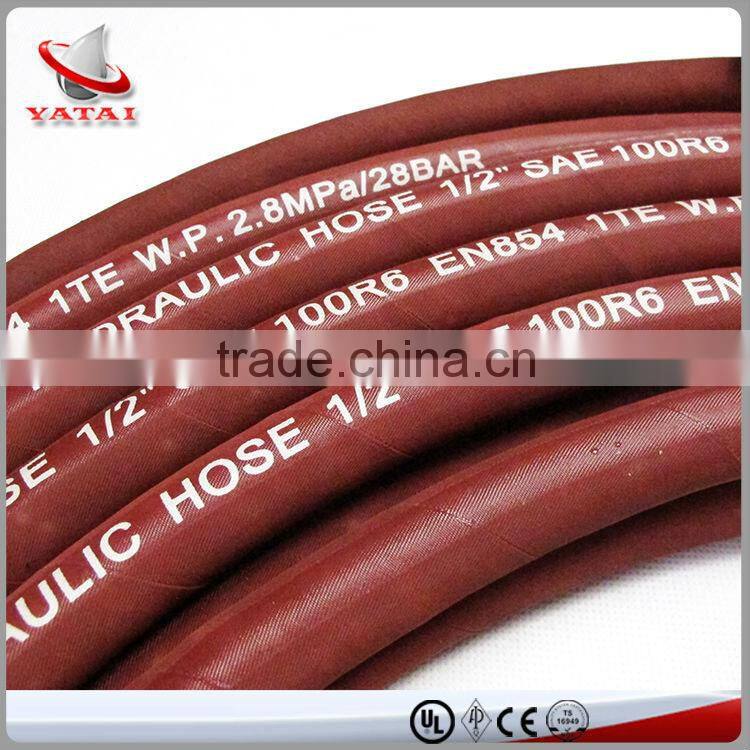

Smooth Hydraulic Hose Steel Wire Braided Steam Hose
Application of High Pressure Steam Hose
Steam hose is for Conveying saturated steam and superhated water continually at a temperature below 150° or intermittently at a temperature below 160°
Structure:
Inner tube: EPDM
Reinforcement: Steel wire or textile
Cover: EPDM
Temperature range: -40 to 160°C
| W/B | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Length | |||
| inch | inch | mm | MPa | psi | MPa | psi | mm | metres | |
| 1W | 10 | 3/8 | 21.5 | 1 | 150 | 4 | 570 | 130 | 50/20 |
| 13 | 1/2 | 24.5 | 1 | 150 | 4 | 570 | 180 | 50/20 | |
| 16 | 5/8 | 27.5 | 1 | 150 | 4 | 570 | 205 | 50/20 | |
| 19 | 3/4 | 30.5 | 1 | 150 | 4 | 570 | 240 | 50/20 | |
| 22 | 7/8 | 33.5 | 1 | 150 | 4 | 570 | 280 | 50/20 | |
| 25 | 1 | 37 | 1 | 150 | 4 | 570 | 300 | 50/20 | |
| 32 | 1 1/4 | 44 | 1 | 150 | 4 | 570 | 420 | 40/20 | |
| 38 | 1 1/2 | 50.5 | 1 | 150 | 4 | 570 | 500 | 40/20 | |
| 45 | 1 3/4 | 57.5 | 1 | 150 | 4 | 570 | 500 | 40/20 | |
| 51 | 2 | 63.5 | 1 | 150 | 4 | 570 | 630 | 40/20 | |
| 64 | 2 1/2 | 77.5 | 1 | 150 | 4 | 570 | 700 | 40/20 | |
| W/B | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Length | |||
| inch | inch | mm | MPa | psi | MPa | psi | mm | metres | |
| 1W | 10 | 3/8 | 23 | 2 | 300 | 6 | 860 | 130 | 50/20 |
| 13 | 1/2 | 26 | 2 | 300 | 6 | 860 | 180 | 50/20 | |
| 16 | 5/8 | 29 | 2 | 300 | 6 | 860 | 205 | 50/20 | |
| 19 | 3/4 | 32 | 2 | 300 | 6 | 860 | 240 | 50/20 | |
| 22 | 7/8 | 35 | 2 | 300 | 6 | 860 | 280 | 50/20 | |
| 25 | 1 | 38.5 | 2 | 300 | 6 | 860 | 300 | 50/20 | |
| 32 | 1 1/4 | 45.5 | 2 | 300 | 6 | 860 | 420 | 40/20 | |
| 38 | 1 1/2 | 52 | 2 | 300 | 6 | 860 | 500 | 40/20 | |
| 45 | 1 3/4 | 59 | 2 | 300 | 6 | 860 | 500 | 40/20 | |
| 51 | 2 | 65 | 2 | 300 | 6 | 860 | 630 | 40/20 | |
| 64 | 2 1/2 | 79 | 2 | 300 | 6 | 860 | 700 | 40/20 | |

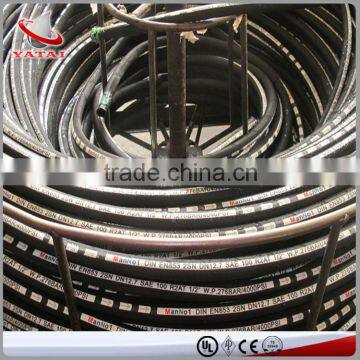

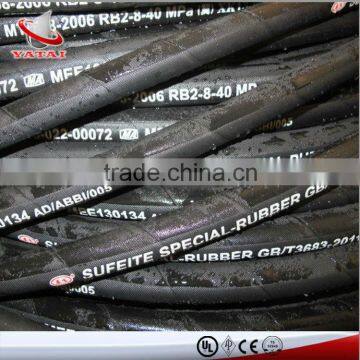

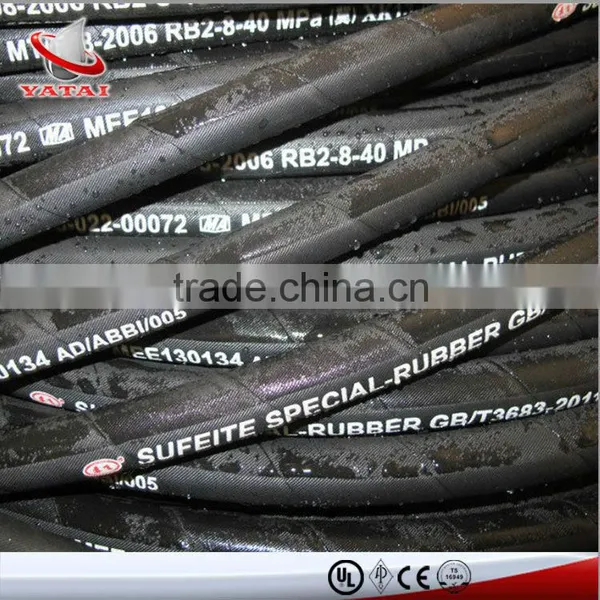

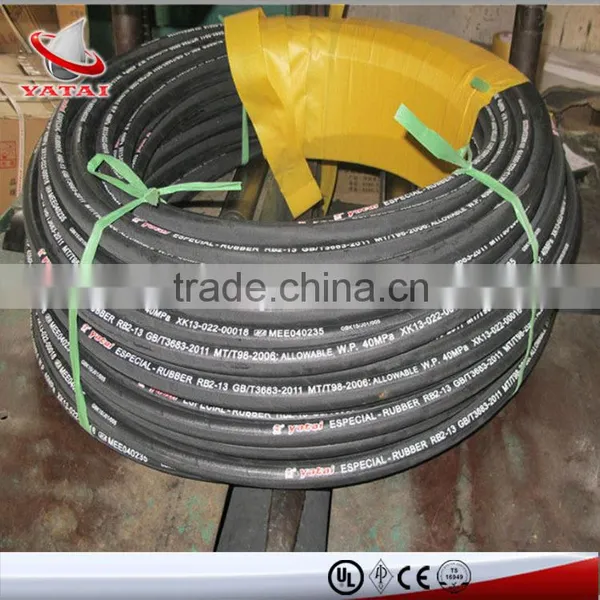

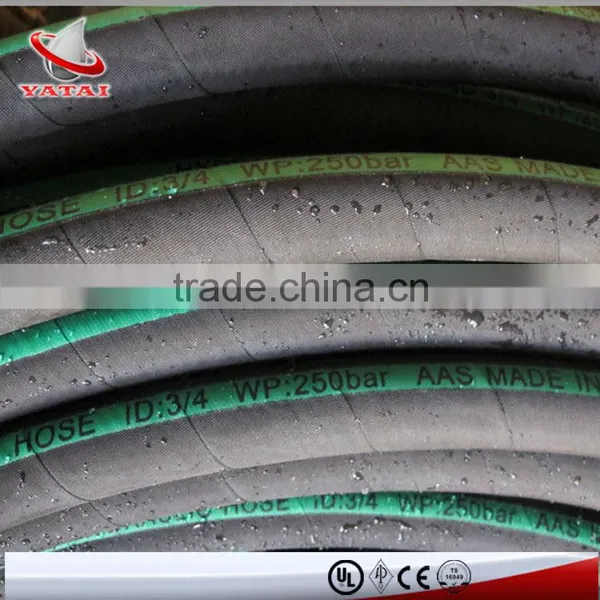

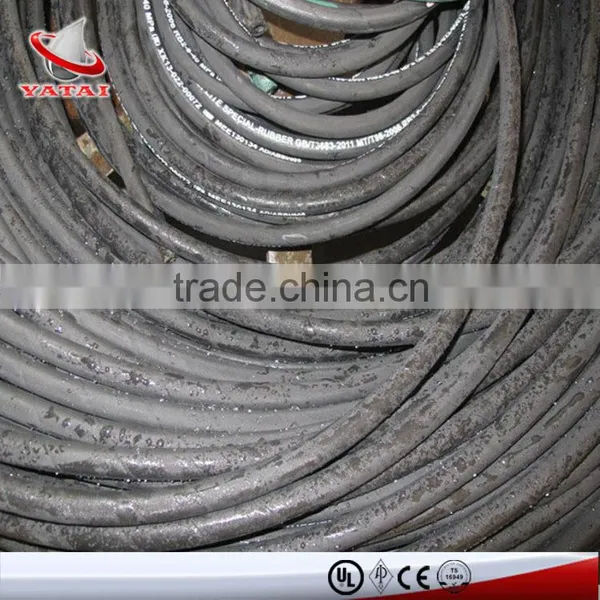

Steel Wire Braided Steam Hose Pictures:
Steel Wire Braided Steam Hose Buyer: Steel Wire Braided Steam Hose Export to All of the World:
Steel Wire Braided Steam Hose Processing Procedures:
