Hydarulic Clamp Carrier Press Machine Composer
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Hydraulic composer | |
| Place of Origin | Shandong, China | Brand Name | SF | |
| Model Number | MY2500-14B | Voltage | 220v, 380v, 415v or 440v | |
| Power(W) | 1.1kw | Dimension(L*W*H) | 3830*426*3750mm | |
| Weight | 3750 kg | Certification | ce | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Film packing or wooden packing
Product Description

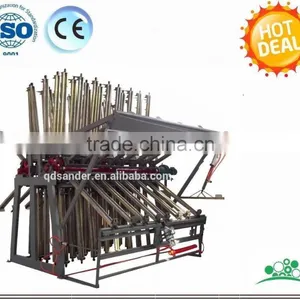

Hydarulic clamp carrier press machine composer
Hydarulic clamp carrier press machine composer

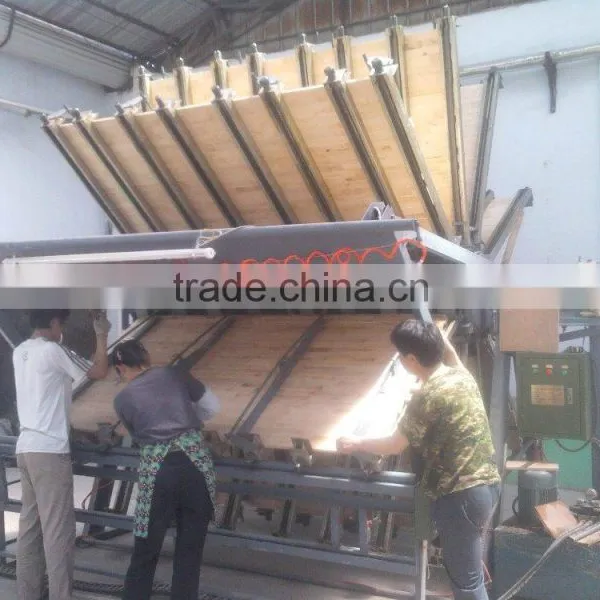

The pneumatic composer is special for sawn tree and wood floor industry,utility furniture industry, and so on.It splices small boards which have been processed and treated in advance into big board, and it improves the wood utilization rate.
This machine has pneumatic and hydraulic two types. Now the pneumatic types has been widely used in may board factory.
Model | MY-2500(10) | MY-2500(14) | MY-2500 (20) |
Splicing length | 400-2500mm | 400-2500mm | 400—2500mm |
Splicing width | 300-1250mm | 300-1250mm | 300-1250mm |
Splicing thickness | 10-100mm | 10-100mm | 10-100mm |
Motor power | 1.1KW | 1.1KW | 1.1KW |
Clamping type | Pneumatic clamping major,elastic pressure auxiliary | ||
Clamping quantity | 80 | 112 | 160 |
Dimension (L*W*T mm) | 3800*5010*3750 | 3830*5010*3750 | 3830*5010*3750 |
Remark | All data is based on standard specification, and we can change specification and parameter according to customer’s requirements. | ||
Model | Number of lines | Specification |
MY-2500-6A | 6 | 2500X1000mm |
MY-2500-6B | 6 | 2500X1250mm |
MY-2500-10A | 10 | 2500X1000mm |
MY-2500-10B | 10 | 2500X1250mm |
MY-2500-14A | 14 | 2500X1000mm |
MY-2500-14B | 14 | 2500X1250mm |
MY-2500-20A | 20 | 2500X1000mm |
MY-2500-20B | 20 | 2500X1250mm |
MY-2500-30A | 30 | 2500X1000mm |
MY-2500-30B | 30 | 2500X1250mm |
MY-2500-40A | 40 | 2500X1000mm |
MY-2500-40B | 40 | 2500X1250mm |
MY-4500-10A | 10 | 4500X1000mm |
MY-4500-10B | 10 | 4500X1250mm |
MY-4500-14A | 14 | 4500X1000mm |
MY-4500-14B | 14 | 4500X1250mm |
MY-4500-20A | 20 | 4500X1000mm |
MY-4500-20B | 20 | 4500X1250mm |
Detailed information:
Hydarulic clamp carrier press machine composer
Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.
We are specialized in manufacturing woodworking machines for many years in Qingdao China.
with over 30 years of experiences in woodworking machine and metalworking fields, we have developed various series of woodworking machines, such as sander machine, sliding table saw,hot press,Hydraulic clamp carrier and so on. The SF brand sander is the famous brand in China Market,which includs wide belt sander, lacquer sander, water sander, double side sander and brush sander.
In order to supply high quality product and excellent services, we are continually improving our products with the latest technologies according to the market prevailing requirements. In the past years, all our products has got CE and ISO certificate.
Production meeting everyday morning.
Production corner
CE Certificate ISO Certificate
1. Give easy broken spare parts with machine.
2. Our technician will tell you how to deal with small problems.
3. If request, our technician can go to your place to solve problems.
1. The machine has been setted before leaving factory.
2. We will send some easy broken spare parts with the machine.
3. The min. order is 1 pc.
4.We have our own factory. If you want to invest or sell our machines in your market , we expect to cooperate with you.
