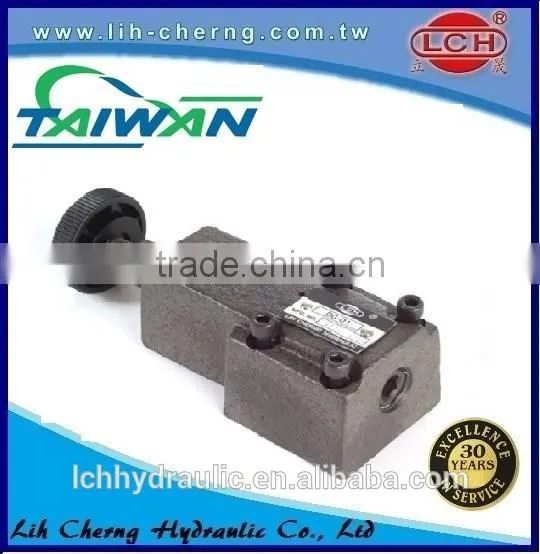

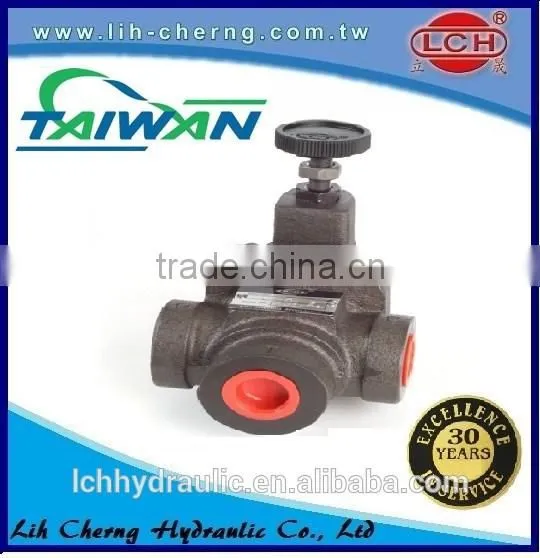

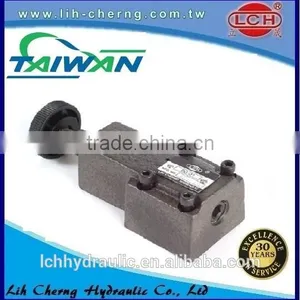

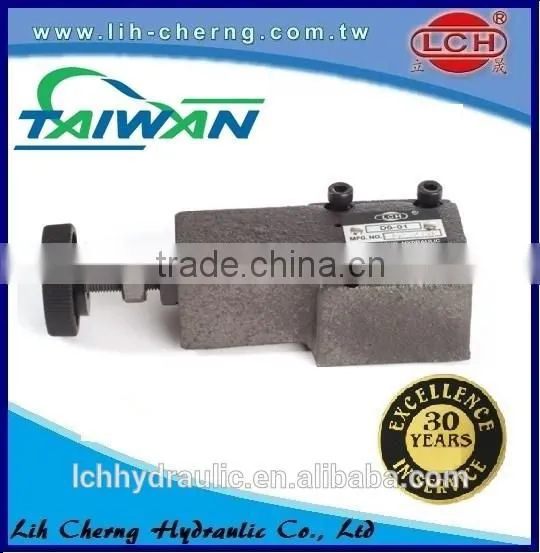

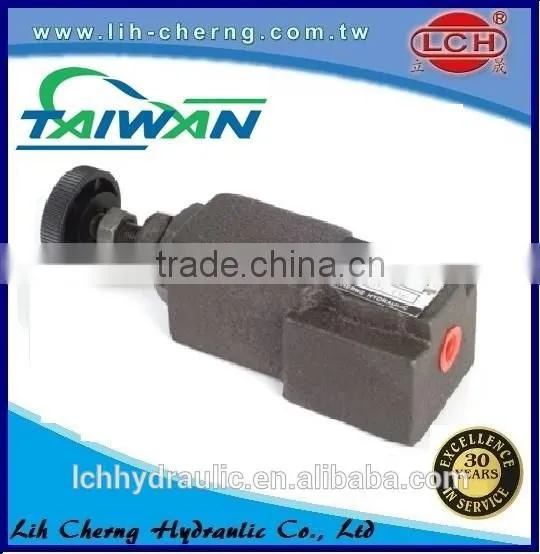

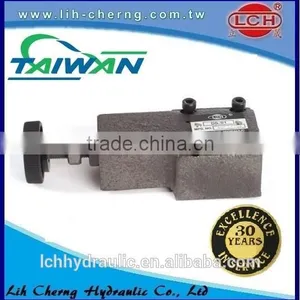

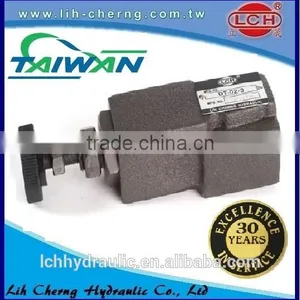

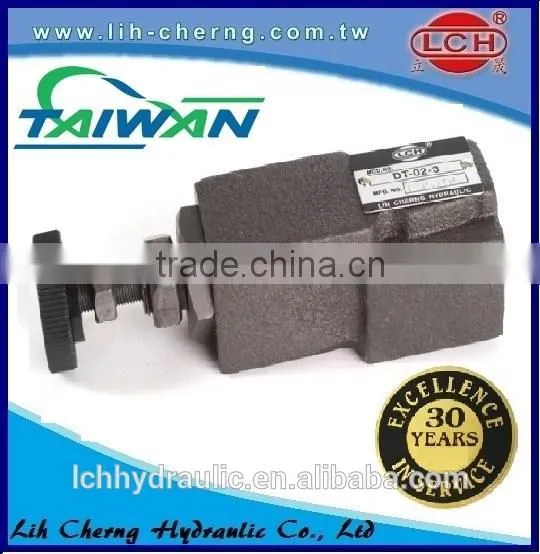

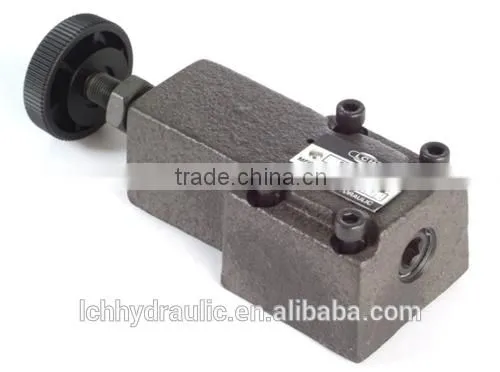

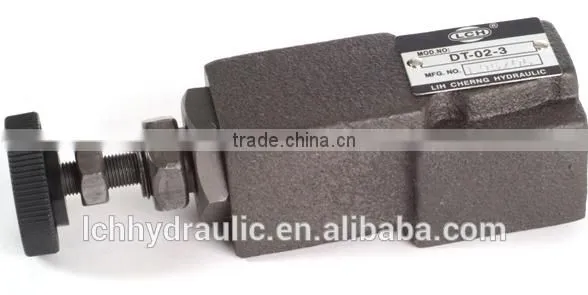

alibaba china hydraulic remote control valve
Features:
- DT-01 and DG-01 series hydraulic valve could connect with balanced piston type of vent. It works by using small flows pressure to control remotely large flows pressure which can be matched the requirements of versatile hydraulic system.
- DT-02 and DG-02 series hydraulic valve can be used to control small flows hydraulic system pressure.
- This kind of valves is worked for preventing damage in a hydraulic circuit if over pressure. It is used for adjust the maximum circuit pressure of small capacity.
Specifications:
Model Numbers |
Max. Pressure |
Pressure Adj. Range |
Max. Flow |
Weight |
Bolt Size |
|
Thread type |
Gasket type |
kgf/cm2 |
kgf/cm2 |
l/min |
kg |
DG- |
DT-01 |
DG-01 |
250 |
1: 7-70, 2:10-140, 3:15-210, 4:15-300 |
2 |
1.2 |
M5x40x4pcs |
DG-02 |
DG-02 |
16 |
1.5 |
M5x45x4pcs |
||
Model Number:
D |
G |
01 |
1 |
10 |
l |
l |
l |
l |
l |
|
Series Number: Direct Type Relief Valves |
Type of Mounting T: Thread type G: Gasket type |
Port Size 01:1/8” 02:1/4”
|
Pressure Adj. Range 1:7-70kgf/cm2 2:10-140kgf/cm2 3.:15-210kgf/cm2 |
Design Number |
Company History:
Product process:
Q.How to request a manufacturing quote from LCH?
A.Give us a call or send us an E-mail (lch at .tw) with your purchase request.
Q.What are your quality control procedures?
A.LCH is equpped with high-tech, advaned cmputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason hy LCH is recognized as on the world class quality level.
Q.How are orders packed and shipped?
A. Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigatation).
Q. Could LCH offer OEM service?
A.Yes. LCH is able to offer OEM with customers' brand name and trademark onto the product.
Q.Do LCH products come with a warranty?
A.Yes.LCH offer 1-year product life guarantee without abusive usage on all purchases which begins with the bill of lading.
