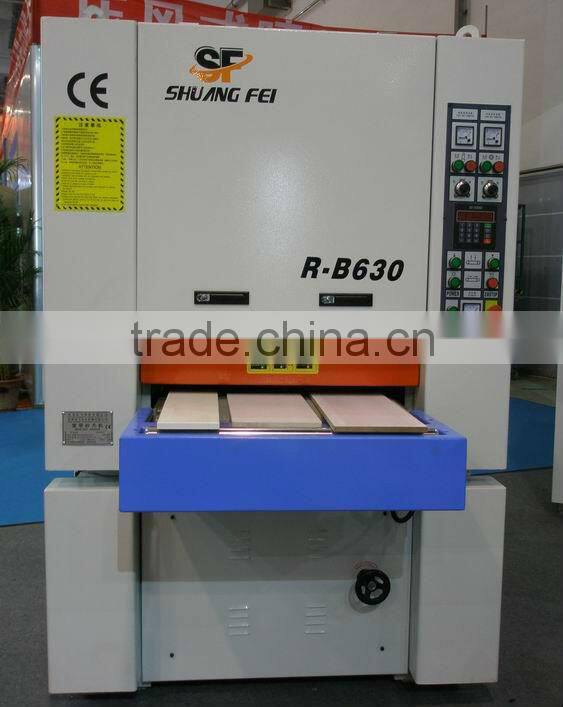

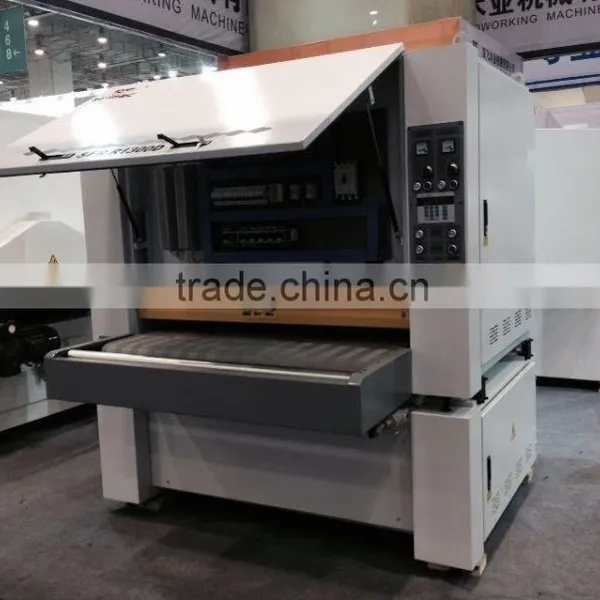

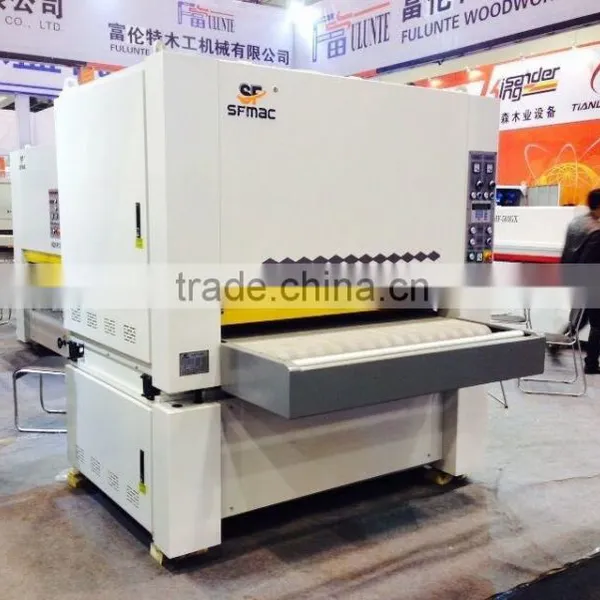

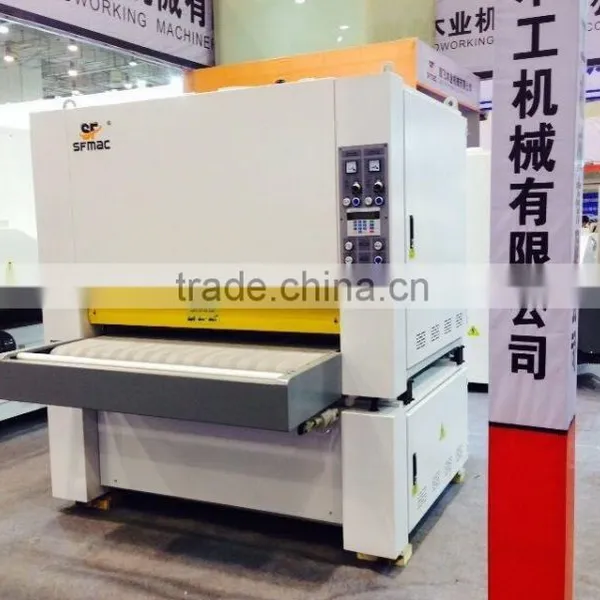

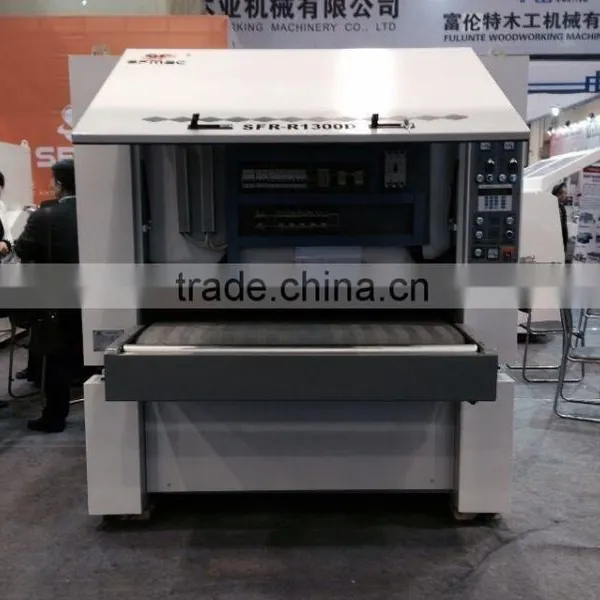

Floating painting sanding machine
The series characters:
1.for sanding and polishing all kinds of Paint.
2. has one head,one head with polishing pad, two types.
3. sanding width between 400mm to 2000mm.
This type characters:
1.has one head with polishing pad
2.sanding and polishing Max.630mm width.
3. The machine adopt up sanding frame structure, constant working table height relative to the ground, when the thickness of the work piece changes, the machine body movements.
4. Soft rolls using 25SH natural rubber,Elasticity bigger, clear stripes and white side of the phenomenon, high precision, and long life.

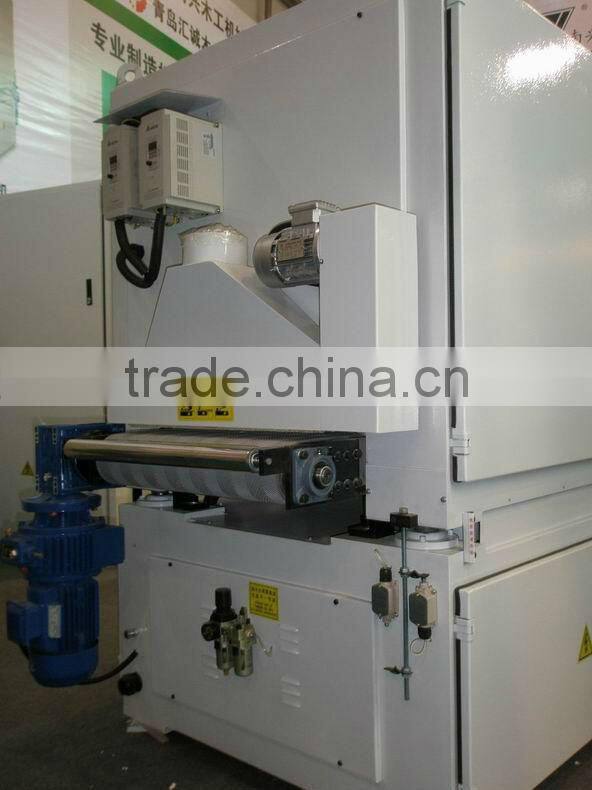

5. with U.S. 3M polishing roller, frequency control, height adjustable, easily eliminate stripes phenomenon, which get more excellent polishing effect, especially for the production line. Is the advanced roller coating production line necessary equipment.
6. If use with down frame sander together, sanding both sides one time, high efficiency savings in manpower.
Type | SFR-B630 |
Working Width (mm) | 40- 630 |
Working Thickness (mm) | 2.5-110 |
Sanding belt speed (m/s) | Frequency Converter |
Sanding belt size (mm) | 650*1700 |
Speed of Feeding Belt (m/min) | 4-16 |
Total Motor Power (kw) | 9.5 |
Working Air Pressure (Mpa) | 0.6 |
Consumption of compressed air(m3/min) | 0.5 |
Overall Dimensions: (L x W x L)mm | 1300*1000*2000 |
Weight (kg) | 900 |
Details:
1) Star delta starting on main motor

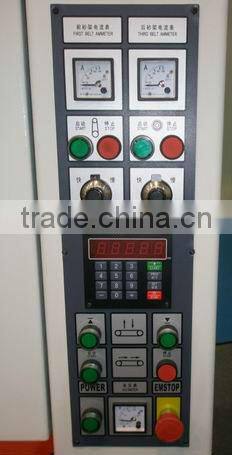

2) Digital thickness display
3) Feeding belt automatic entering
4) Protector for sanding elt break down and utension
5) Board thicknesss setting device
6) Emergeny button for safety , it can stop at once
7) Photoelectric and double contact cylicder control vibrating of abrasive belt along center
8) Front press roller use on way bearing avoid injuring workers
9) Automatic air blower on belt
10) Plc control (optional)

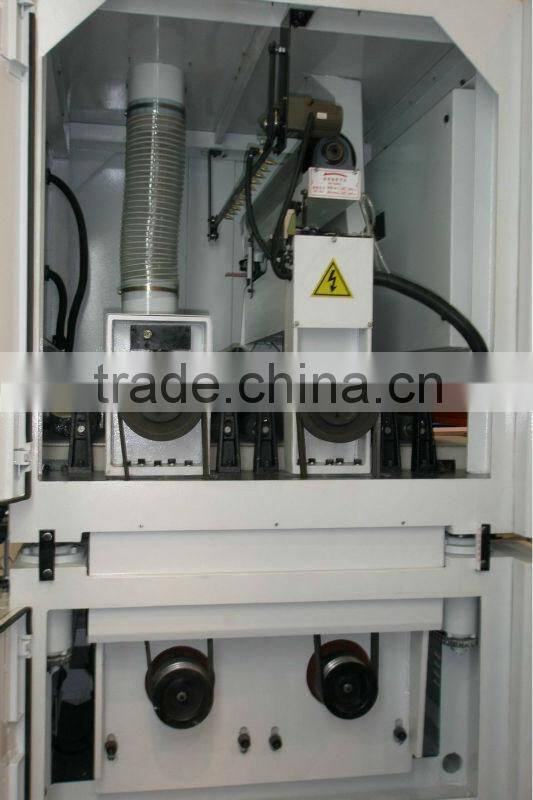

One head with one pad

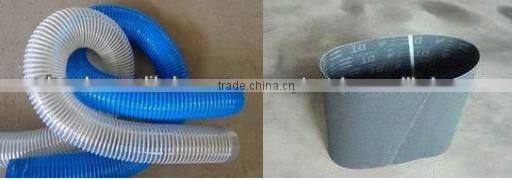

Standard spart parts

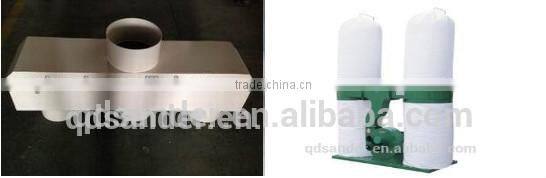

Optional spart parts
Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.
We are specialized in manufacturing woodworking machines for many years in Qingdao China.
with over 30 years of experiences in woodworking machine and metalworking fields, we have developed various series of woodworking machines, such as sander machine, sliding table saw,hot press,Hydraulic clamp carrier and so on. The SF brand sander is the famous brand in China Market,which includs wide belt sander, lacquer sander, water sander, double side sander and brush sander.
In order to supply high quality product and excellent services, we are continually improving our products with the latest technologies according to the market prevailing requirements. In the past years, all our products has got CE and ISO certificate.
Production meeting everyday morning.
Production corner
Exhibiton
CE Certificate ISO Certificate
1. Give easy broken spare parts with machine.
2. Our technician will tell you how to deal with small problems.
3. If request, our technician can go to your place to solve problems.
1. The machine has been setted before leaving factory
2. We will send some easy broken spare parts with the machine.
3. The min. order is 1 pc.
4.We have our own factory. If you want to invest or sell our machines in your market , we expect to cooperate with you.
