Paint Equipment Suppliers

standard packing or wooden packing

Specifications

Paint Equipment Suppliers
1.Independent transducer, paint recycling.
2.Precise control coating thickness

Paint Equipment Suppliers

Paint Equipment Suppliers

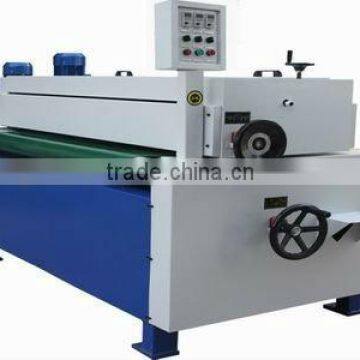

This machine is special for coating paint on the surface of all kinds of flat products, such as furniture, floor, metal, glass , handicraft ,etc. After processing, the surface will be formed the thin coating with stripe. It usually be used with other respective machine, such as conveyor, UV dryer and sanding machine.



This machine has the following three types. One roller, double roller and three roller.

Characters:

1. Roller wheel coating with independent transducer

2. Precise control coating thickness

3. Roller can be fast replaced.

4. The paint is available for recycling.

5. Has button control and PLC control choice.



Roller coater (one roller)

Type	SFRC600A	SFRC1000A	SFRC1300A
Painting width	600 mm	1000 mm	1300 mm
Working thickness	2-80 mm	2-80 mm	2-80 mm
Min. Painting length	300 mm	300 mm	300 mm
Feeding speed	5-30m/min	5-20m/min	5-20m/min
Rubber wheel size	Φ240*750 mm	Φ240*1150 mm	Φ240*1450 mm
Steel wheel size	Φ130*750 mm	Φ130*1150 mm	Φ130*1450 mm
Conveyor power	0.75 kw	1.5 kw	1.5 kw
Rubber wheel power	0.75 kw	1.5 kw	1.5 kw
Steel wheel power	0.37 kw	0.75 kw	0.75 kw
Heating power	3 kw	3 kw	3 kw
Overall size	1000*1560*1580mm	1000*1960*1580mm	1000*2260*1580mm
Gross net	600 kgs	700 kgs	800 kgs





Management meeting



Production



Exhibition

1. Give easy broken spare parts with machine.

2. Our technician will tell you how to deal with small problems.

3. If request, our technician can go to your place to solve problems.

1. The machine has been setted before leaving factory.

2. We will send some easy broken spare parts with the machine.

3. The min. order is 1 pc.

4.We have our own factory. If you want to invest or sell our machines in your market , we expect to cooperate with you.
