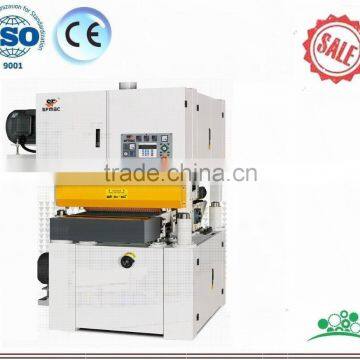

Two head calibrating machine sander
Two head calibrating machine sander
The series characters:
1. suitable for sanding and polishing MDF,Veneer,Marble,Fireproof board,Galvanized metal sheet and marble etc.
2. has two head,and four heads two types.
3. sanding width between 0mm to 630mm.
This type characters:
The machine is for surface polishing and fixed thick sanding ,suitable for timber, wood panels, block board, cement fiberboard, insulation panels, ceramic fiber, glass fiber, wall panels, wood products and other artifacts.
1. sanding and polishing Max.630mm width.
2. Front microcomputer control panel, easy to operate, flexible and efficient.
3. When breakdown happen, the device is powered down, transmission bed descend to protect the work piece safe.
4. Advanced balancing testing fixed thick rolls, steel rolls, pulleys, makes the machine run more smoothly.
5. Any combination of sand frame can meet the different processes sanding.
6. With stepless speed regulation motors, powerful transportation, high production efficiency:
Type |
SDR-630 |
SDR-R630 |
Processing width |
20-630mm |
20-630mm |
Processing thickness |
4-100mm |
4-100mm |
Processing length |
≥500mm |
≥500mm |
Up sanding belt speed |
18m/s |
18m/s |
down sanding belt speed |
18m/s |
18m/s |
Feeding speed |
2-16m/min |
2-16m/min |
Sanding belt size |
650x2000mm |
650x2000mm |
Total power |
42.15kw |
72.15kw |
Main power |
18.5kw,18.5kw |
18.5kw/15kw,18.5kw/15kw |
Air pressure |
0.55Mpa |
0.55Mpa |
Consumped air |
0.2m3/min |
0.35m3/min |
Dust Extraction Capacity |
4000m3/h |
5000m3/h |
Dust wind |
25-30m/s |
25-30m/s |
Out size |
1900x1900x2300mm |
2600x1900x2300mm |
Net weight |
2400kg |
3600kg |

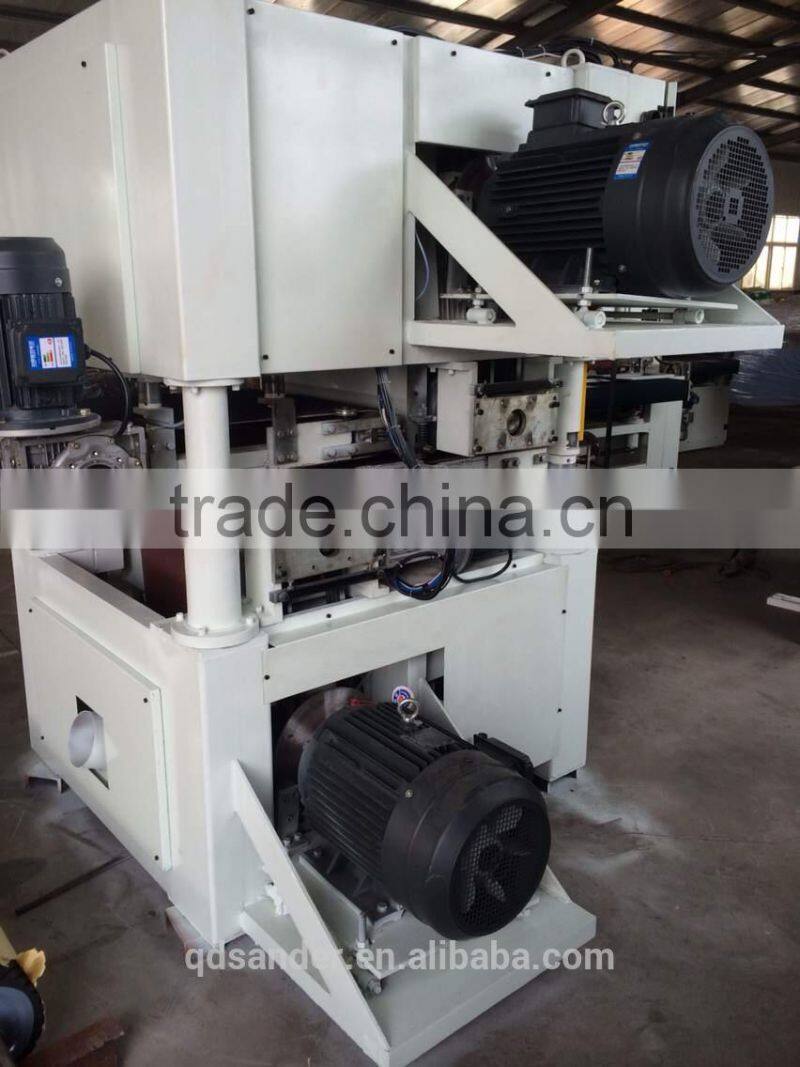

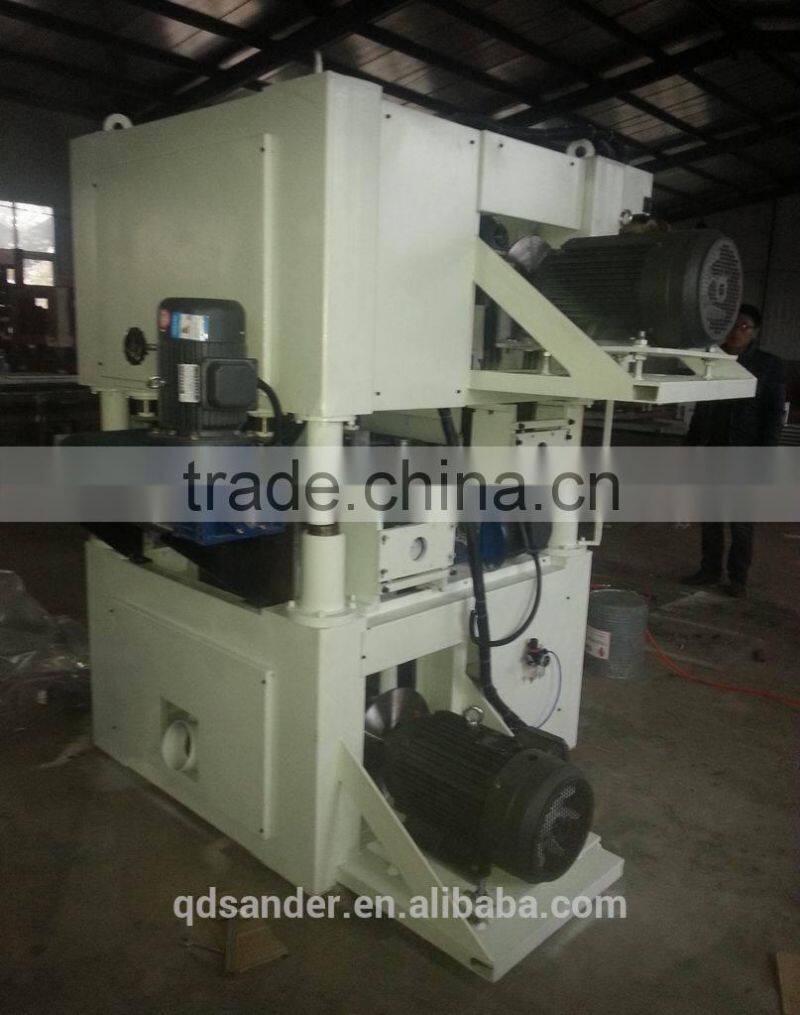

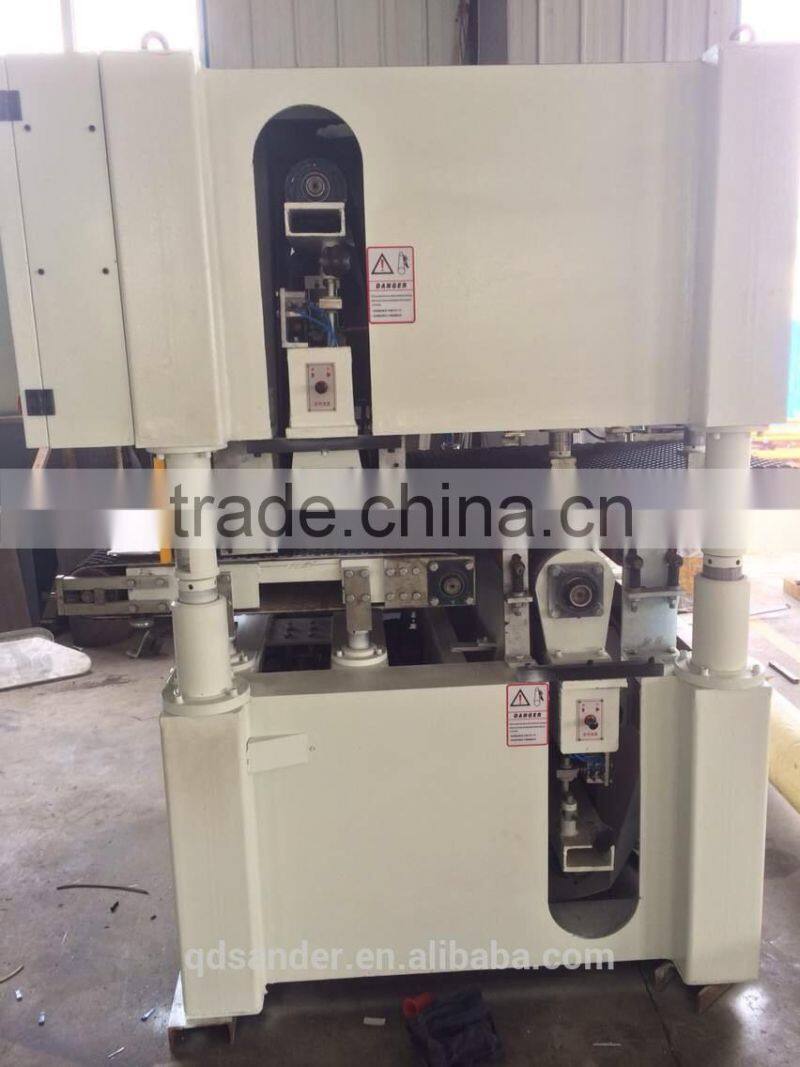

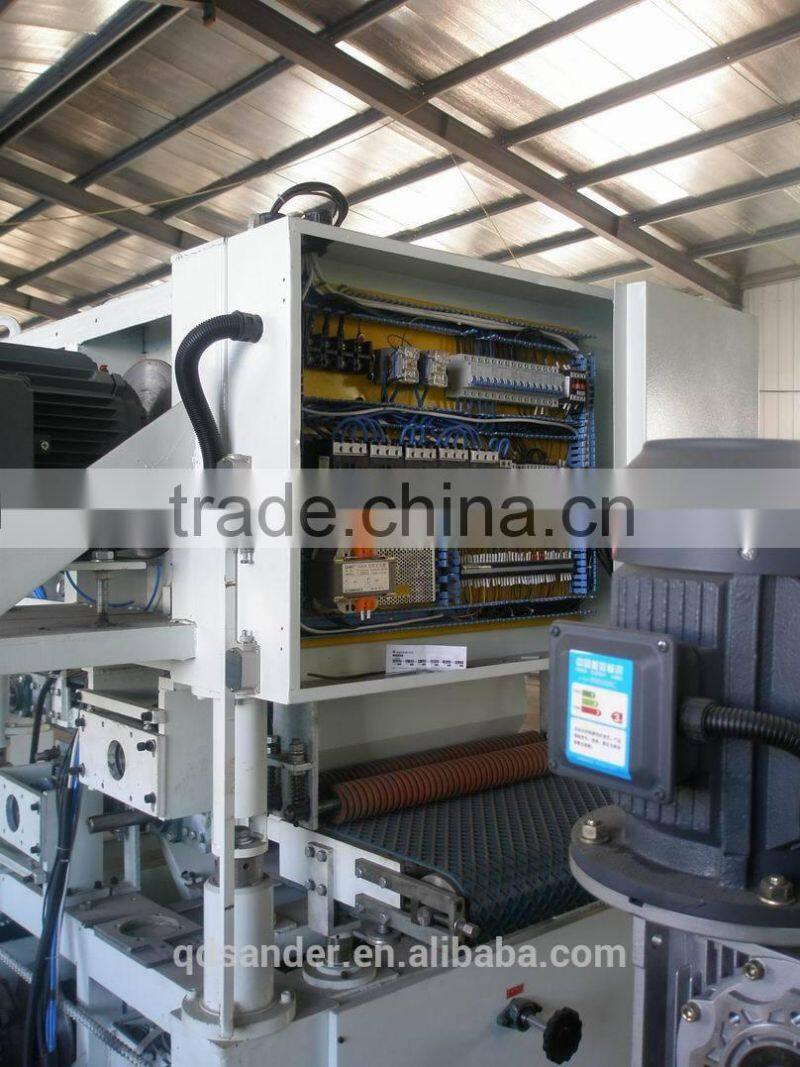

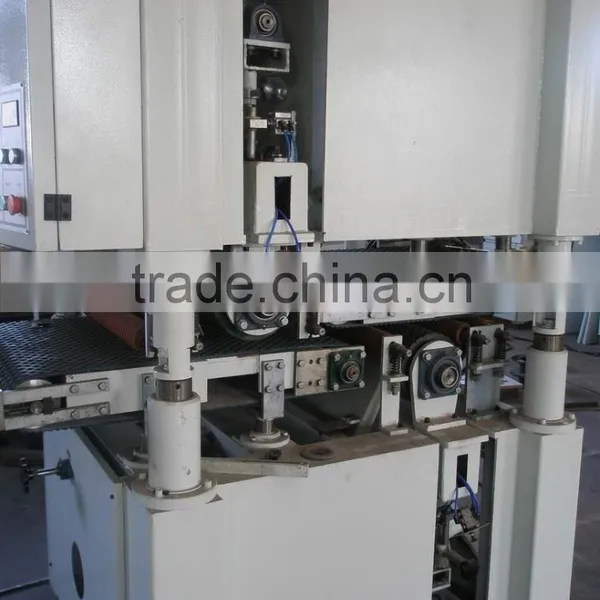

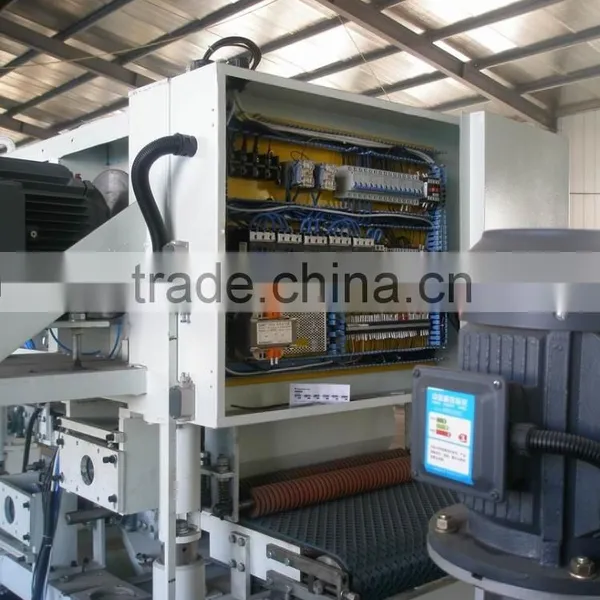

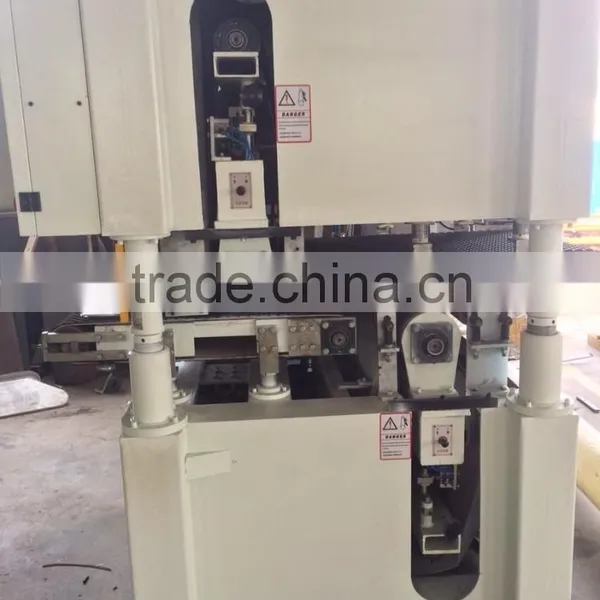

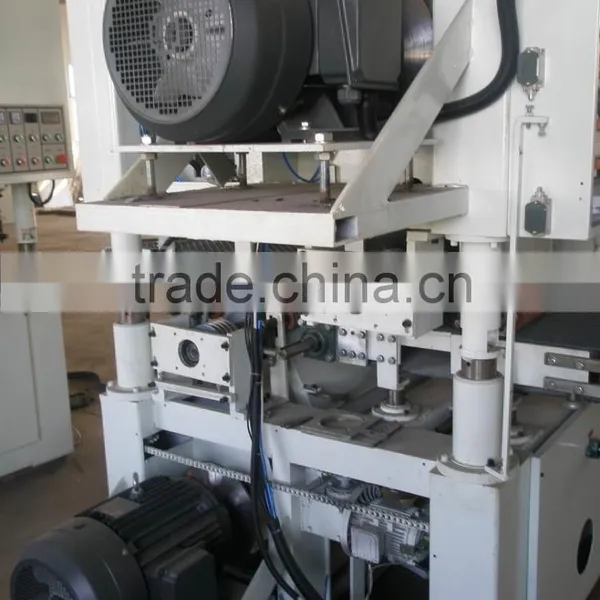

Details:
Standard spart parts
Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.
We are specialized in manufacturing woodworking machines for many years in Qingdao China.
with over 30 years of experiences in woodworking machine and metalworking fields, we have developed various series of woodworking machines, such as sander machine, sliding table saw,hot press,Hydraulic clamp carrier and so on. The SF brand sander is the famous brand in China Market,which includs wide belt sander, lacquer sander, water sander, double side sander and brush sander.
In order to supply high quality product and excellent services, we are continually improving our products with the latest technologies according to the market prevailing requirements. In the past years, all our products has got CE and ISO certificate.
Production meeting everyday morning.
Production corner
Exhibiton
CE Certificate ISO Certificate
1. Give easy broken spare parts with machine.
2. Our technician will tell you how to deal with small problems.
3. If request, our technician can go to your place to solve problems.
1. The machine has been setted before leaving factory.
2. We will send some easy broken spare parts with the machine.
3. The min. order is 1 pc.
4.We have our own factory. If you want to invest or sell our machines in your market , we expect to cooperate with you.
