Conveyor Drying tunnel1.with the clean cooling system
2.Imported high pressure mercury lamp
3.stainless steel wire conveyer

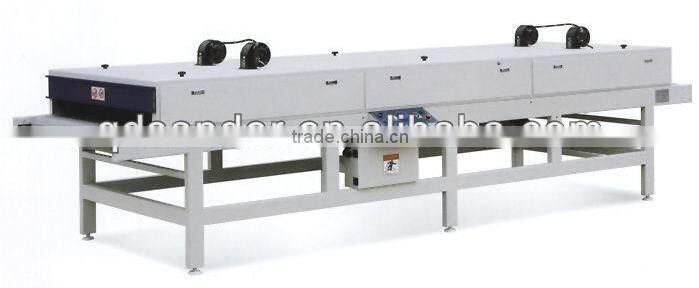

Conveyor Drying tunnel
Conveyor Drying tunnel
1.with the clean cooling system
2. Imported high pressure mercury lamp
3. Conveyor is stainless steel wire
Characters:
1. Can dry five surfaces at one time.
2. Fast dry in short time.
3. Famous electric (Schneider).
Technical parameters:
Model No |
SFHT600 |
SFHT1000 |
SFHT1300 |
Max. process width |
600 mm |
1000 mm |
1300 mm |
Max. process thickness |
0.1-180 mm |
0.1-180 mm |
0.1-180 mm |
Feeding speed |
Frequency converter |
Frequency converter |
Frequency converter |
Feeding power |
0.75 kw |
1.5 kw |
1.5 kw |
Heating power |
10.8 kw |
16.2 kw |
16.2 kw |
Winder power |
2*0.24 kw |
4*0.48 w |
4*0.48 kw |
Total motor power |
12.03 kw |
19.62 kw |
19.62kw |
Overall dimensions |
5100*900*1500 mm |
5100*1200*1600 mm |
5100*1800*1600 |
Weight |
1100 kg |
1300 kg |
1500kg |
Management meeting
Production
Exhibition
1. Give easy broken spare parts with machine.
2. Our technician will tell you how to deal with small problems.
3. If request, our technician can go to your place to solve problems.
1. The machine has been setted before leaving factory.
2. We will send some easy broken spare parts with the machine.
3. The min. order is 1 pc.
4.We have our own factory. If you want to invest or sell our machines in your market , we expect to cooperate with you.
