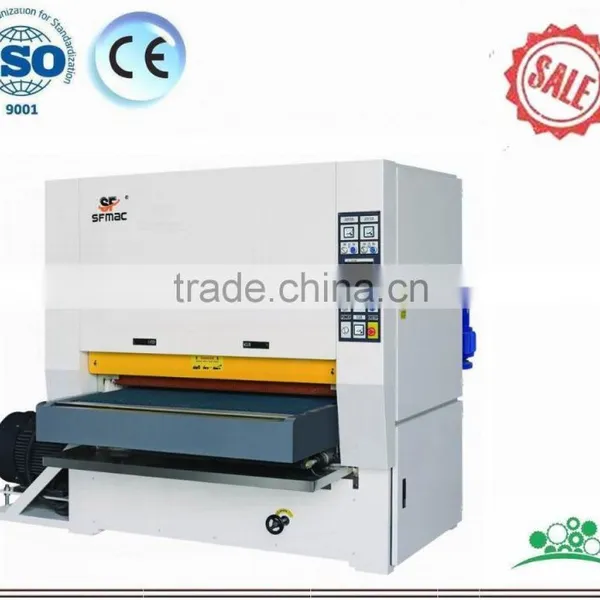

Metal sander machine metal sanding machine
Metal sander machine metal sanding machine
The series characters:
1. suitable for sanding and polishing MDF,Veneer,Marble,Fireproof board,Galvanized metal sheet.
2. has one head,two head,and three head three types.
3. sanding width between 400mm to 2200mm.
Characters:
1. Max. working width is 1300mm
2. Has two heads. Sanding and polishing
3. Feeding belt automatic entering
4. Protector for sanding belt breaking down and loosen
5. When power cuts, transmission bed descending automatically to protect the board safe.
6. Former sand frame is adjustable steel rollers, the fixed thick roller and sanding pad effectively combine
7. Elevating conveyor bed microcomputer controlled, small errors, fast and flexible
8. Light, electricity, gas integrated design and reliable operation
9. Advanced balancing testing fixed thick rolls, steel rolls and pulleys, makes the machine run more smoothly.
Metal sander machine metal sanding machine
Type: R-R1300 | |
Max. working width | 40-1300 mm |
Working thickness | 2.5-110 mm |
NO.1 Sanding belt speed | 20 m/s |
NO.2 Sanding belt speed | 18 m/s |
Min. processing length | 500 mm |
Sanding belt size | 1330*2200 mm |
Conveyor speed | 6-38 m/min |
Total power | 63.74 kw |
Working pressure | 0.6 Mpa |
Consumption of compressed air | 1.5 m3/h |
Collected dust air | 25-30 m/s |
Overall dimensions | 2700*2100*2100 mm |
Net weight | 3300 kg |

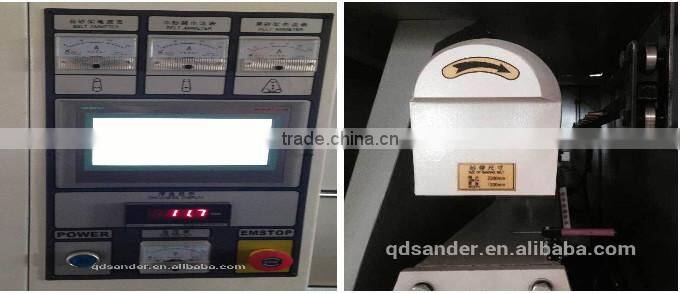

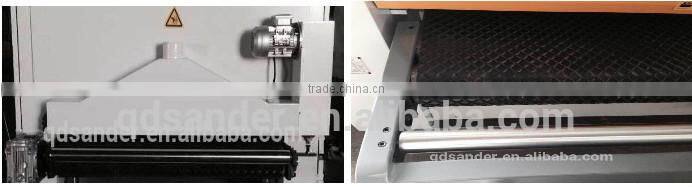

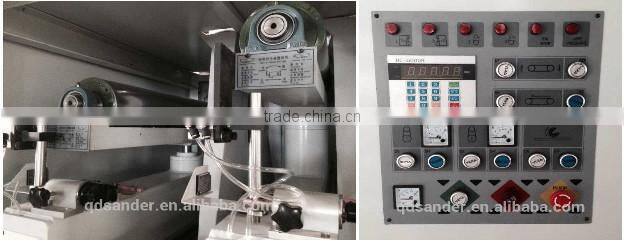

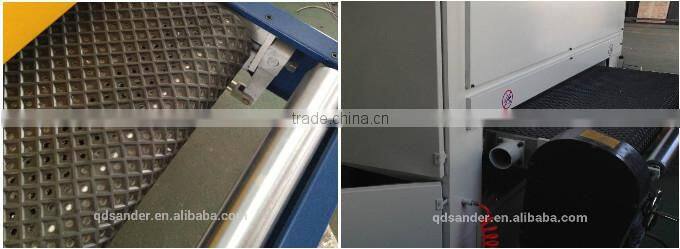

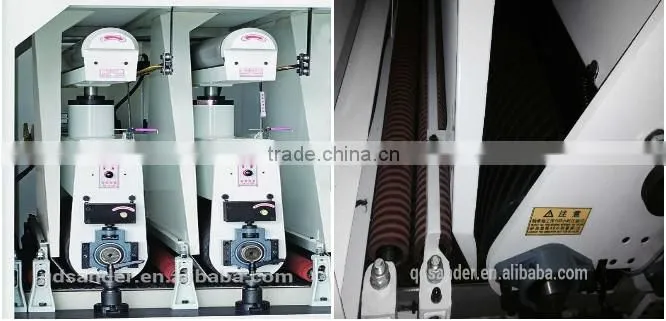

Details:

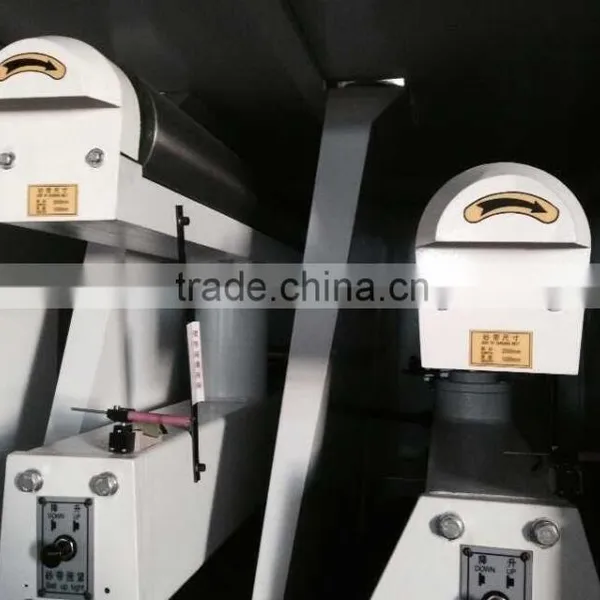

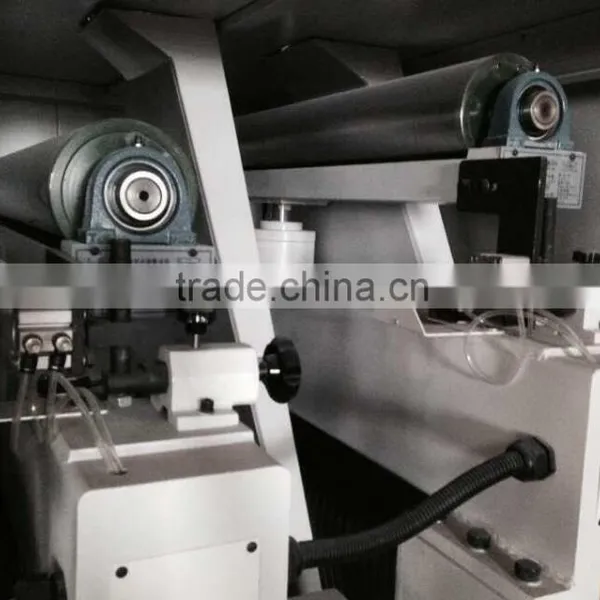

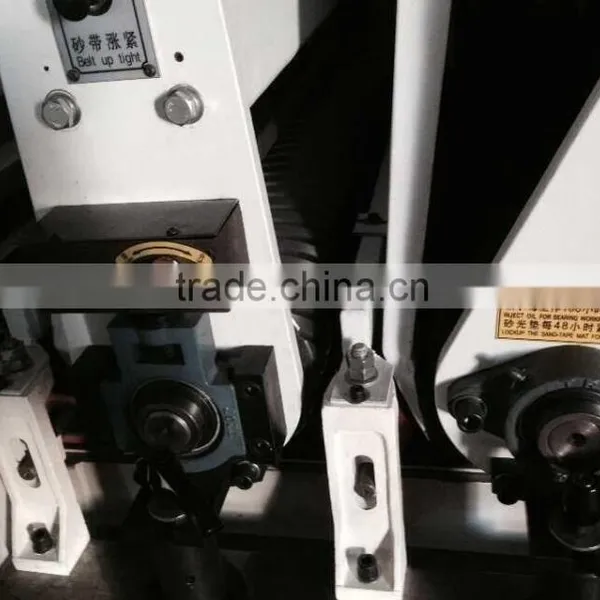

1. Has two head. sanding and polishing. 2. Front press roller use avoiding injuring workers
3. Better strong roller 4. Board digital thickness display
5. Photoelectric and double contact cylinder control 6. Emergency button for safety, it can stop at once
vibrating of abrasive belt along center.
7. with brush for better cleaning. 8. Strong and better friction force conveyor belt.
Additional options.
1. Plc control (optional) 2. Automatic air blower on first belt and second belt (optional)
3. Vacuum table (optional)
Standard spart parts
Optional spart parts
Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.
We are specialized in manufacturing woodworking machines for many years in Qingdao China.
with over 30 years of experiences in woodworking machine and metalworking fields, we have developed various series of woodworking machines, such as sander machine, sliding table saw,hot press,Hydraulic clamp carrier and so on. The SF brand sander is the famous brand in China Market,which includs wide belt sander, lacquer sander, water sander, double side sander and brush sander.
In order to supply high quality product and excellent services, we are continually improving our products with the latest technologies according to the market prevailing requirements. In the past years, all our products has got CE and ISO certificate.
Production meeting everyday morning
Production corner
Exhibiton
CE Certificate ISO Certificate
1. Give easy broken spare parts with machine.
2. Our technician will tell you how to deal with small problems.
3. If request, our technician can go to your place to solve problems.
1. The machine has been setted before leaving factory.
2. We will send some easy broken spare parts with the machine.
3. The min. order is 1 pc.
4.We have our own factory. If you want to invest or sell our machines in your market , we expect to cooperate with you.
