China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN

China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN thumbnail-1
China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN thumbnail-2
China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN thumbnail-3
China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN thumbnail-4
China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN thumbnail-5
China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN thumbnail-6
China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN photo-1
China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN photo-2

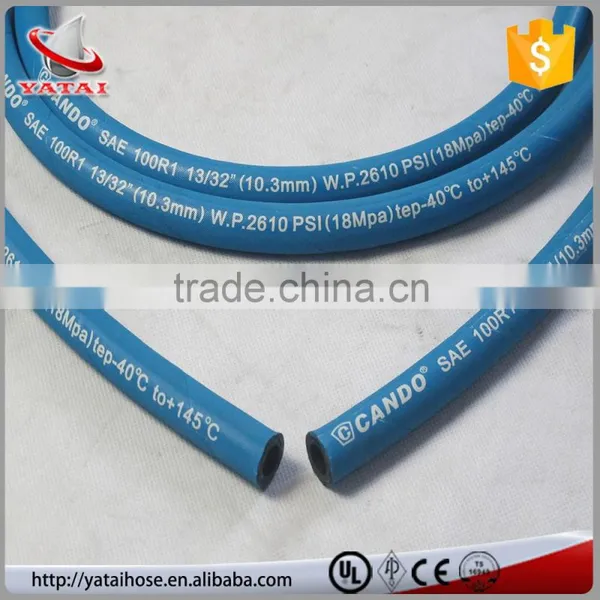

China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN photo-3

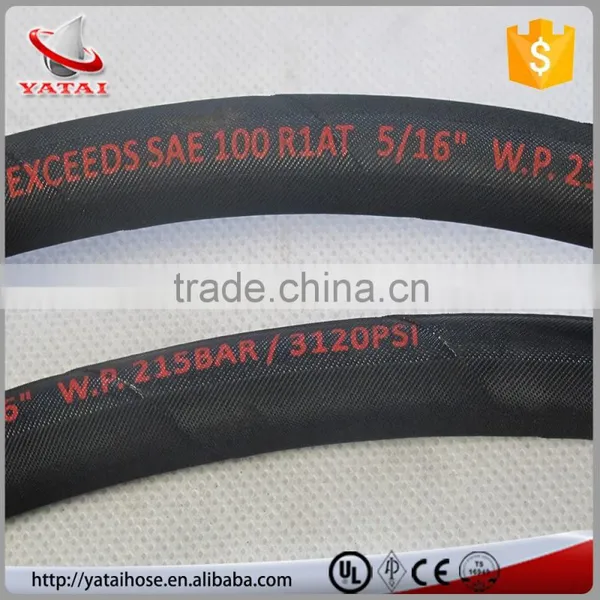

China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN photo-4

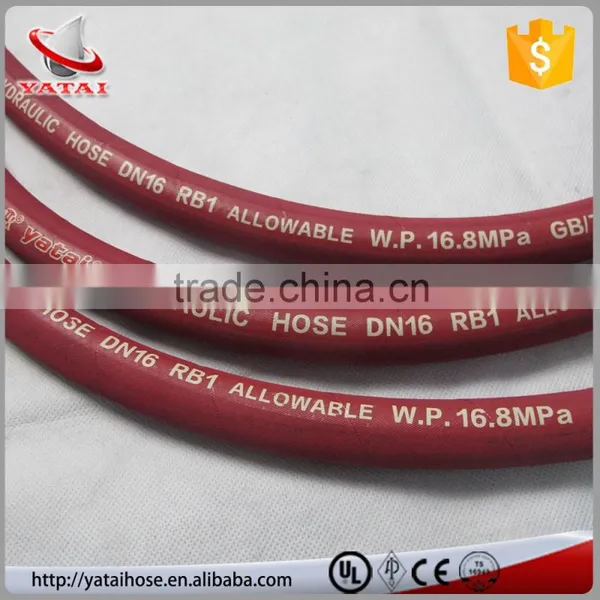

China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN photo-5
China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN photo-6
US$ 0.63 - 2.5 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
YATAI
Model Number:
6-102mm
Contact Supplier Request Quote Chat Now
Hengshui Yatai Especial Rubber Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name YATAI
Model Number 6-102mm

China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN

Product Description

China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN

R1 AT HYDRAULIC TUBE:Oil resistant synthetic rubber



rubber hose Reinforcement:One or two steel wire braided layer



rubber hose Cover:Oil, abrasion and weather resistant synthetic rubber. MSHA approved



rubber hose Temperature Range:-40° to 100°C (-40° to 212°F), petroleum base fluids intermittent to 125°C (257°F).



rubber hose Application:For medium pressure hydraulic oil lines, return lines, grease lines, water lines and power steering hoses.

                          Flexible Hydraulic Hose R1 AT/1SN (SAE 100R1AT, EN 853 1SN)



DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm mm MPa psi MPa psi mm kg/m metres
5 3/16 4.8 9.5 11.8 25.0 3630 100.0 14280 89 0.19 50/100
6 1/4 6.4 11.1 13.4 22.5 3270 90.0 12840 102 0.21 50/100
8 5/16 7.9 12.7 15.0 21.5 3120 85.0 12280 114 0.24 50/100
10 3/8 9.5 15.1 17.4 18.0 2615 72.0 10280 127 0.33 50/100
13 1/2 12.7 18.3 20.6 16.0 2320 64.0 9180 178 0.41 50/100
16 5/8 15.9 21.4 23.7 13.0 1890 52.0 7420 203 0.45 50/100
19 3/4 19.0 25.4 27.7 10.5 1530 42.0 6000 241 0.58 50/100
25 1 25.4 33.3 35.6 8.8 1280 35.0 5020 305 0.88 50
32 1 1/4 31.8 40.5 43.5 6.3 920 25.0 3600 419 1.23 20/40
38 1 1/2 38.1 46.8 50.6 5.0 730 20.0 2860 508 1.51 20/40
51 2 50.8 60.2 64.0 4.0 580 16.0 2280 635 1.97 20/40



Flexible Hydraulic Hose R1 AT/1SN (SAE 100 R2AT/DIN EN 853 2SN)



DN

Hose I.D

Wire O.D

Hose O.D

Working Pressure

Burst Pressure

Minimum Bend Radius

Weight

Length

inch

mm

mm

mm

MPa

psi

MPa

psi

mm

kg/m

metres

5

3/16

4.8

11.1

14.1

41.4

6000

160

23720

89

0.32

50/100

6

1/4

6.4

12.7

15.7

40

5800

160

22840

102

0.36

50/100

8

5/16

7.9

14.3

17.3

36

5250

140

20000

114

0.45

50/100

10

3/8

9.5

16.7

19.7

33.1

4800

132

18840

127

0.54

50/100

13

1/2

12.7

19.8

23.1

27.6

4000

110

15720

178

0.68

50/100

16

5/8

15.9

23

26.3

25

3630

100

14280

203

0.8

50/100

19

3/4

19.0

27

30.2

21.5

3120

85

12280

241

0.94

50/100

25

1

25.4

34.9

38.9

16.5

2400

65

9420

305

1.35

50

32

1 1/4

31.8

44.5

49.6

12.5

1820

50

7140

419

2.15

20 to 40

38

1 1/2

38.1

50.8

56.0

9

1310

36

5140

508

2.65

20 to 40

51

2

50.8

63.5

68.6

8

1160

32

4560

635

3.42

20 to 40





China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN

Flexible Hydraulic Hose R1 AT/1SN Processing Procedures:

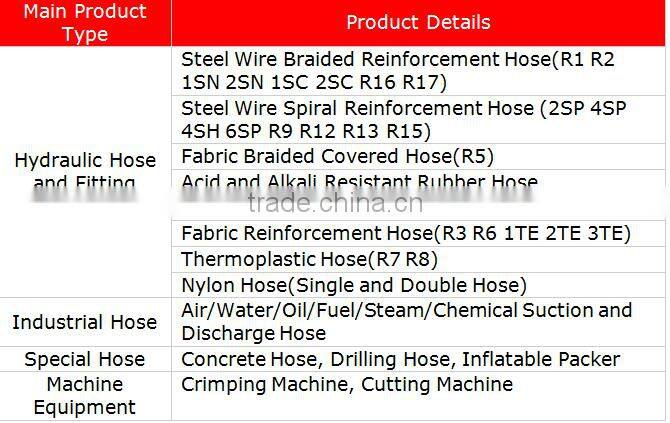

   Flexible Hydraulic Hose R1 AT/1SN Related Products:

     Flexible Hydraulic Hose R1 AT/1SN Equipment:

   Flexible Hydraulic Hose R1 AT/1SN Pictures:



China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SNChina Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN





Packaging & Shipping



    Flexible Hydraulic Hose R1 AT/1SN Feedback and Ceitification:

Flexible Hydraulic Hose R1 AT/1SN Material :

China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN

Company Information

China Manufacture High Pressure Wire Braided Flexible Hydraulic Hose R1 AT/1SN

HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTD is established in 2001 year.



HIGH QUALITY IS OUR COMPANY SOUL!!!



we specialized in rubber hoses for more than 15 years, there are near 100 workers and

technology staff .10 person with many years experience.

Italy VP high speed braided machine of 6 sets improve production capacity and quality .
