Big Diameter Composite Cargo Hose With Polyethylene Rope Lagging
Hengshui Yatai Especial Rubber Products Co.,LTD is established in 2001 year.Main production:
Hydraulic Hose,High Pressure Steel Wire Braided Hose,High Pressure Steel Wire Spiral Hose,
SAE & DIN Standard Rubber Hose, High Pressure Hose Assembly,LPG CNG Rubber Hose,
Color Rubber Hose,Steam Hose, Acid and Alkali resistant Rubber Hose, Special Rubber Hose,
Inflatable Packer and so on.Export to USA,UK,France,Italy,Korea,Russia,Brazil,Malaysia and so on.
Our products are not only reach National Standard,but also have passed ISO9001,ISO/TS16949 quality certification.
Big Diameter Composite Cargo Hose With Polyethylene Rope Lagging
SAE 100 R1 AT / DIN EN 853 1SN :
SINGLE WIRE BRAID HOSES (SAE 100R1AT, EN 853-1SN)
rubber hose Tube:
Oil resistant synthetic rubber
rubber hose Reinforcement:
One steel wire braid
rubber hose Cover:
Oil, abrasion and weather resistant synthetic rubber. MSHA approved
rubber hose Temperature Range:
-40° to 100°C (-40° to 212°F), petroleum base fluids intermittent to 125°C (257°F).
rubber hose Application:
For medium pressure hydraulic oil lines, return lines, grease lines, water lines and power steering hoses.
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 | 50/100 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 | 50/100 |
| 8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.24 | 50/100 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 | 50/100 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 | 50/100 |
| 16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 | 0.45 | 50/100 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 | 50/100 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
| 32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 | 20/40 |
| 38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 | 20/40 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20/40 |
Big Diameter Composite Cargo Hose With Polyethylene Rope Lagging

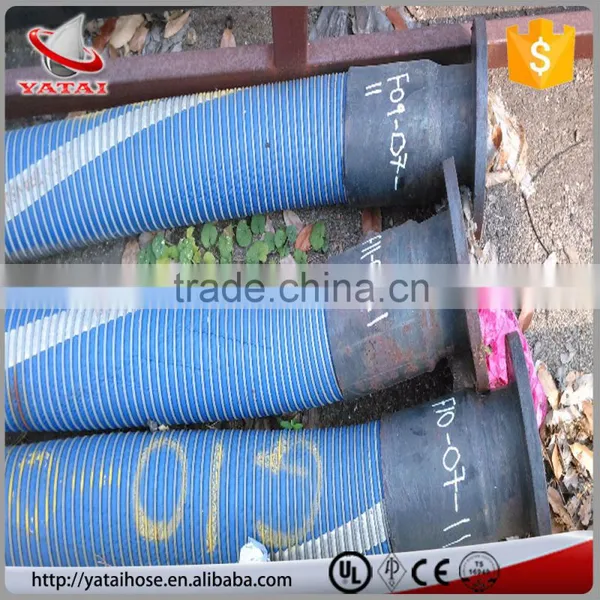

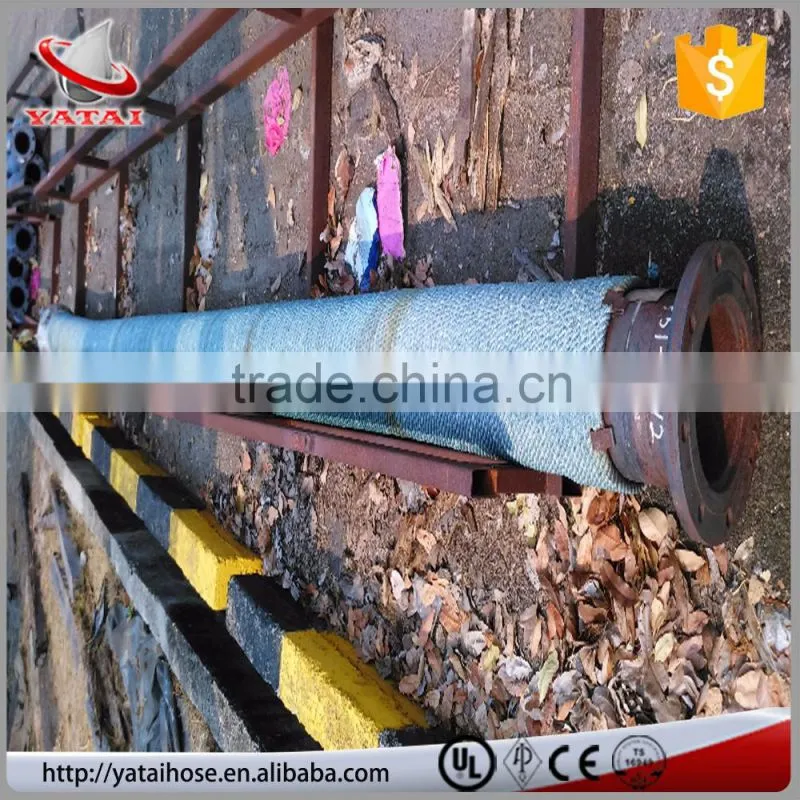

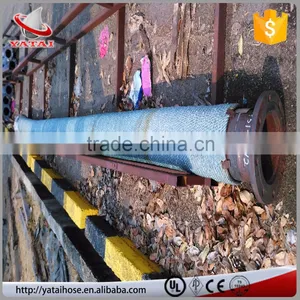

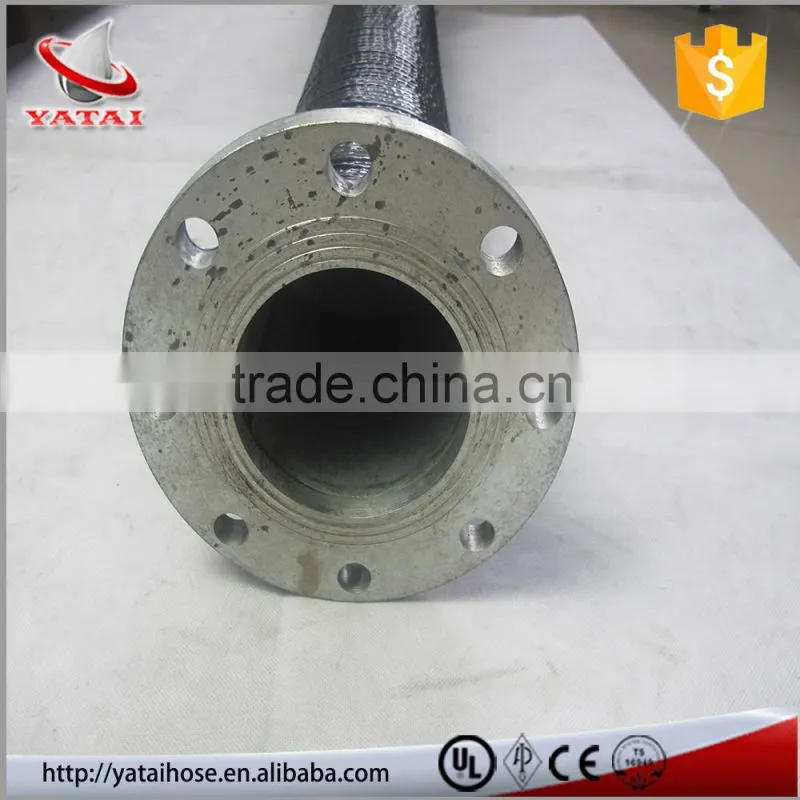

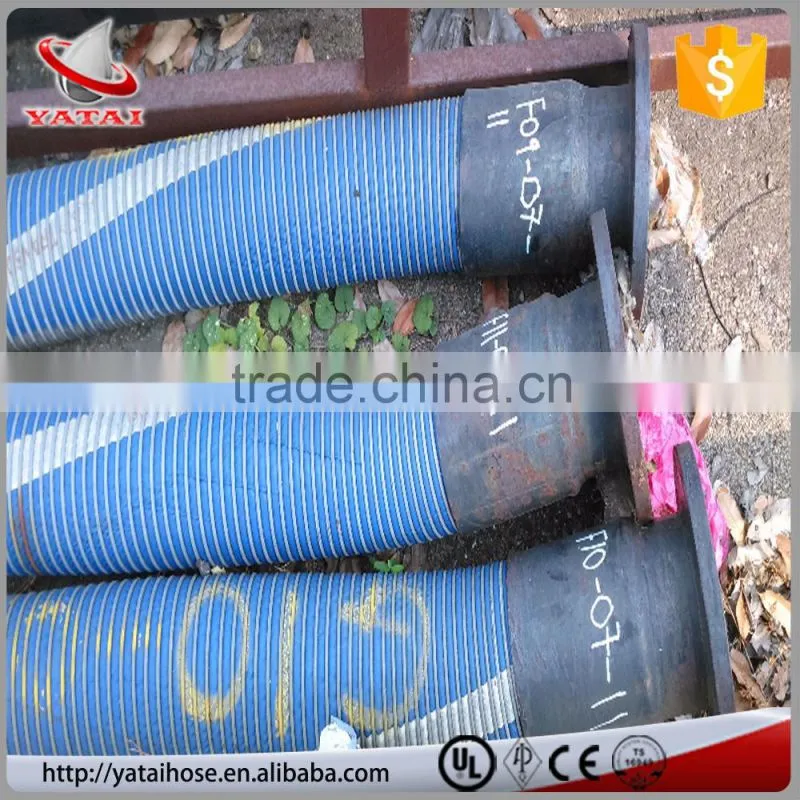

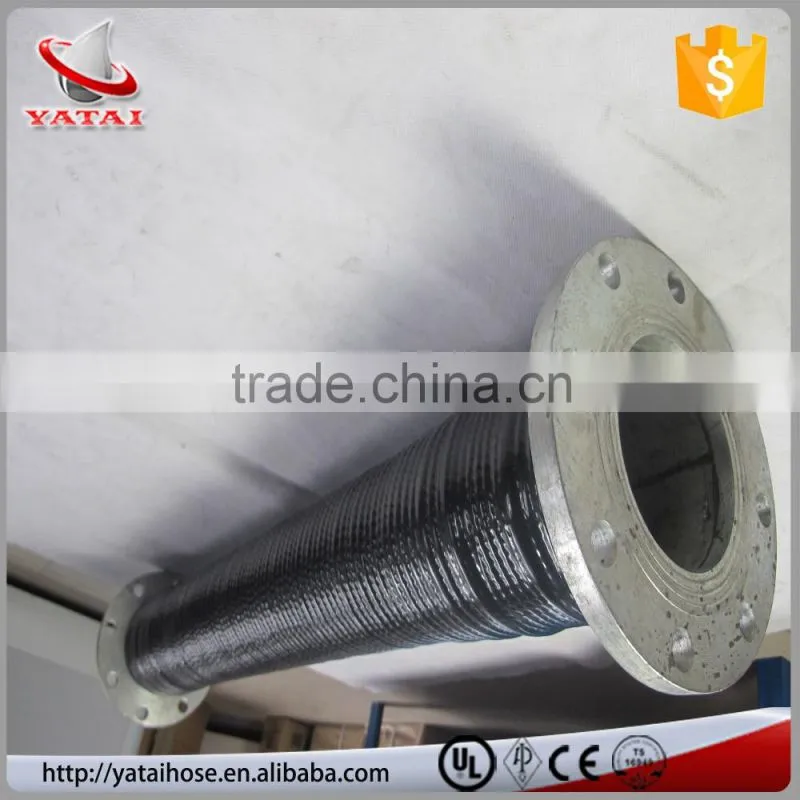

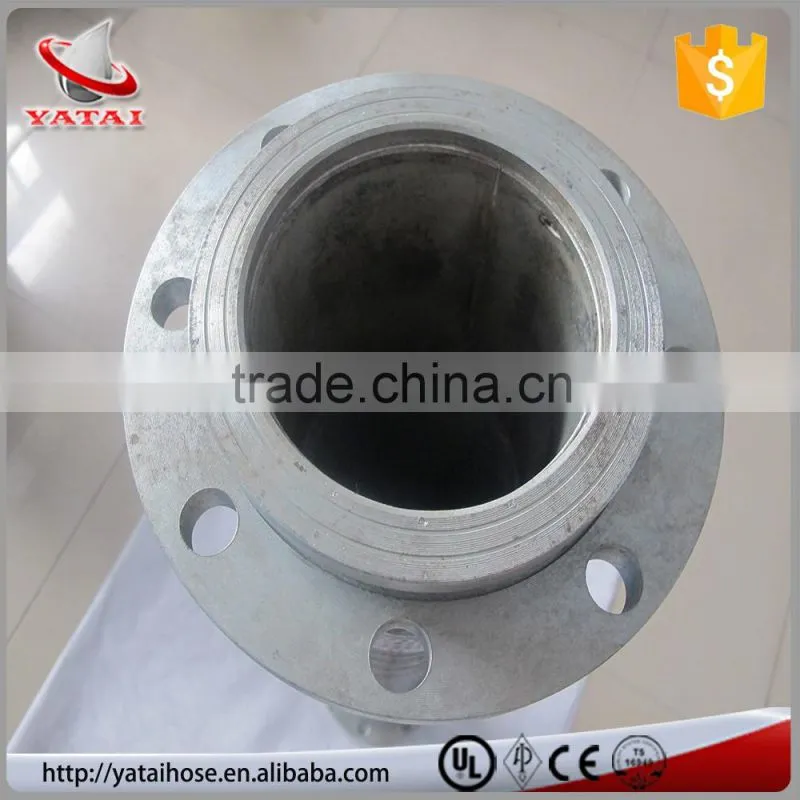

Hose Pictures:
Big Diameter Composite Cargo Hose With Polyethylene Rope Lagging
Hose Buyer: Big Diameter Composite Cargo Hose With Polyethylene Rope Lagging Export to All of the World:
Big Diameter Composite Cargo Hose With Polyethylene Rope Lagging Processing Procedures:
Big Diameter Composite Cargo Hose With Polyethylene Rope Lagging
Plastic weave belt, Wood Real, Pallet, or according to client's requirement
CONTACT DETAILS:
Any interests, pls give me a message. The add. is below.
