Home > Products > Hot press > plywood pre press macine/cold press machine/plywood machine BY814*8/400 ton

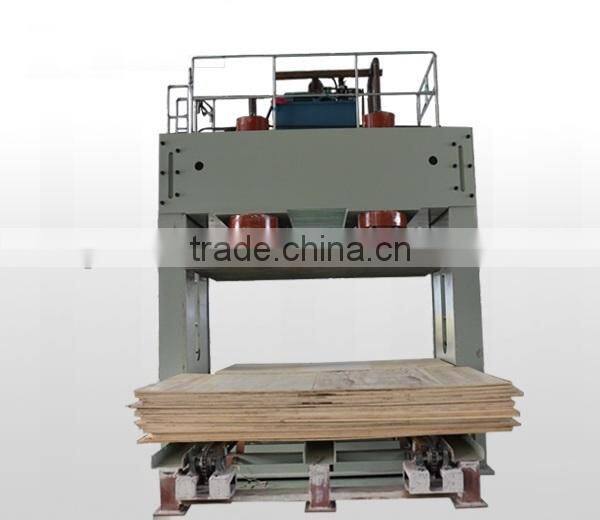

plywood pre press macine/cold press machine/plywood machine BY814*8/400 ton
- 5 Set / Sets per Month
- Qingdao port
- T/T
-
plywood pre pressm BY814*8/400 ton
-
plywood pre press machine/plywood oil machine BY814*8/400 ton
-
plywood pre press/wood door cold press BY814*8/400 ton
-
plywood cold press with rollers BY814*8/400 ton
-
400 ton plywood cold press machine BY814*8/400 ton
-
wood press machine plywood cold press BY814*8/400 ton
Product Details
| Condition: | New | Type: | Hot Press Machine | Place of Origin: | Shandong, China |
| Brand Name: | SEFE | Model Number: | BY814*8/400 | Voltage: | 380v |
| Power(W): | 16kw | Dimension(L*W*H): | 3500x2400x4650mm | Weight: | 17,000-18,000kgs |
| Certification: | CE,ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
in bulk
Product Description
plywood pre press macine/cold press machine/plywood machine BY814*8/400 ton
Pre-pressing machine is also called cold press, which has a large daylight. A pack of spread veneers,It is suitable for the forming and molding of veneer, rubber, PVC and resin objectsCapacity of pressure is optional by our customers.
Packing Details:High quality plastic sheeting with wireropr fixed, to ensure the transfering safe.
Model | BY814X8/500 ton | BY814X8/400 ton |
Nominal pressure | 5000kn | 4000kn |
Surface pressure | 1.3MPa | 1.3MPa |
Platen size | 2700x1370mm | 2700x1370mm |
Max. working stroke | 1000mm | 1000mm |
Net opening | 300-1300mm | 300-1300mm |
Press cylinder diameter and no. | 360mmx2 | 360mmx2 |
Lift cylinder diameter and no. | 80mmx2 | 80mmx2 |
Feeding conveyor speed | 6.78m/min | 6.78m/min |
Total motor power | 16.1kw | 16.1kw |
Overall dimension | 3500x2400x4765mm | 3500x2400x4650mm |
Weight | 18000kg | 17000kg |
1, Packaging in bulk.
2, Shipping within 20 days after deposit or original L/C at sight.
BASED ON MORE THAN TEN YEARS EXPORT EXPERIENCES IN WOODWORKING MACHINERY,WE OFFER A FULL LINE OF HIGH QUANLITY CHINA HOT PRESS,PRE-PRESS,SANDER,WOOD VENEER DRYER MACHINE.
