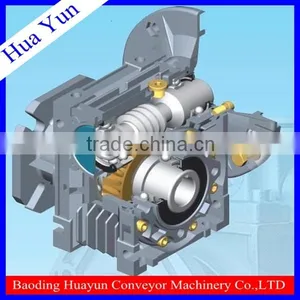

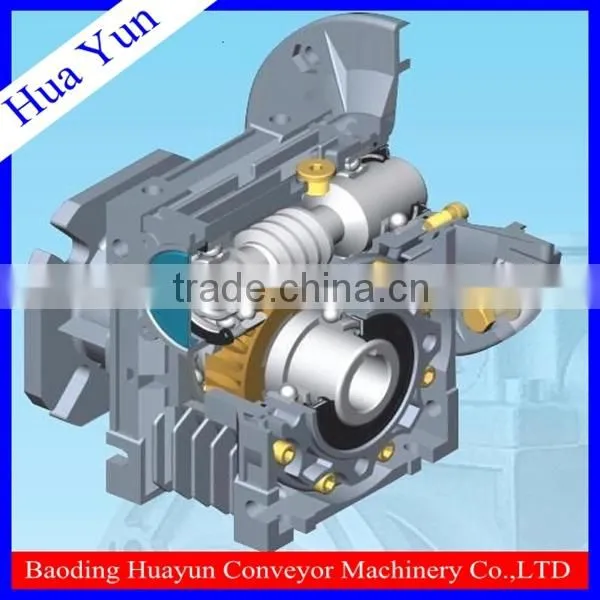

NMRV Series Speed Transmission Worm Reducer

NMRV Series Speed Transmission Worm Reducer thumbnail-1
NMRV Series Speed Transmission Worm Reducer photo-1
US$ 22.9 - 346.9 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Gearing Arrangement:
Worm
Output Torque:
2.7~1670NM, 2.7-1670NM
Rated Power:
0.06~15KW
Contact Supplier Request Quote Chat Now
Baoding Huayun Conveyor Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Gearing Arrangement Worm
Output Torque 2.7~1670NM, 2.7-1670NM
Rated Power 0.06~15KW
Input Speed 1400rpm, 1400rpm
Output Speed 14rpm~280rpm
Place of Origin Hebei, China
Model Number WPO
Brand Name Huayun

worm reducer

worm reducer's Features:

1.widely used in turbines, shaft liners and axletrees;good resistance to wear, with high precision

in dimensions,low noise, advanced centric running castings.

2.With air vent and high precision.

3.The structure is compact and the weight is large.

4.Packing: wooden cases or can be according to customer's requriements.

 NMRV series speed transmission worm reducer

DESCRIPITION



Model:

WPO 040-250

Ratio:

10,15,20,25,30,40,50,60

Color:

Depend on customer/Blue/ Silver White

Material:

Housing -- Aluminum

Worm Gear--Cooper(10-3 #)

Worm Shaft--20CrMnTi with carburizing and quenching,

surface hardness is 56-62HRC

Shaft-chromium steel-45#

Bearing:

RENBEN ,HRE

OIL Seal:

Double lip/NOK;CFW;TCS;NAK

Lubricant:

Synthetic & Mineral

Warranty:

18 months

Input Power:

0.40-33.2KW

Usages:

In industrial machine: Food stuff, Ceramics, chemical, as well as packing, printing, dyeing, woodworking, glass and plastics

MOQ:

10pcs

Samples Time:

1-3 days

OEM Accepted:



Can put customer logo

Certification:

CE,CCC,ISO9001





NMRV series speed transmission worm reducerNMRV series speed transmission worm reducer



notice of installation for worm reducer

1.1   The base-plate must be plane and stoutness and the base-plate must be screwed

down and shock proof.

1.2   The connecting shaft of prime mover, reducer and operation device must be coaxial installation.

1.3   The diameter tolerance zone of input and output shaft is H6, the holes of fittings

( such as couplings, belt-pully, sprocket wheel and so on) must properly mate the shaft,

which prevents bearing from breakage because of over-loose mate.

1.4   Drivers such as sprocker wheel and gear must be fitted close to bearings in order to reduce bending stress of hanging shaft.

1.5   While assembling motor of WPD reducer, it is necessary that proper amount of

butter applies to the warm shaft input hole and keyway, avoiding assembling too tightly

and rusting after using for a long time.

1.6   When ordering or using all kinds of WPD type, if the motor weight is binger than the common,supporting set is required.



notice of usage for  worm reducer

2.1 Before using,please check carefully whether the reducer modle, distance, ratio, input connecting method , output shaft structure, input and output shaft direction and revolving direction accord with required.



speed of input shaft:1500r/min

WP.WPK.WPW.WPWK(A.S.X.O.T.V)

Input Power(KW)



   RATIO



MODEL

10

15

20

25

30

40

50

60

40

0.4

0.33

0.26

0.24

0.22

0.16

0.14

0.12

50

0.65

0.52

0.40

0.37

0.34

0.27

0.24

0.20

60

1.00

0.82

0.65

0.59

0.54

0.45

0.40

0.32

70

1.60

1.35

1.10

0.96

0.82

0.67

0.61

0.52

80

2.20

1.78

1.36

1.28

1.20

0.90

0.80

0.75

100

3.60

3.10

2.60

2.35

2.10

1.68

1.30

1.00

120

5.20

4.35

3.50

3.25

3.00

2.20

1.90

1.50

135

9.75

7.85

6.00

5.50

5.00

3.69

2.89

2.30

147

10.71

8.43

6.18

5.71

5.23

3.84

3.09

2.52

155

12.80

9.90

7.00

6.53

6.00

4.40

3.61

3.00

175

17.30

13.60

10.00

9.13

8.30

6.18

4.85

4.07

200

22.60

18.20

13.86

12.75

11.67

8.78

6.71

5.58

250

33.2

27.40

21.60

20.00

18.43

14.00

10.43

8.62



FAQ

NMRV series speed transmission worm reducer



Any questions, Please feel free contact us!

NMRV series speed transmission worm reducer
