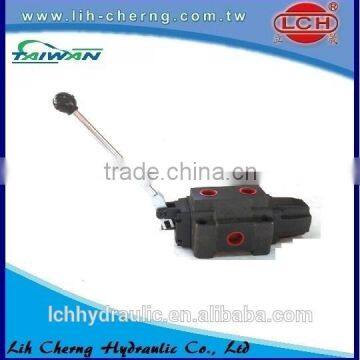

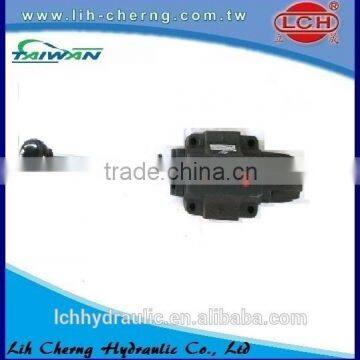

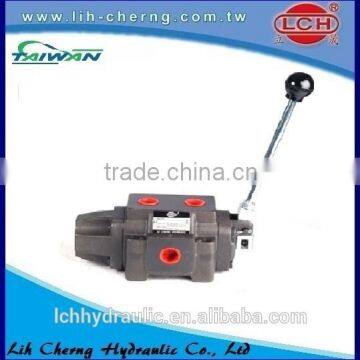

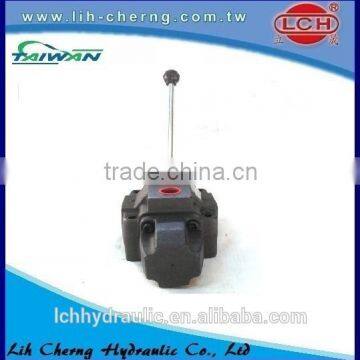

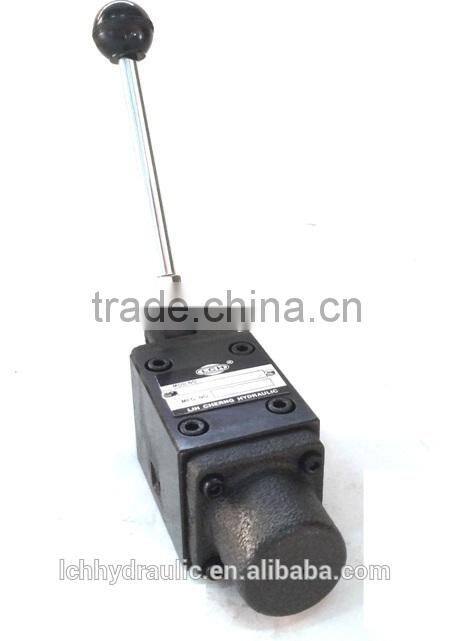

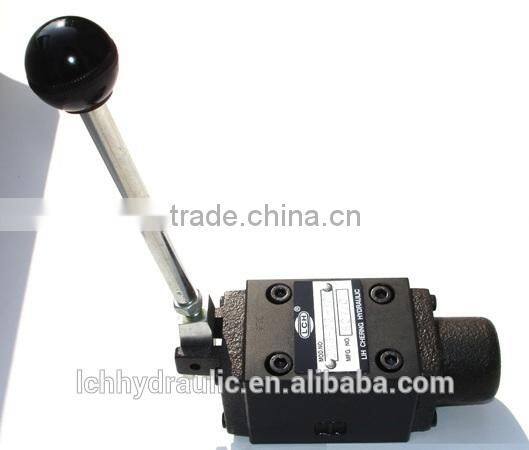

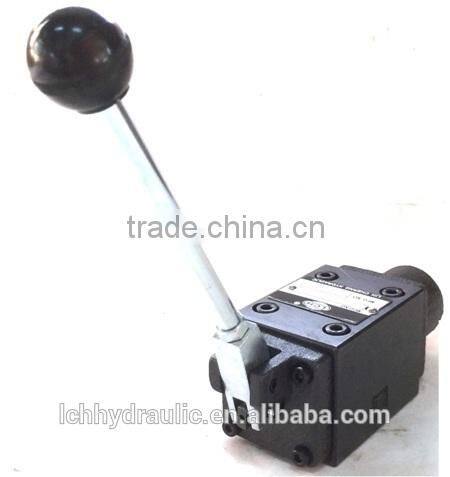

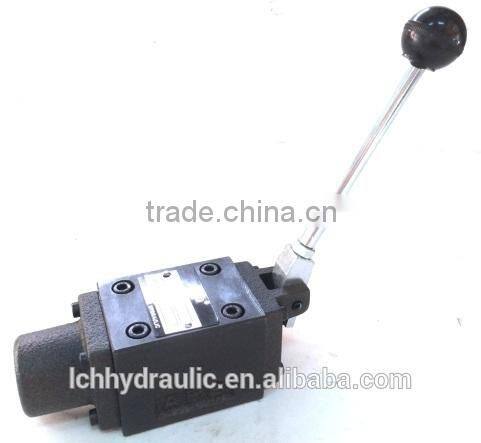

alibaba china supplier manual operated directional valve
Features:
- This valve is designed for shifting the spool position and change the direction of oil flow by manually. It is a simple and economical manually operated directional valve.
- There are two types of manually operated directional valves. One is spring centered and another one is steel ball centered. As per customers’ requirements and applications to choose suitable type for usage.
Specifications:
Model Numbers | Max. Pressure kgf/cm2 | Max. Flow l/min (All spool types) | Weight kg | Spool type of 3C3, 3C5, 3C6 Max. Flow l/min | |||
Thread type | Gasket type | ||||||
Thread type | Gasket type | ||||||
DMG-02 | - | 250 | 40 | 2 | - | 30 |
|
DMG-03 | DMT-03 | 60 | 4 | 4.5 | 40 |
| |
- | DMT-04 | 100 | - | 7 | 60 |
| |
- | DMT-06 | 200 | - | 11.2 | 150 |
| |
- | DMT-10 | 320 | - | 22 | 200 |
| |
Model Number:
DM | T | 03 | 3 | C | 2 |
Series Number
| Type of Mounting
| Port Size
| l | l | l |
Manually Operated Directional Valves | T: Thread type G: Gasket type | 02:1/4” 03:3/8” 04:1/2” 06:3/4” 10:1-1/4” | 2: Two pos. 3:Three pos. | C:Spring centered D:Ball centered | Spool Type
|
Company History:
Product process:
Q.How to request a manufacturing quote from LCH?
A.Give us a call or send us an E-mail (lch at .tw) with your purchase request.
Q.What are your quality control procedures?
A.LCH is equpped with high-tech, advaned cmputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason hy LCH is recognized as on the world class quality level.
Q.How are orders packed and shipped?
A. Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigatation).
Q. Could LCH offer OEM service?
A.Yes. LCH is able to offer OEM with customers' brand name and trademark onto the product.
Q.Do LCH products come with a warranty?
A.Yes.LCH offer 1-year product life guarantee without abusive usage on all purchases which begins with the bill of lading.
