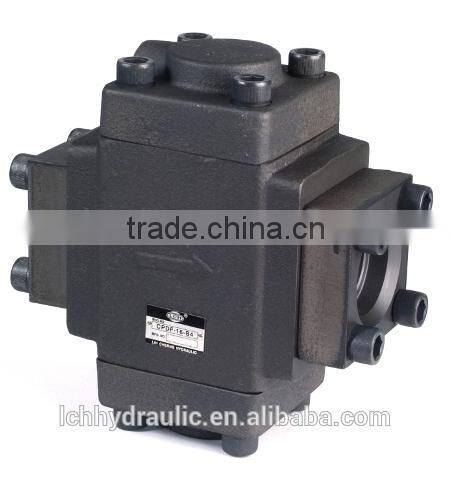

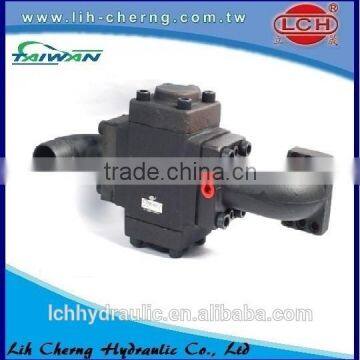

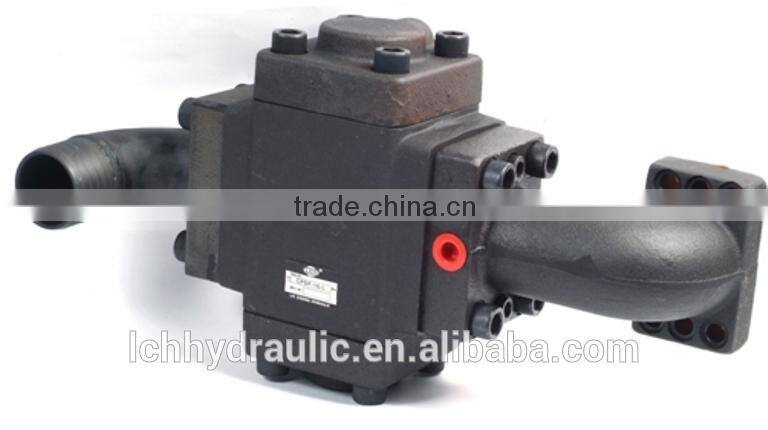

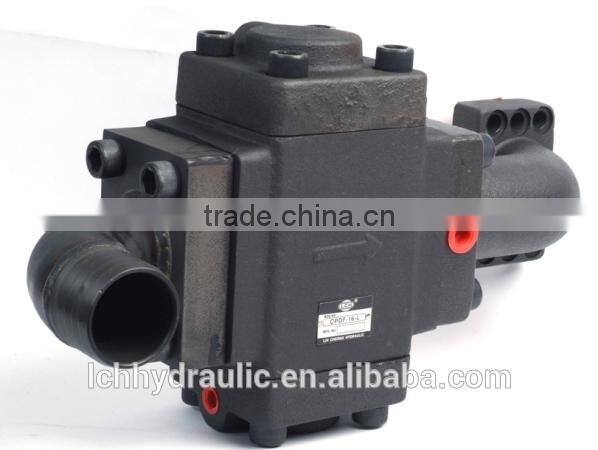

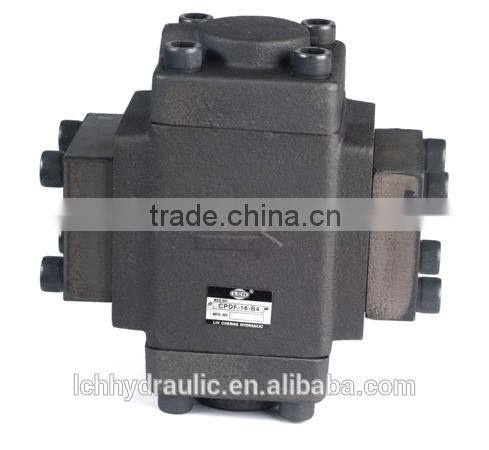

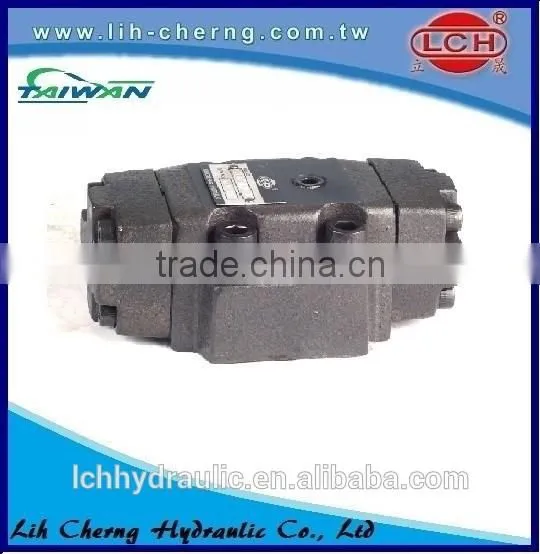

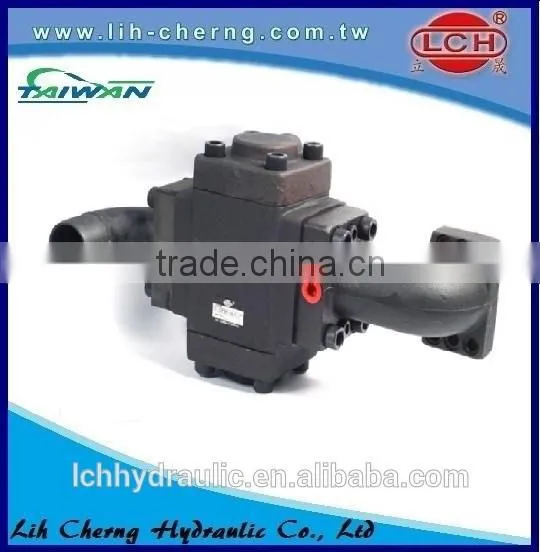

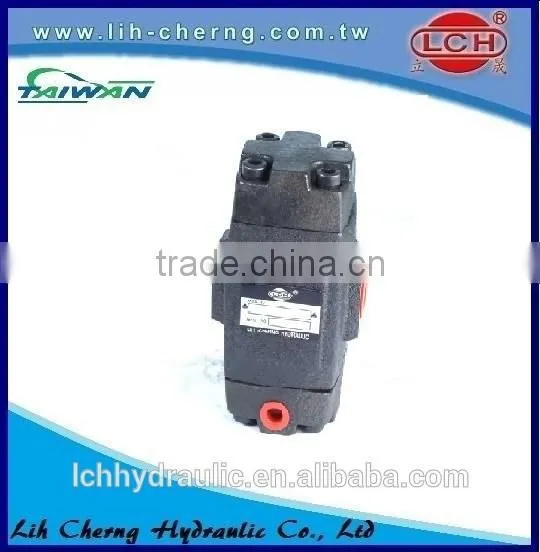

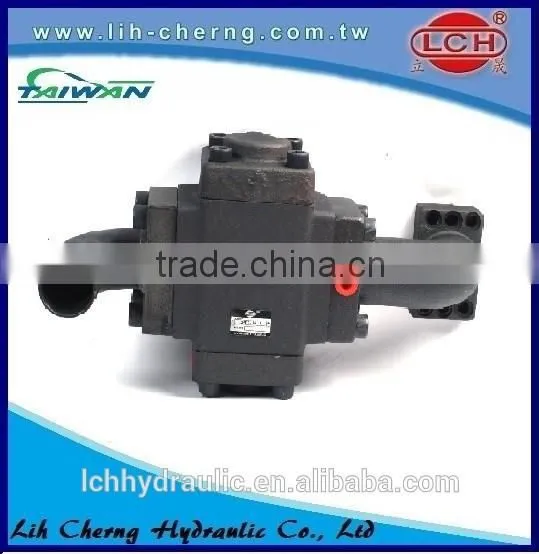

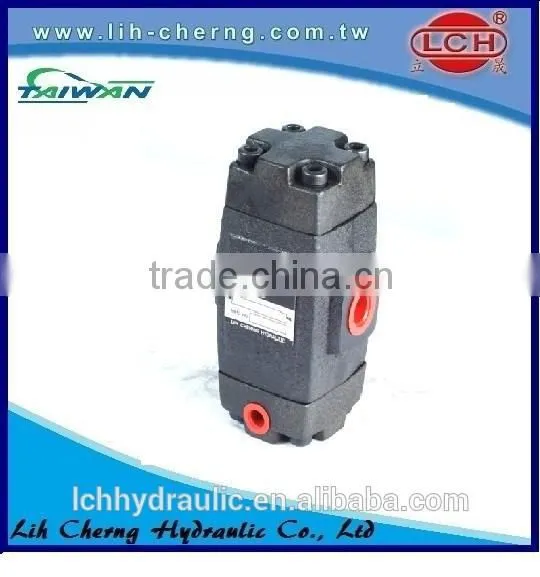

backhoe tractor flow control valve hydraulic
Features:
- This pilot controlled check valve, hydraulic control valve, allows flow in one direction and prevents flow in the reverse direction unless cracking pressure is required to open the valve so then it allow the flow freely reverse. If the cracking pressure is closed, then the internal pressure in the system could be maintained.
- Two-steps design of pilot controlled check valves has been interchanged which is able to operate via lower pressure so then it reduces the noisy occurred by impulse so the quality is more advanced.
Specifications:
Model Numbers | Rated Flow l/min | Max. Operated Pressure kgf/cm2 | Cracking Pressure kgf/cm2 |
Weight kg | ||
Thread type | Gasket type | CP*–T- | CP*-G | |||
CP*–T—03 | CP*-G-03 | 50 | 250 | A: 0.5kgf/cm2 B: 5kgf/cm2 | 3.9 | 4.3 |
CP*–T—06 | CP*-G-63 | 125 | 6.5 | 7 | ||
CP*–T--10 | CP*-G-10 | 315 | 11 | 10.8 | ||
Model Number:
CP | * | G | 06 | A | 3 |
Series Number |
| Type of Mounting | Port Size | Cracking Pressure | Optional codes |
Pilot Operated Check Valves | D: Two-Steps None: One Steps | T: Thread type G: Gasket type | 03:3/8” 06:3/4” 10:1-1/4”
| A: 0.5kgf/cm2 B: 5kgf/cm2 | 3:External pilot, external drain 4:External pilot, internal drain |
Company History:
Product process:
Q.How to request a manufacturing quote from LCH?
A.Give us a call or send us an E-mail (lch at .tw) with your purchase request.
Q.What are your quality control procedures?
A.LCH is equpped with high-tech, advaned cmputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason hy LCH is recognized as on the world class quality level.
Q.How are orders packed and shipped?
A. Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigatation).
Q. Could LCH offer OEM service?
A.Yes. LCH is able to offer OEM with customers' brand name and trademark onto the product.
Q.Do LCH products come with a warranty?
A.Yes.LCH offer 1-year product life guarantee without abusive usage on all purchases which begins with the bill of lading.
