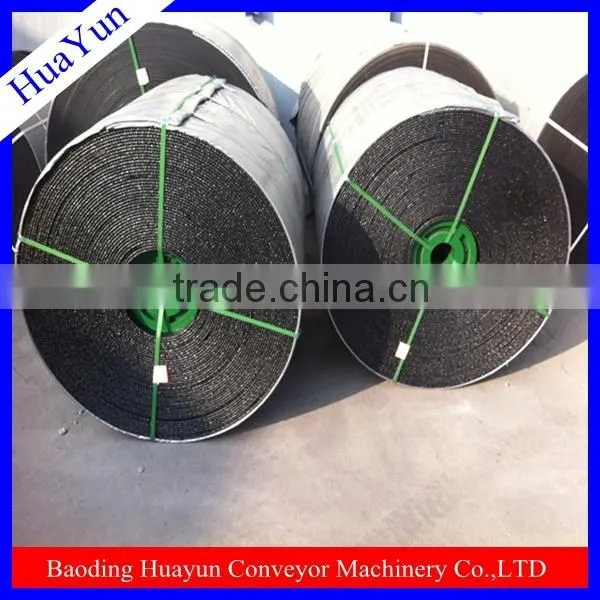

PVG rubber conveyor belt
1.performance of PVG rubber conveyor belt
PVG rubber conveyer belt is made from the whole belt core via dipping and plastifying
in polyvinyl chloride (PVC) dipping agent or sulfuration. It features largely in the high
strength, large freight volume and stable conveyance performance. Besides, it is fire
retardant, anti-static, shock resistant, wearable and corrosion resistant.
2.Usag of PVG rubber conveyor belt
It is mainly applicable for the underground well haulage of coal mines, and also the conveyance of materials for metallurgical and chemical industries. The whole core fire-retardant conveyer belt is divided into 2 types.
PVC type conveyer belt's upper and lower layers are PVC coating cover, single-sided tape thickness: ≥1.0mm; PVG type belt's upper and lower layers are nitrile rubber and PVC,
single-sided tape thickness: 1.5mm-4.5mm.
PVC type conveyer belt's inclined angle: <16°;
PVG conveyer belt's inclined angle: <20°.
Type and technical parameter of PVC conveyor belt:
Standard MT914-2008 |
Safety factor 10 (Breaking strength *1/10) |
|||||||
The Slope <16°C | ||||||||
|
Standard type |
Degree |
Breaking strength ≥,N/mm |
Tensile yield ≥,% |
Advising Mindiameter of Transmission Drum |
||||
Longitudinal |
Transverse |
Longitudinal |
Transverse |
|||||
680S |
4th |
680 |
265 |
15 |
18 |
320 |
||
800S |
5th |
800 |
280 |
400 |
||||
1000S |
6th |
1000 |
300 |
500 |
||||
1250S |
7th |
1250 |
350 |
500 |
||||
1400S |
8th |
1400 |
350 |
630 |
||||
1600S |
8th |
1600 |
400 |
750 |
||||
Type and technical parameter of PVG rubber conveyor belt
Standard MT914-2008 BS3289 HG2805 |
Safety factor 10 (Breaking strength *1/10) |
|||||||
Standard type |
Degree |
The slope <20°C |
||||||
|
Breaking strength ≥,N/mm |
Tensile yield ≥,% |
Recommend minimum roller diameter |
||||||
Longitudinal |
Transverse |
Longitudinal |
Transverse |
|||||
680S |
4th |
680 |
265 |
15 |
18 |
400 |
||
800S |
5th |
800 |
280 |
500 |
||||
1000S |
6th |
1000 |
300 |
630 |
||||
1250S |
7th |
1250 |
350 |
750 |
||||
1400S |
8th |
1400 |
350 |
750 |
||||
1600s |
9th |
1600 |
400 |
750 |
||||
Safe function:
Function Name |
The alcohol combustion |
The propane combustion |
Electrical conductivity |
The roller rub |
Standard value |
Average value≤3S, List value≤10S (Have no cover gum) |
a)≥600 |
≤3X108Ω |
≤325°C |
|
Average value≤5S, List value≤15S (Have no cover gum) |
b)≥50mm;≤140°C≤1250mm |
Have no Mars |
3.Fabric of PVG rubber conveyor belt's produce process
PVG rubber conveyor belt Produce process
1.Certificate of our PVG rubber conveyor belt
2.Testing Equipments
Factory Display
Any more information, please feel free contact us!
