What is a Thin Client?
A thin client is a computing device that’s connected to a network. Unlike a typical PC or"fat client" that has the memory, storage and computing power to run applications and perform computing tasks on its own, a thin client functions as a virtual desktop, using the computing power residing on networked servers.
They typically have just enough processing power, information and parts to access and use the computing resources of a server. The thin client can’t run applications or store data or documents on its own; it functions as an interface to convey your keystrokes and connect to the applications, documents, data and storage on networked servers, where the actual work is done.
Advertisement
Most thin clients run Web browsers and/or remote desktop software, such as Microsoft Terminal Services or Citrix XenApp, so you see the familiar browser or desktop environment that you’re used to.
With thin clients, you run the desktop environment on the server, and remotely display the desktop screens on the thin clients. You need to manage this on the server side with what’s called a virtual desktop infrastructure (VDI) — software that creates the desktop images, stores them on servers and sends them over the network to the thin clients.
Both desktop and mobile thin clients are available from a wide range of manufacturers. Some such as Wyse, specialize in thin clients, while others, such as Dell and HP provide thin clients as part of a larger client device portfolio.

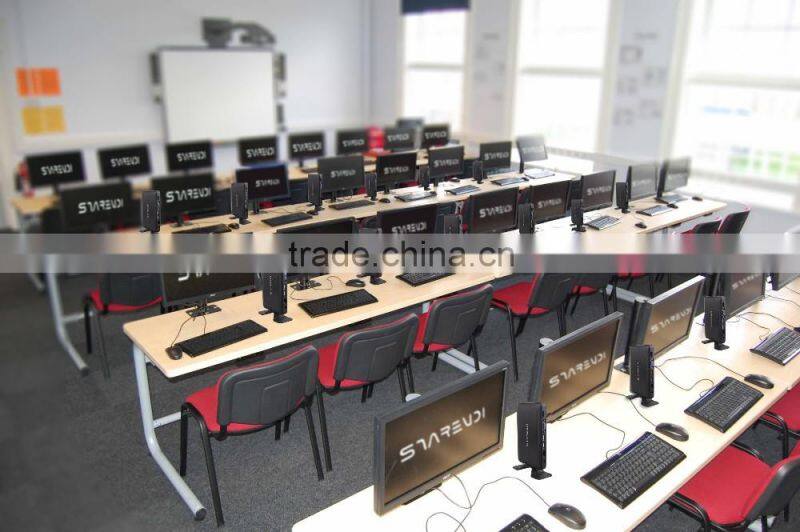

Thin Client X3,turn 1 PC into 2,3,4.....100 users!
Sharevdi X3 Working Principle
SAVINGS AND BENEFITS
- 90% on maintenance cost as compared to regular CPU due to SOC (system on chip)
- 90% on power consumption cost due to 5V/2A adapter as compared to regular 400’w SMPS
- 60% on cost as compared to regular computer CPU box price
- Space Saving as it can be mounted behind any LED / LCD screen or on any Wall / Table
- Security | Data centralization | Easy administration and management | Increase productivit
The Strong functions for X3:
*For office software,Such as browsing webpage.MS software,the operating speed is very fast and stable as host PC.
*It can support instant communicate tools.The microphone works GREAT (only with WIN7/2008),Such as Skype calling,MSN,Yahoo,TM etc…
*Support local streaming video when connecting with server.(all OS)
*RDP 7.1, 32bit color depth(WIN 7/2008),If XP OS,support 24bit color depth.
*Support WIN 7/XP/2008/Vista/2000/2003/2011/2012LINUX etc.

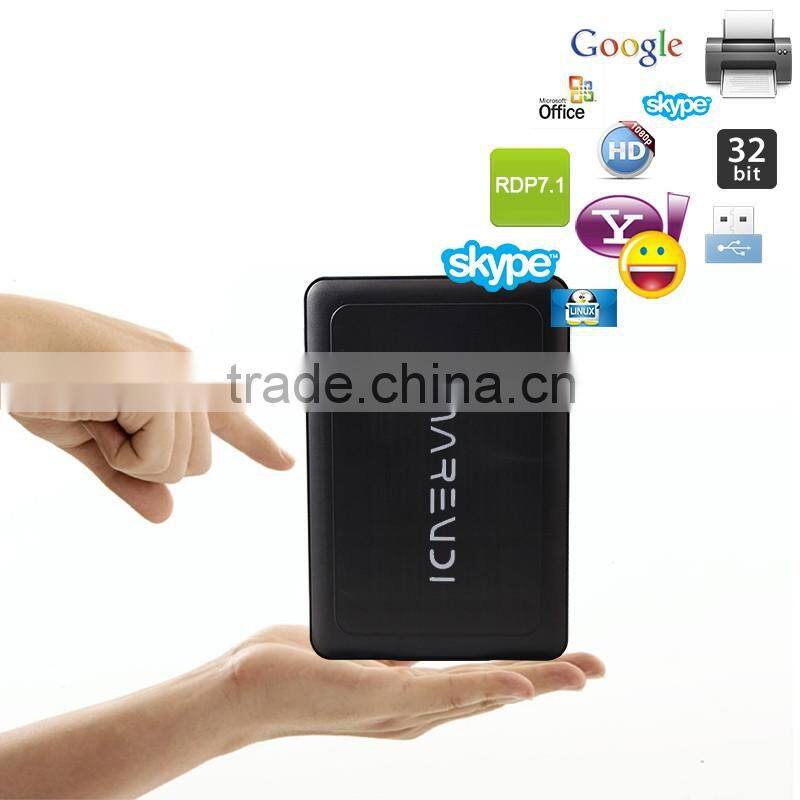

Spec |
X3 |
|
Framework |
ARM-A9 |
|
Processor |
Dual Core 1.5GHz |
|
RAM |
1GB |
|
Graphics Chips |
Graphics Card Type MALI400 1080P |
|
OS |
Embedded linux kernel |
|
Video |
VGA resolution |
800*600/1024*768/1366*768/1440*900/1280*1024 |
HDMI resolution |
1280*720/1920*1080(MAX) |
|
USB port |
USB2.0 port(×4) |
|
Video |
1080P HD |
|
Upgrade |
Firmware Update |
|
Physical Dimensions (mm) |
164×116×32MM |
|
Weight(G) |
200 |
|
Power supply |
DC 5V/2A |
|
Energy consumption |
Static Power less than 5W,Maximum Power less than 7.5W |
|
Video |
Hardware-accelerated video support for most media formats |
|
Protocol |
RDP 7.1 |
|
External port |
HDMI, VGA, USB*3, RJ45, Power supply port,Switch port |
|
Working Temperature |
-20℃ ~50℃ |
|
WIFI |
Optional |
|
