Specifications
1.Automatic PVC label Cutting Machine sheet cutting machine to cut the PVC heat shrink label2.used in packing bottles.
pvc shrink sleeve making machine
NO.1 machine

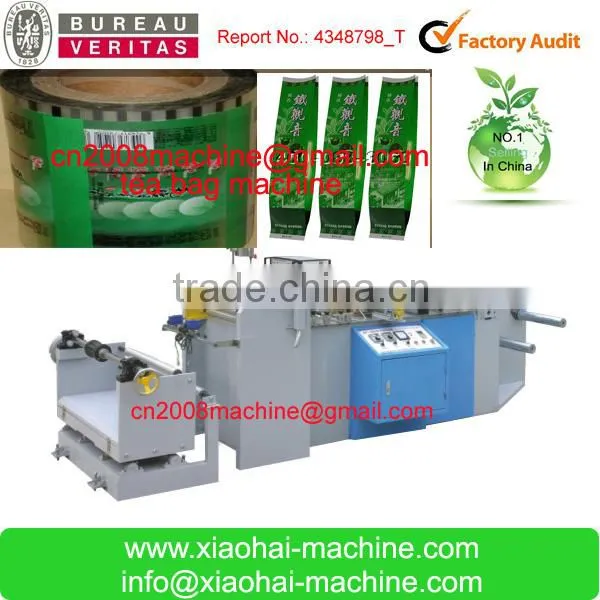

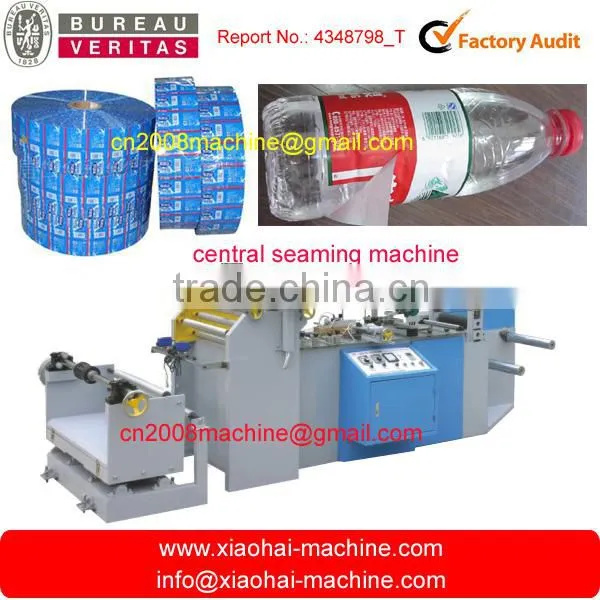

HZ300 HIGH SPEED PVC SHRINK SLEEVE MAKING MACHINE
APPLICATION |
HZ300 High speed PVC shrink sleeve making machine is specialized in sealing PVC,PET etc. sheet film to be sleeved roll label.(like beverage bottle label) |
|
| ||
PARAMETER |
Raw material |
PVC,PET,PET-G SHRINKABLE FILM |
Film thickness |
20-80 um |
|
Max. unwinding diameter |
Φ450mm |
|
Max. unwinding width |
60-600mm |
|
Center sealing precision |
±0.3mm |
|
Max. rewinding diameter |
Φ700mm |
|
Max. rewinding width |
280mm |
|
Max. sealing speed |
300m/min |
|
Rewinding tension range |
5N-50N |
|
Total machine power |
3.5kw |
|
Voltage |
380V 50hz China.(Depend on customer) |
|
Measurement |
3700mm*1500mm*1750mm(L*W*H) |
|
Weight |
1Ton |
|
| ||
FEATURE |
Unwinding system |
1. 3inch airshaft |
2.Edge Position Controlling System | ||
3.Automatic Unwinding tension controlling system | ||
|
|
|
Pump gluing system |
ntrolled by PLC |
|
2.Gluing quantity controlled by pump | ||
3.Machine stop ,gluing getting back ,no pollution on film | ||
|
|
|
Rewinding system |
1.3inch airshaft 2. Automatic Rewinding tension controlling system |
|
|
|
|
| ||
Flash light for inspection keeping the same speed with machine | ||
|
Usage: 1.This machine is to cut all kinds of packing material to be sheet before they used to pack the goods,such as drinking package,candy packing film,wine bottle packing,tape,paper etc. 2.This machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,also the machine is with photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc. |
| Specification: |
| Model No. | QP-350 |
| Max.Width of Sealing & Cutting | 330mm |
| Length of Sealing & Cutting | 600mm |
| Speed of Bag-making | 500pcs/min |
| Power of Main Motor | 1.1kw |
| Weight of Machine | 600kg |
| Machine Dimension(LxWxH) | 2100×700×1000mm |
|
Remark: We also have wider width machine,if you want to make special length and width,please feel free to contact us.we will provide you details.thanks.... |
