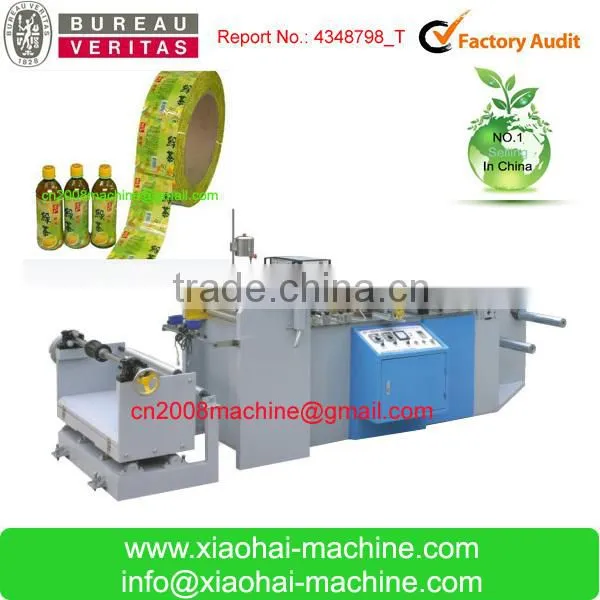

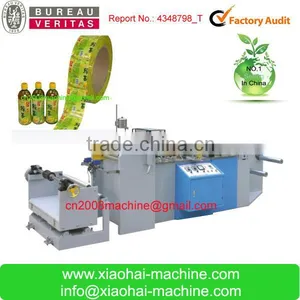

Help CenterLow Speed PVC PET Shrink Sleeve Center Seaming Machine For Bottle
Related Products
-
PVC Shrink Film for Label PrintingUS$ 2.23 - 2.23MOQ: 300 Kilograms -
PVC PET Shrink Sleeves Sheet Cutting Machine for Bottle ,battery PackagingUS$ 5,000 - 8,000MOQ: 1 Set
-
PVC PET Bottle Label Gluing MachineUS$ 1 - 2MOQ: 1 Set
-
High Speed PVC PET Shrink Sleeve Center Gluing Seaming Machine For Small or Big Water Bottle Head Cover Also Quality ChoiceUS$ 1 - 1,111MOQ: 1 Set
-
Pvc Shrink Film Blowing Machine for Printing Grade FilmUS$ 1 - 2MOQ: 1 Set
sleeve gluing machine is specialized in center sealing PVC,PET etc. sheet film to be sleeve in roll
AFTER SEAMING ROLL
WE ALSO HAVE ECONOMY TYPE,SPEED IS 80METER PER MINUTE AS FOLLOWS:
Model No. |
ZF-300 |
Max.Width of Material |
300mm |
Max. Speed |
80m/min |
Total Power |
2.5Kw |
Weight of Machine |
700kg |
Machine Dimension(mm) |
2820x1200x1100 |
we also have high speed machine with automatic glue pump as follows:
Model No.: |
HZF-300 |
Sealing width |
280mm |
Sealing speed |
300m/min |
Power |
380V 50Hz |
Total power |
3.5kw |
Weight |
1000kg |
Measurement |
3180x1450x1550 mm |
The machine is with EPC,with automatic glue system,with PLC,with tension control
Specifications
~To form sleeve from thermo-sensitive sheet
~Using glue for the center seaming
~Used for shrink sleeve label making
APPLICATION OF OUR PVC SHRINK SLEEVE SEAMING MACHINE:
It is mainly for forming the shrink sleeve from shrinkable material. After changed into sleeve, it will be rewinded in roll. The roll type shrink sleeve can be cut into short sleeve or directly used in Labelling&Shrinking Machine.
MAIN SPECIFICATION OF OUR PVC SHRINK SLEEVE SEAMING MACHINE:
Applicable film: Shrinkable PVC, PET, PET-G, etc.
Film thickness: 20-80um
Unwind maximum diameter: 450mm
Unwind width:60-500mm
Central welding accuracy:±0.3mm
Rewind maximum diameter:Φ750mm
Rewind maximum width:250mm
Maximum central sealing speed:300m/min
Tension control range at rewind:5n—50n
Tension accuracy:±3n
Total power:3.5KW
Power supply:380v 50Hz
Machine size(L x W x H):3700×1500×1750mm
Machine weight:about 1 ton
