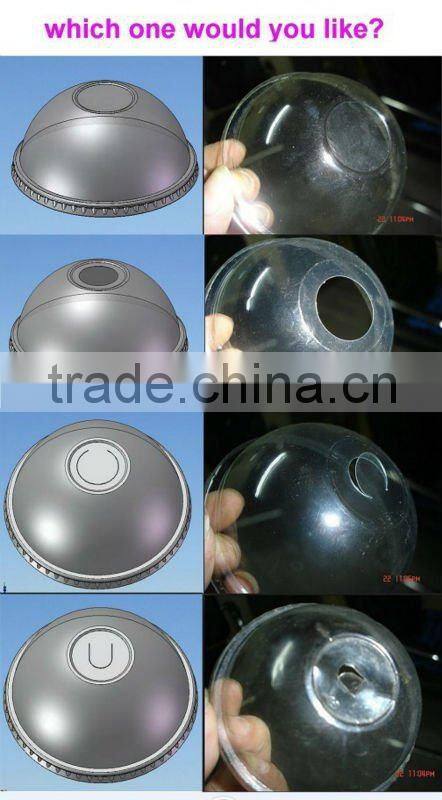

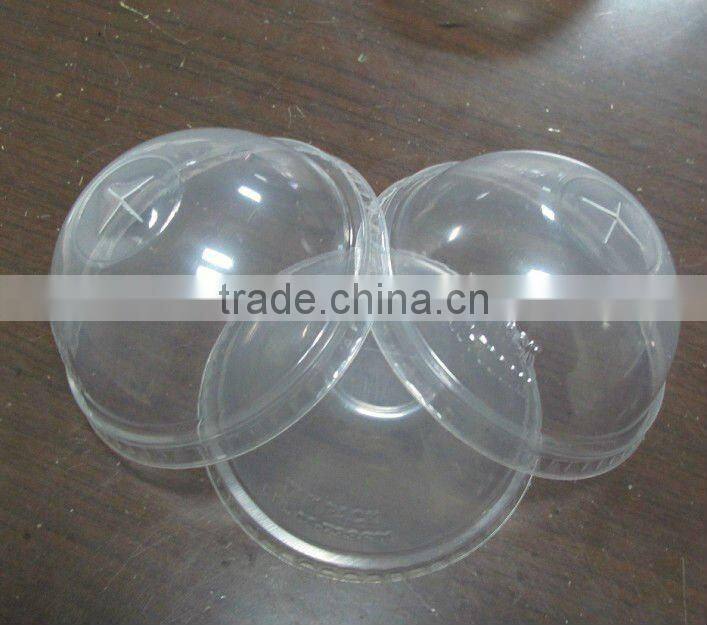

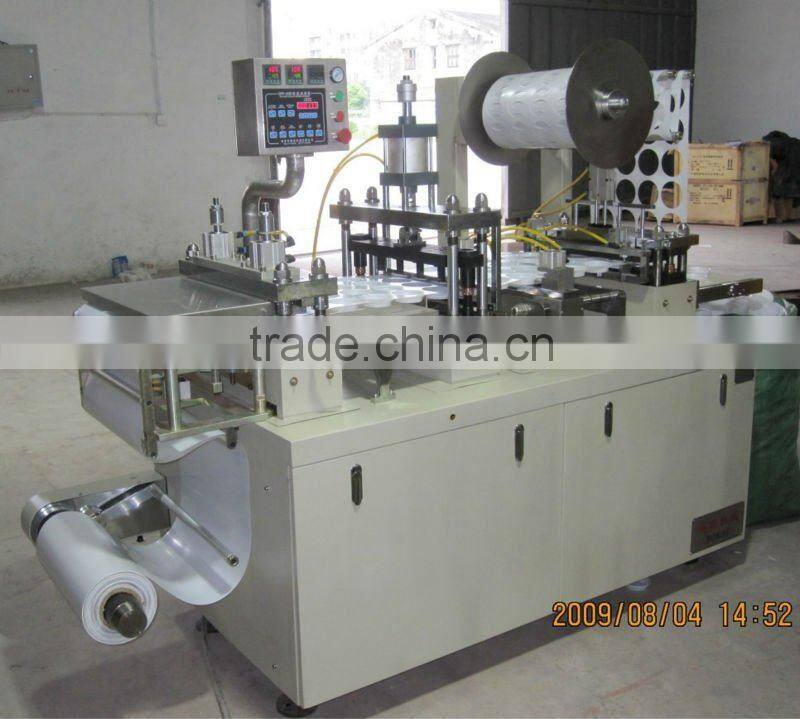

HAS VIDEO paper coffee cup and plastic cup lid forming machine for dome lid,flat lid with cross

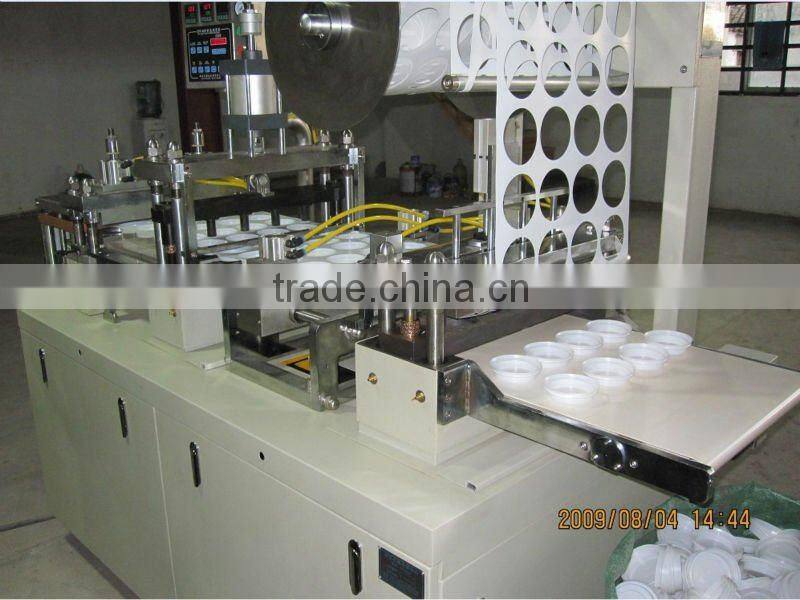

paper cup lid forming machine :

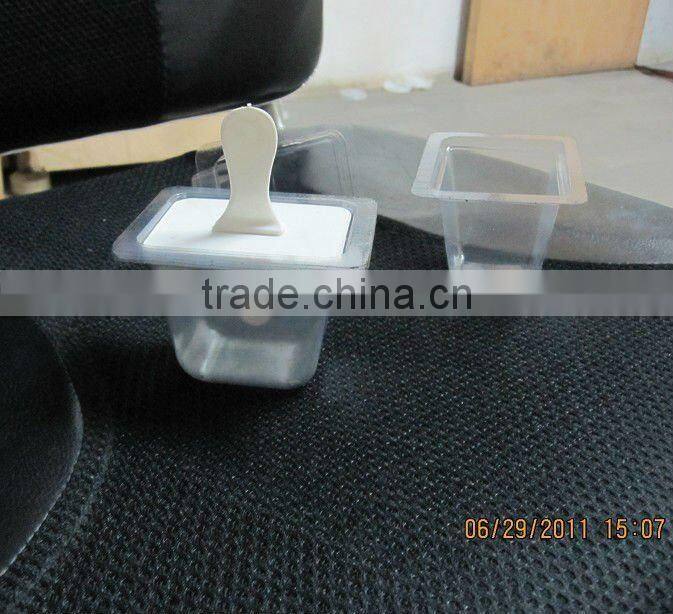

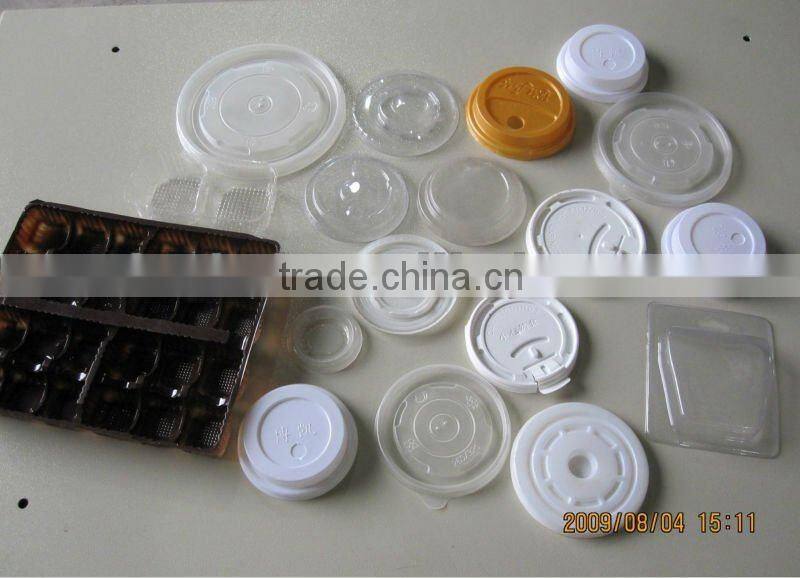

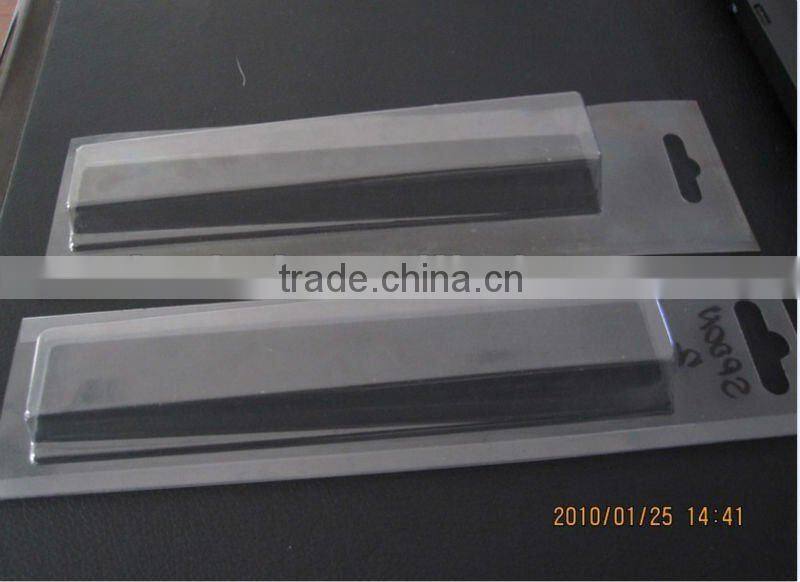

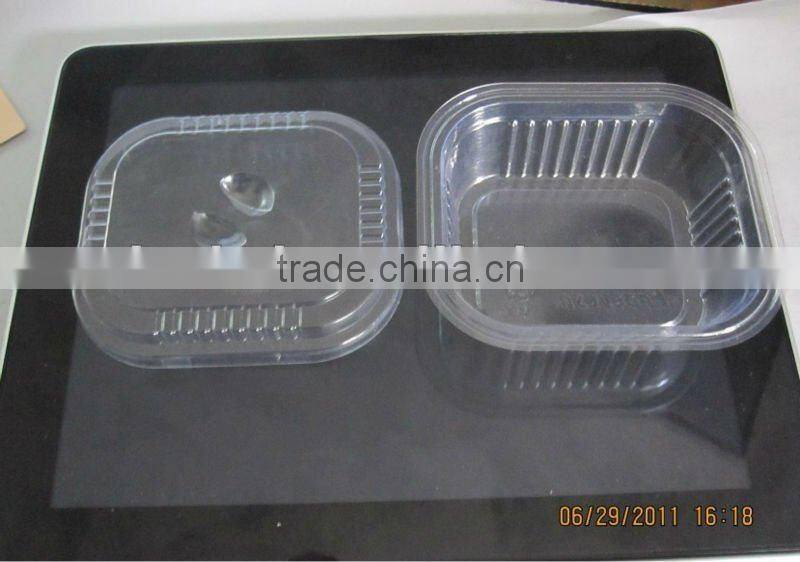

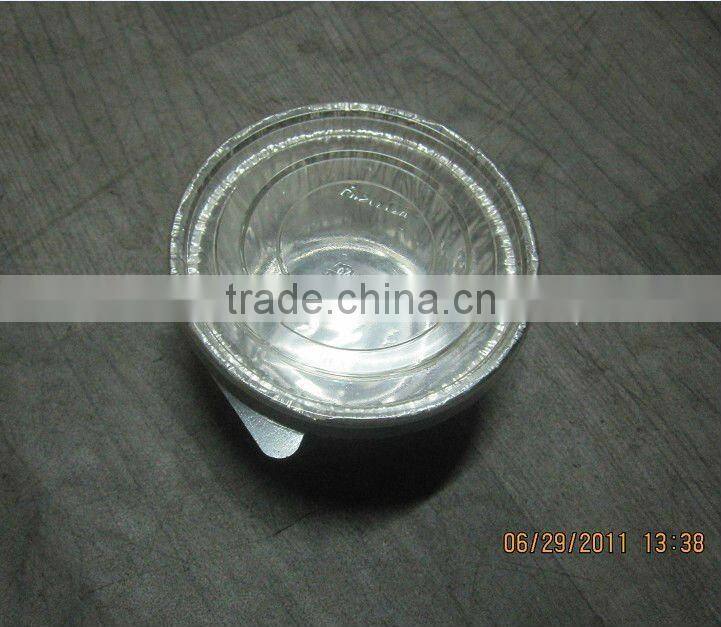

Applicable Object: PS/PVC/PET Plastic cup lid,Hardware tray,food tray,pharmaceutical tray etc.
Main features
1. Compact structure, smooth moving, convenient operation and easy maintenance.
2. Infinitely variable frequency speed regulation, PLC circuit control panel.
3. Adjustable route, mould changing more easily.
4. It adopts manipulation grip to feeding, accurate and reliable synchronously.
5.Designing all mould according to customers’ requirements
Technical Parameters:
Speed | 15-32 times/min |
Route adjustable scope | 40-180mm |
Material width | <430mm |
Max. forming width | 400mm |
Max. Forming depth | Normal model 35mm Deepen model 55mm |
Upper and lower heating power | 2.2kw(×2) |
Motor power | 1.5kw |
Power | Three-phase four-wire 380V 50HZ(220V 60HZ)4.5KW |
Pressure of water supply | 0.2MPa |
Water consumption | 0.3m3/h(Tap water or recycle water) |
Pump volumetric flow rate | ≥0.2m3/min |
Air pressure | 0.5-0.7MPa |
Overall dimension | 2400×800×1560mm |
Packing size | 2150×1000×1750mm |
Weight | Normal 850kg Deep model 1000kg |
we also have PLASTIC CUP AND CONTAINER production line:
1.MX-700L plastic sheet extruder:use to produce PP,PS sheet from raw material.
2.CK660-B thermoforming machine:feeding PP,PS sheet in this machine to produce cups,plates and other plastic container.
3.curling machine:curling the edge of cup. It’s according to your sample.
4.cup stacking machine:use to stack the cup automatically. also you can choose worker to stack the cups.
5. F650 grinder/crusher: it is used for recycle the waste sheet.
6.Mixer: mixing the new material and the recycle material
oling tower: the sheet extruder MX-700L and MX660-B thermoforming machine running need the cool water for working.
8. Plastic cup lid making machine: use to produce cup lid.
9.cup printing machine:use to print picture/design on the cup.
10. counting and packing machine:use to counting and packing the cup in plastic bag. also you can choose worker to count and pack the cups.
11. Air compressor:extruder and thermoforming machine and stacking machine running need the air for working.
products:
Customer Bought This Machine,Also Have Interesting To Buy Following Machines:
1. PP PS Sheet Extruder To Make Sheet In Roll For Cup Making Machine
2. PP PS PET Cup Forming Machine ( Cup and Plate Ect )
3. Automatic Cup Stacking Inline Machine
4. Economy Type Cup Printing Machine
5. Luxuary Type Plastic Cup Printing Machine
6. Plastic Cup Counting And Packing In Bag Machine
7. Cup lid Making Machine
