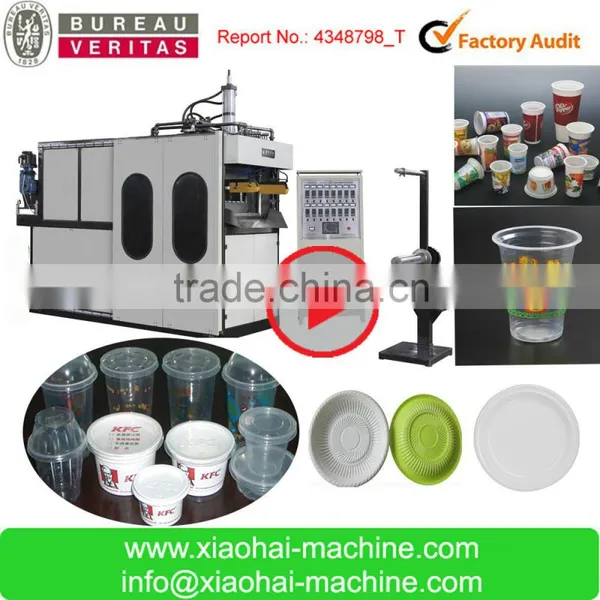

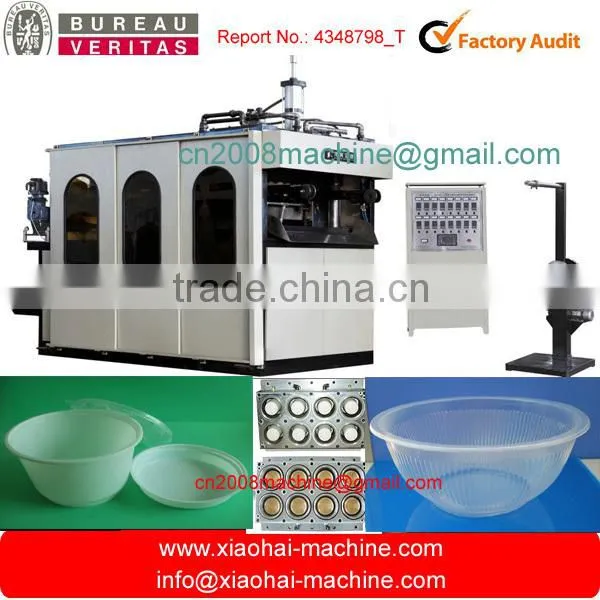

Disposable Plastic Plates And Cups Making Machine
Machinehas two function:
1.Making round plates, and which can works all by itself. it combines the material feeding , heating, drawing, forming and cutting transporting into one process.
2. Making square plates and other shape cups which can be cutting with page. It combines the material feeding, heating. drawing, page cutting and transporting into one process.
Main technical parameters:
Sheet Materials |
Hard Sheet PP.PS.PVC.ABC |
Sheet Width |
400-630mm |
Sheet Thickness |
0.25-2.5mm2 |
Max.forming Area |
620×300 |
Max.forming depth |
160mm |
Max.height of cup |
120mm |
Forming Pressure |
0.4-0.8mMpa |
Productivity |
420 pcs/min 25-35(stroke/min)(14 pieces per stroke) |
Rated Heating Power |
55kw |
Starting Power |
7.5kw |
Total Weight |
4.5(ton) |
Water Temperature |
30 |
Overall Dimeensions |
3000 × 1800 × 2500mm3 |
Travel Length Adjustable |
100-400mm |
