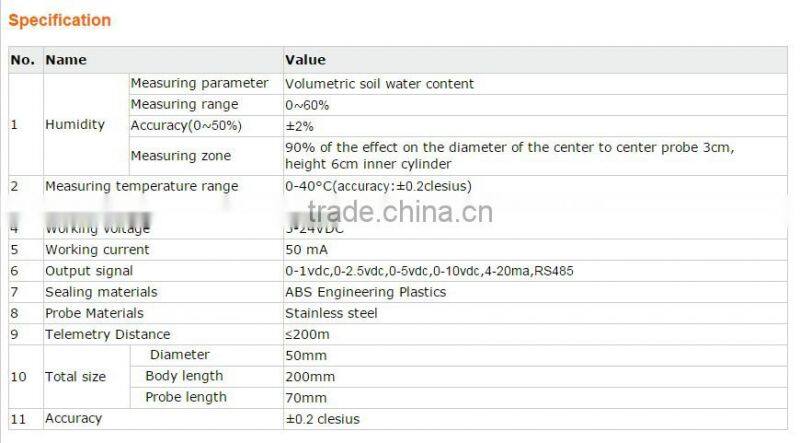

Specifications
soil moisture analyzer1.Analog and digital output
2.Humidity and temperature sensor
3.High stability

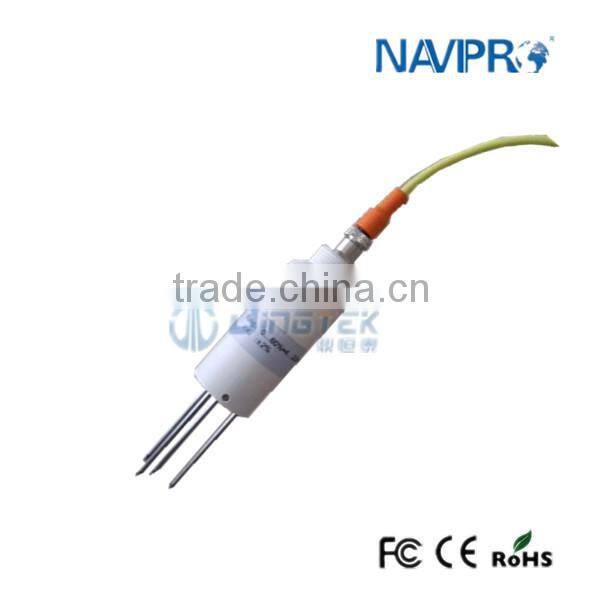

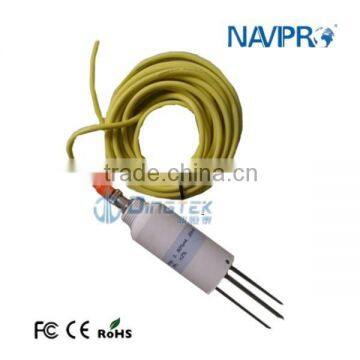

DS200 Digital analog output soil temperature electronics soil moisture analyzer
Overview
DS200 type soil moisture sensor have the features of high stability, easy operate and maintenance , etc.
It can measure the soil moisture content and temperature simultaneously , calibrated through digital
single-chip microcomputer which have analog and digital output, with high measuring precision, good quality.
We select ABS engineering plastics as sealing material in order to ensure the strength and support life .
TR - 3100 type sealing with the protection rank of IP68, which make it can be used into the soil for a
long time, protect them from corrosion. auto temperature sensor oem auto temperature sensor oem
Feature
soil moisture analyzer
- High stability, easy installation and maintenance operations, ABS plastic.
- Sealing, buried in the soil for long-term use, from corrosion.
- Soil moisture sensor output signals using a standard current loop transmission technology to anti-interference ability, transmission distance, high accuracy, fast response.
- High accuracy, wide range, variety of materials can be measured more, and faster response speed can be used to automate online monitoring
Priciple
soil moisture analyzer
DS200 type auto temperature sensor oem applying crystal oscillator produces high frequency signal, and transferred to the parallel metal probe, produce the superposition of the sending signal and the returned signal ,which can measuring the soil moisture content through measure the amplitude of the signal .Due to the dielectric constant of water is much larger than normal material, so when the soil moisture content increases, the dielectric constant will increases , so it can measure the soil moisture according to the corresponding relationship between soil dielectric constant and the soil moisture .
soil moisture analyzer

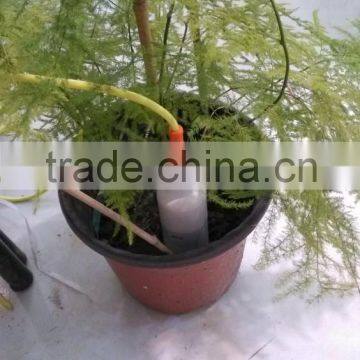

Application of the soil moisture analyzer
- Soil moisture sensors are widely used in agricultural irrigation systems, soil moisture monitoring, hydrological monitoring and other aspects of water conservation, and the number of mining and its long distance transmission equipment which may constitute a telemetry system.
- For example, when the soil is arid, remote alarm system, while the control system automatically switch es the pump and valve control, to automate irrigation.
- When combined with some additional sensors, you can also calculate the evaporation of soil moisture and crop water needed parameters.
Soil moisture analyzer ordering information
1) Measuring media
wireless temperature and humidity sensor2) Output signal
3) Cable length
4) Auto temperature sensor oem
Delivery : DHL / UPS / FedEx / EMS
Warranty
We warrants this quality product to be free of defects in material and workmanship for a period of one
year from the date of purchase. During the period, we will repair or replace the product at no charge for
parts or labor. But the shipment fee will be shared by the buyer (one party 50%).
The time period of this warranty starts from the date of the original purchase and expires on the first
anniversary date of purchase.
No express or implied warranty is made for any defects in this product which result from accident,
abuse, misuse, failure to operate the product in accordance with relevant instructions, neglect, immersion
in or exposure to chemicals or liquids, extremes of climate, fungus, excessive wear and tear/cosmetic
damage and defects resulting from other extraneous causes such as unauthorised disassembly, repair or
notification.
This warranty shall not extend to any incidental or consequential damages arising from the purchase,
use or inability to use this product.
The laws of some countries and some States thereof do not allow the limitation of incidental or consequential
damages, so the above limitation or exclusion may apply to you.
Certification
Our service
Company objective
Company division
Our team and factory

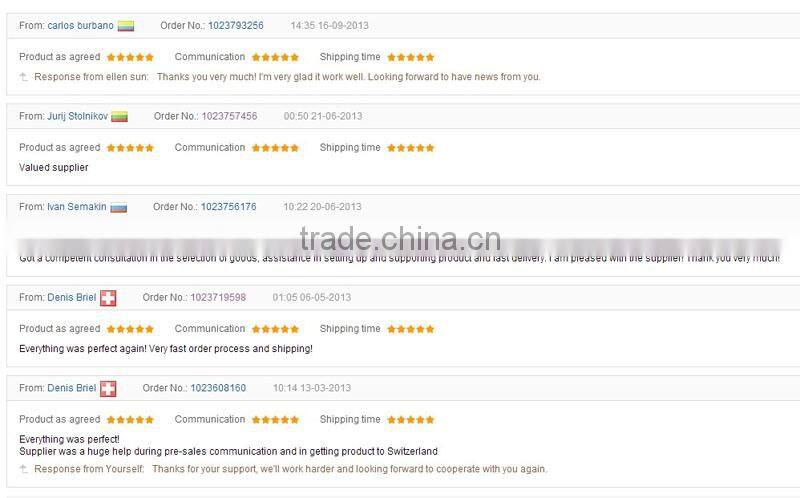

Feedback
auto temperature sensor oem auto temperature sensor oem
