GXZD-C Series Automatic Constant Tension Controller

GXZD-C Series Automatic Constant Tension Controller thumbnail-1
GXZD-C Series Automatic Constant Tension Controller photo-1
US$ 1,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Material:
Steel
Application:
Machine Packing
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Wenzhou Xiaohai I/E Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Steel
Application Machine Packing
Place of Origin China
Brand Name xh
Model Number GXZD-C

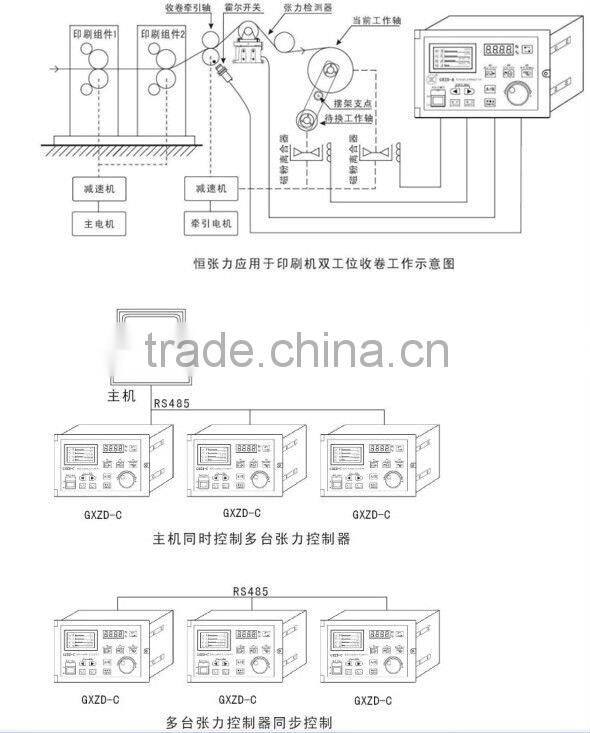

GXZD-C series high-precision automatic constant tension controller is designed for the printing press, which has two output bits of the duplex printing presses rolling to achieve pre-start automatically change axis, with automatic feeding and cutting output cut .

 Features:

1, optional LCD display in Chinese or English

2 easy automatic and manual switch

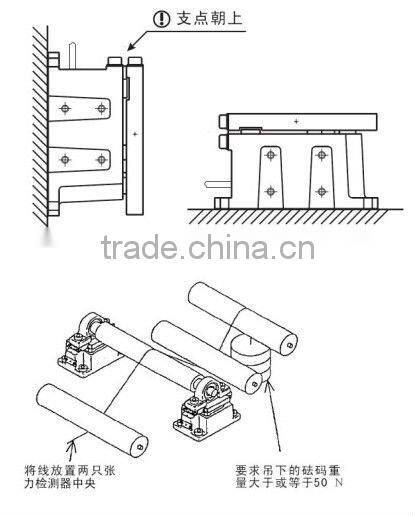

3, the tension detector wiring is simple and convenient

4, convenient parameter setting

5, with duplex output for axis

6, with a duplex Pre-start output

7, and more easily communicate through the Modbus protocol machine management

Measurement accuracy

<±1Newton

Sampling speed

100milliseconds

The main output way

30V/0-1.5A×2Lk output after magnetic powder clutch or magnetic powder brake

Aux output

2 "DC 0-5V analogue signal output

Communication function

RS-485 But many sets of tension controller synchronization using

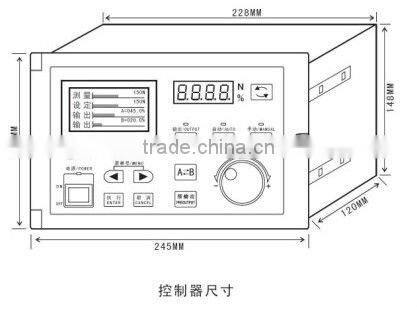

Shape dimension

245×155×140(mm)(W×H×D)

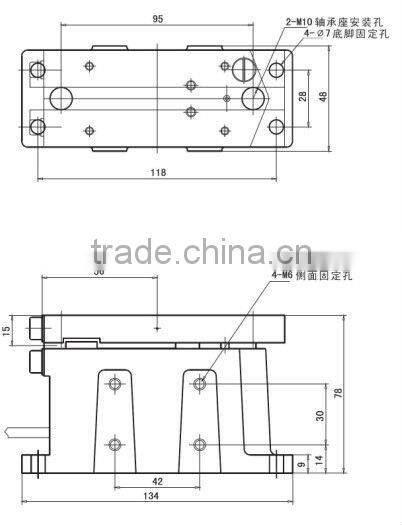

Installation dimension

230×150×120(mm)(W×H×D)

Electricity source

180 to 240V AC    50/60Hz

Due to design type manufacturing specifications are subject to change or size.

GXZD-C Series automatic constant tension controllerGXZD-C Series automatic constant tension controllerGXZD-C Series automatic constant tension controllerGXZD-C Series automatic constant tension controller
