1 Overview

The DT200 is integrated temperature & humidity sensor. The temperature part use band gap technology. The humidity part use capacitance element.

It is compact design with small dimension and easy for installation. Optional for pipe installation.

Furthermore, it is applicable for customized design, such as different mechanic structure, measurement range, and other OEM/ODM business.



2 Specification



Measurement Range

-40~100℃, 0~100%RH

Resolution

±0.5℃,±2%RH

Drift per year

±1%FS

Power Supply

12-36V DC

Output Signal

0-5V/4-20mA/RS485

Working Temperature

-40 ~ 85℃

Protection Rank

IP65

Mounting

Screw

Wireless

Optional for zigbee, wifi, GPRS, UMTS.



3 Mechanical Drawing



3.1 Wall Mount Version

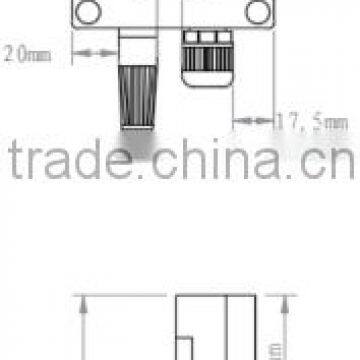

integrated temperature & humidity sensor. with customized design



3.2  Insert Version

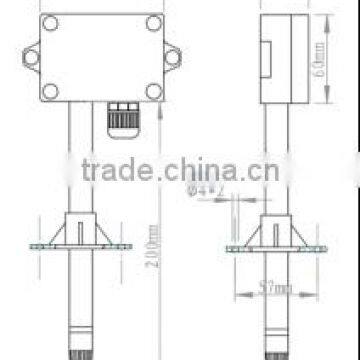

integrated temperature & humidity sensor. with customized design



4 Interface Definition







4.1 Voltage Output







Pin 1: Red Line: V+,



Pin 2: Blue Line: GND



Pin 3: Yellow Line: Humidity



Pin 4: White Line: Temperature











4.2 Current Output











Pin 1: Red Line: V+,



Pin 2: Blue Line: GND



Pin 3: Yellow Line: Humidity



Pin 4: White Line: Temperature



5 Naming Rules & Clarification







DT200

Temperature & Humidity Sensor



Mounting





W

Wall Mounting



P

Pipe Insert



Output





A

4~20mA



V

0~5V



D

RS485



Resolution





L

±0.5℃/±3%RH



H

±0.3℃/±2%RH









6 Package

Part List

NO.

Item

Quantity

Remark

1

Temperature & Humidity sensor

1



2

Manual

1







integrated temperature & humidity sensor. with customized design









20*11*14cm, for 1 unit/box



(Notes: Frequently update without notification)



 7 Warranty



  We warrants this quality product to be free of defects in material and workmanship for a period of one







year from the date of purchase. During the period, we will repair or replace the product at no charge for







parts or labor. But the shipment fee will be shared by the buyer (one party 50%).







     The time period of this warranty starts from the date of the original purchase and expires on the first







anniversary date of purchase.







      No express or implied warranty is made for any defects in this product which result from accident,







abuse, misuse, failure to operate the product in accordance with relevant instructions, neglect, immersion







in or exposure to chemicals or liquids, extremes of climate, fungus, excessive wear and tear/cosmetic







damage and defects resulting from other extraneous causes such as unauthorised disassembly, repair or







notification.







     This warranty shall not extend to any incidental or consequential damages arising from the purchase,







use or inability to use this product.    The laws of some countries and some States thereof do not allow the limitation of incidental or consequential







 damages, so the above limitation or exclusion may apply to you.
