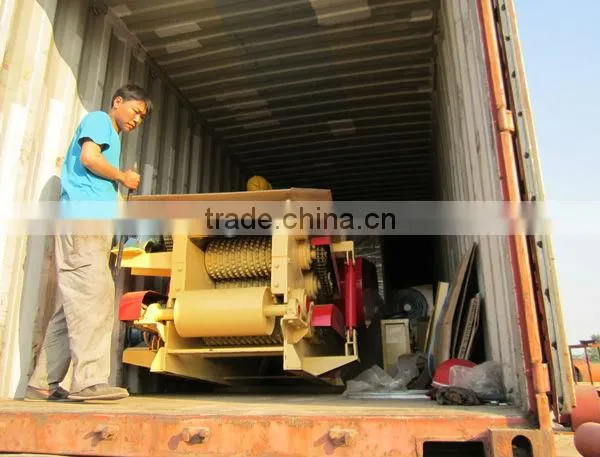

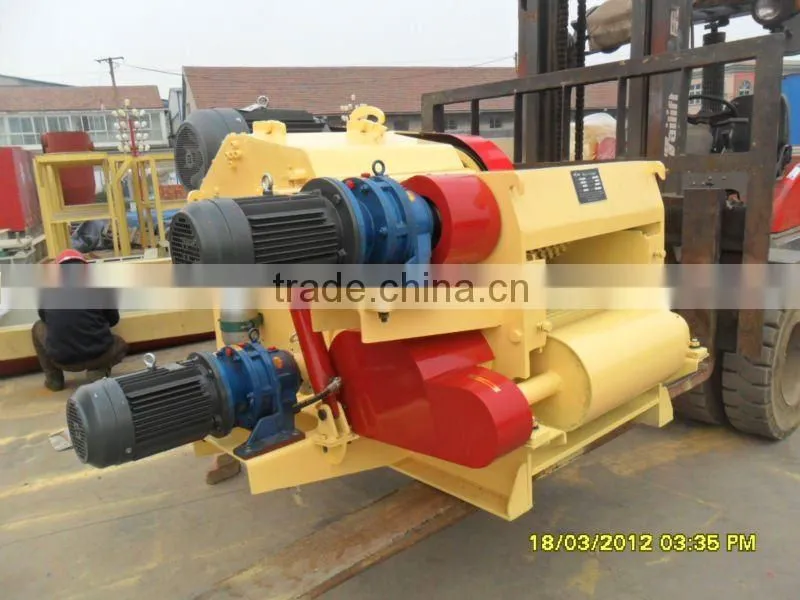

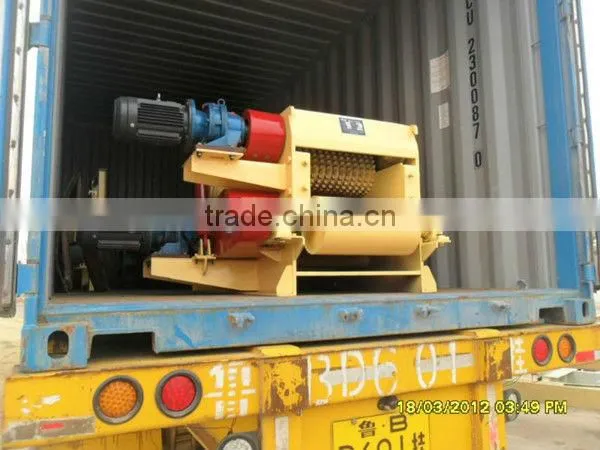

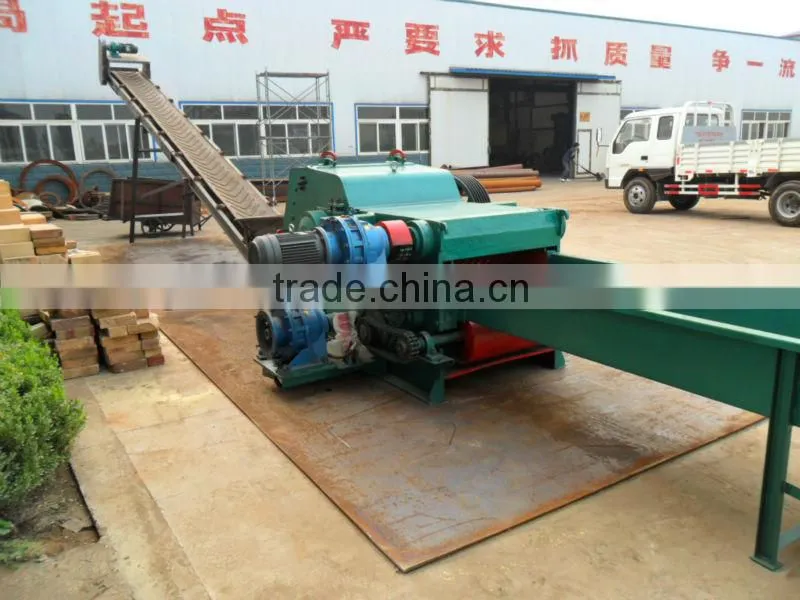

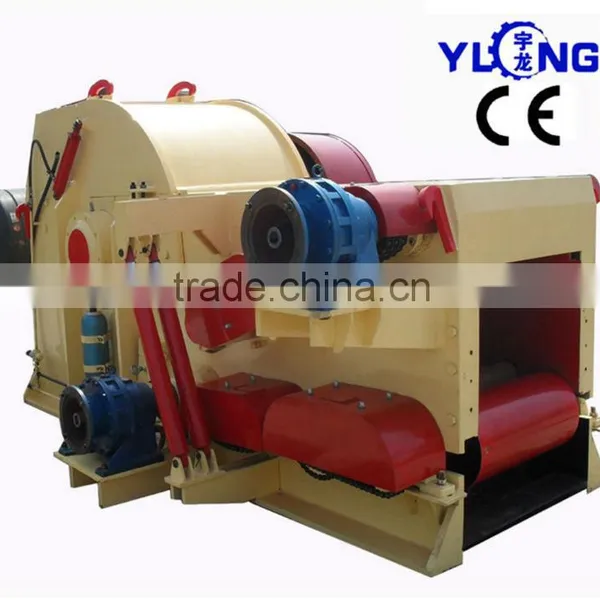

Help CenterFeeder Size 23*50cm Drum Chipper With CE Certification
Related Products
-
Sell Wood Chipper Machine Price in ChinaUS$ 8,000 - 49,000MOQ: 1 Set -
Cutter/straw Cutter/straw Grinder (1-5ton/h)US$ 2,000 - 8,000MOQ: 1 Set
-
Grass Cutter/straw Cutter/straw Grinder (1-5ton/h)US$ 2,000 - 8,000MOQ: 1 Set
-
Biomass Hot Air StoveUS$ 500 - 100,000MOQ: 1 Set
-
Solid-liquid SeparatorUS$ 500 - 100,000MOQ: 1 Set
Specifications
drum chipper1.CE,SGS,ISO9001
2.Wood chipper is CNC
3.High output,low consumption
drum chipper patameter:
Model |
Capacity (kg/h) |
Power (kw) |
Feeder Size (mm) |
Chips Size (mm) |
Weight (T) |
Note |
Dimension(mm) |
GX215 |
3-4T |
45+2.2+1.5 |
160×400 |
30mm |
3.145 |
Feed conveyor (4m) |
1470x1550×970 |
GX216 |
7-8T |
55+3+1.5 |
230×500 |
30mm |
4.070 |
1800×1900×1210 |
|
GX218 |
10-15T |
110+5.5+1.5 |
300×680 |
30mm |
7 |
2200×2150×1500 |
|
GX2113 |
15-25T |
160+7.5×2+ 1.5 |
350×680 |
30mm |
11.84 |
3670×2517×2050 |
drum chipper instruction :
1. drum chipper is our product which specially designed for round logs, square blocks.
2. drum chipper big wood logs into wood chipps or pieces,
the thickness of last pieces is 1.5mmto3mm,longth and width is 10 to30mm.
3. drum chipper has flat conveyor which can move wood logs into chipper with changeable speed ,
speed can be controled by electrical cabinet.
4. drum chipper wear part is two rotary grind knives and one fixed knife,
our grind knives has long time working , very conveient to repair and operate.
5. drum chipper is very easy and higly working efficiency.
This drum wood chipping machine would be the best choices for dealing with wood scraps.
Ms. Mary Wang
Mobile:18678866216
Skype:marywang0103
ZHANGQIU YULONG MACHINE CO.,LTD
Biomass Pellet Mill:
Feed Pellet Machine:
In order to recommend you the most suitable model to you, kindly tell me:
1) what size of your wood long?
2)what capacity do you need?
3)380v,50Hz,3 phases is suitable to you?
