We produce biomass pellet making line machines, animal feed pellet making line machines, fertilizer pellet
making line machines such as wood logs debarker, wood logs splitter, grass cutter, straw bale crusher,
sawdust making machine ,wood chipper, fertilizer ferment upender, hammer mill,pellet machine and
briquette machine, dryer and pellet cooler, screener, mixer, pellet packing machine and all conveyors
etc. for pellet cooler details, as below :

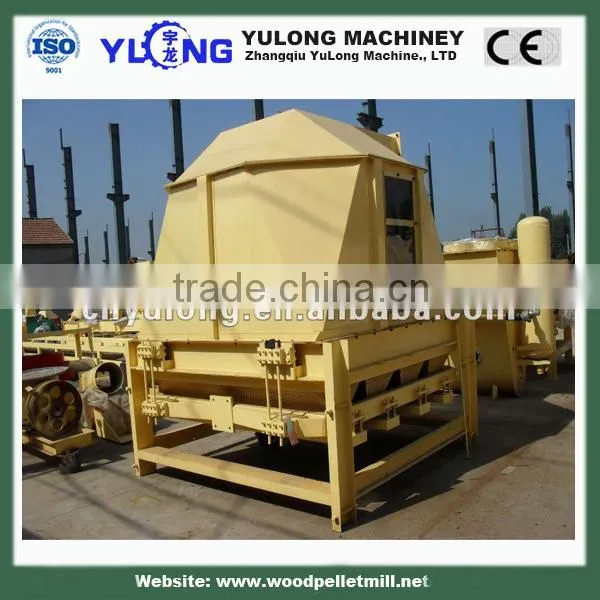

1.pellet cooler is mainly to cool 2-8mm dimension pellets, when outlet from pellet machines, the hot pellets temperature is
about 60-80 centigrade, after cooling, the temperature is not higher than room temperature +3-5.
2.pellet cooler adopts counter flow theory, cold air goes inside of cooler from bottom to top, hot pellets
goes to cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will cool
them at the bottom gradually, in this way will reduce pellet broken , if cold air also go to cooler from top,
which same as pellets, then hot pellets will meet with cold air suddenly ,then pellets will be easily broken,
especially pellets surface. In this way can cool fully and equally, pellet broken rate is smaller than 0.2%.

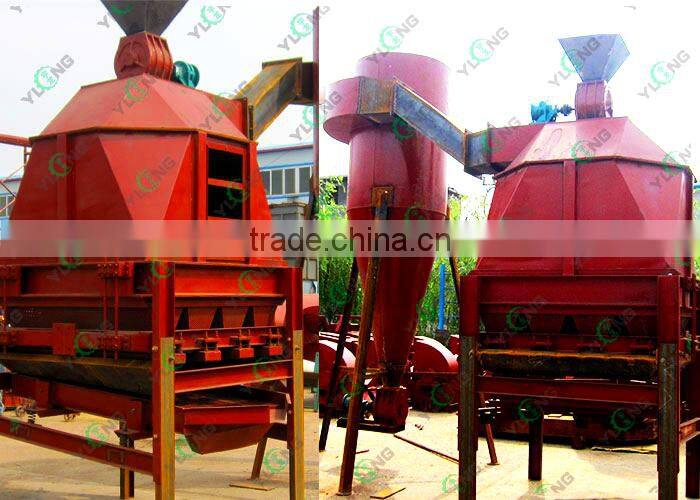

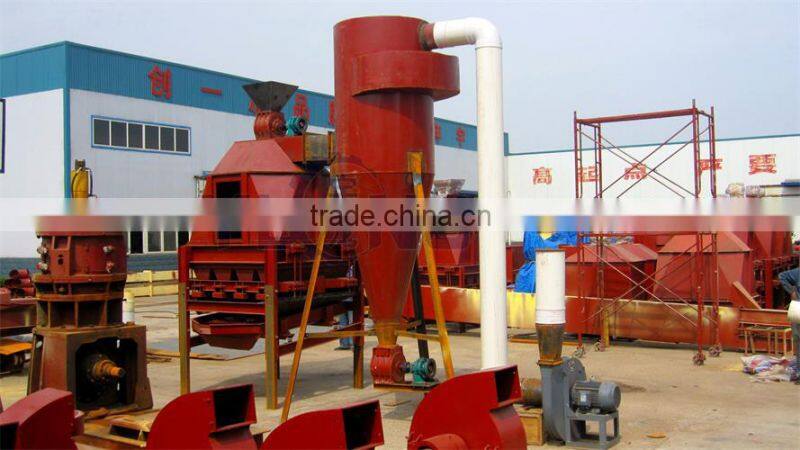

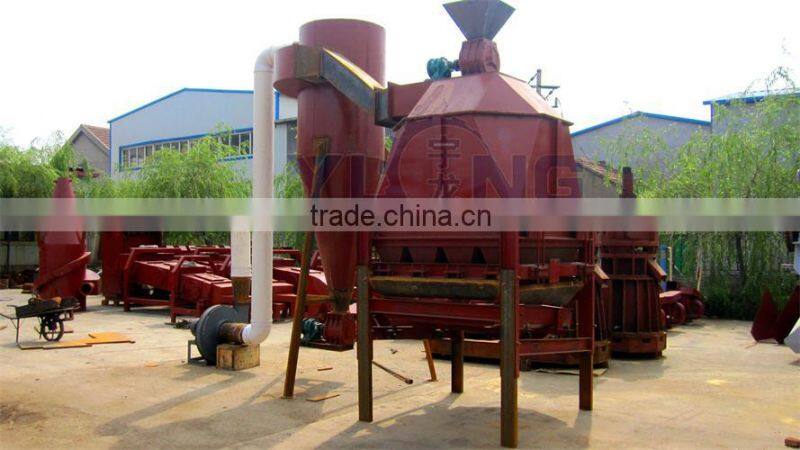

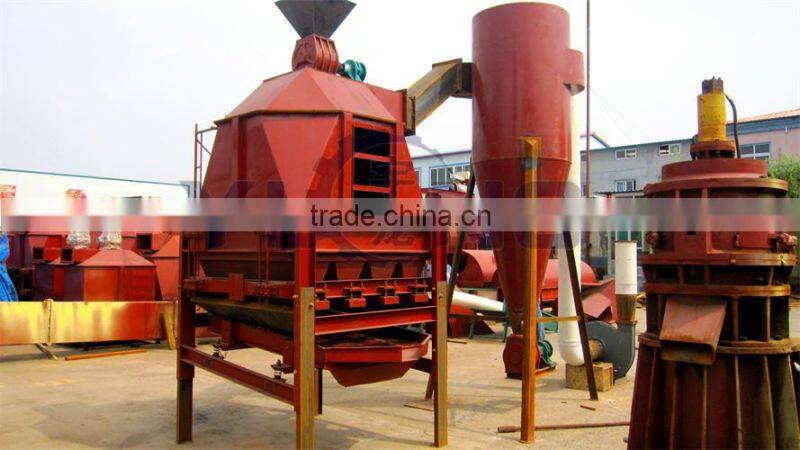

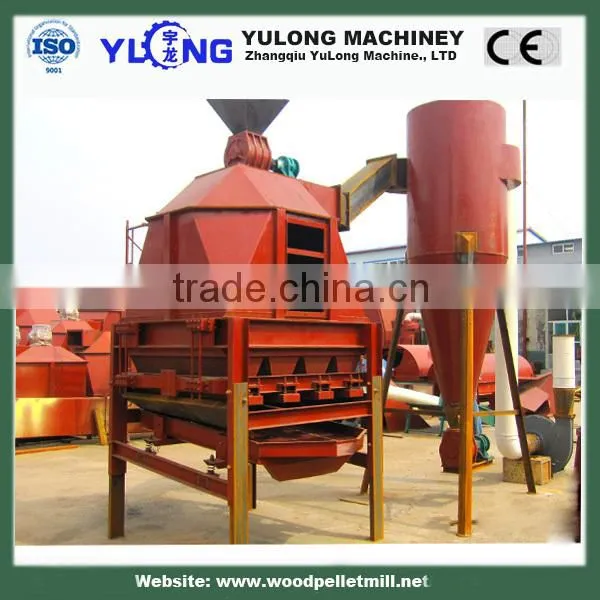

3.pellet cooler generally works with cyclone and air fan, air lock. which is used to clean dust, also it can in
stall a screener at the cooler bottom, which can separate dust and good pellets after cooling.
4.pellet cooler is hot selling more than 5000 sets per year , greatly welcome to ask me for details, we
have big discount for old customers.
Specifications:
Model | SKLN1.2 | SKLN1.5 | SKLN2.5 | SKLN4 | SKLN6 | SKLN8 | SKLN10 |
Output(t/h) | 0.8-1.2 | 1-2 | 3-5 | 5-8 | 8-12 | 12-15 | 15-20 |
Capacity(CBM) | 1.2 | 1.5 | 2.5 | 4 | 6 | 8 | 10 |
Cooled Time | Not less than 10 minutes | ||||||
Cooled Temp (℃) | Room temperature + 3-5℃ | ||||||
Power (kw) | 0.18 | 0.25 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37×2 |
Wind pressure |
Higher than 200mm H2O | ||||||
Power of Fan (kw) |
5.5 |
7.5 |
11 |
18.5 |
22 |
30 |
37 |
