DT-P104-I Industrial fanless 10.4" touch screen pc intel motherboard with I3/I5/I7 CPU 2GB RAM
For this industrial all on one panel pc, we offer different size form 8" , 10.4", 12.1", 15",17" to 19" .
Overview: intel motherboard
Description: intel motherboard
This industrial panel pc is a touchscreen panel solution designed for human machine interface application.It adopted the latest Intel® 3rd Generation Core™ i7/i5/i3 Mobile processor,2GB DDR3 RAM,eqquiped with 19" LED display and high temperature resistant 5 point resistance touchscreen.The computer is powered by 12v DC,which could control the internal heat effectively;provide more diversified Data storage means,also support DOM/SSD and 2.5" hard drive,integrated with multiple I/O port.
This pc adopted panel embedded installation,4 installation clamp is needed to complete the installation,very convenient for installation and maintenance;the front panel is in line with the NEMA/IP65 standard of water and dust proof which could effectively control the splashing water droplets and water vapor on site into the host;the device adopt fanless design,which could control the access of dust into the machine,and guranteed the stable operation of the machine.speed the rapid disseminiation of internal heat through the external surface radiation system,to make it enable to adapt to the rough conditions on site;Most suitable for factory automation, machinery manufacturing, CNC equipment,
Textile equipment, intelligent power, food traceability PC monitoring and control.
Compatible with Windows 2000, Windows XP, Windows VISTA, Windows 7, Linux and other major operating systems and embedded operating system,run the client developed application software and program based on the above operating system,the installation of industrial automation configuration software would form a powerful human machine interface.
Features : intel motherboard
- Intel® 3rd Generation Core™ i7/i5/i3 Mobile processor.
- 10.4 "color LCD screen with a resolution of 1024*768 or 800*600 optional, backlight life up to 50,000 hours
- Intel® integrated graphics engine that supports VGA / DVI / HDMI / LVDS external video card
- With multiple common used industrial port,could support most 4 rs232 serial port,2 10-1000M ethernet port and 8 USB port.
- High temperature 5 point ristive touchscreen panel,click time reach up to 35 million times.
- 12V DC power supply.
- Support built-in wireless LAN and Bluetooth devices
- Large area aluminum fin active cooling design ensures uninterrupted working of tablet PCs in harsh industrial conditions
Specification: intel motherboard
System parameter |
processor |
Intel® 3rd Generation Core™ i7/i5/i3 Mobile |
|
Chip set |
Intel® QM77/HM76 |
|
RAM |
SODIMM DDR3 1333/1600, Max. 8 GB |
|
Disk |
support SATA 2.5"SSD,HDD and DOM card |
|
Display |
Intel(R) HD Graphics 4000 |
I/O Interface |
Ethernet port |
2*RJ-45 |
|
Audio |
RTL ALC8012 audio controller, LINE-out port |
|
USB |
interface 2xUSB3.0 2xUSB2.0 port |
|
Serial port |
3xDB-9,1xrs232,1xrs232/422/485 |
LCD display |
Display |
10.4”XGA TFT LED |
Resolution |
1024*768or800*600 optional |
|
Brightness |
350cd/m2 |
|
Contrast Ratio |
800:1 |
|
Max color |
16M |
|
Display area |
211*258mm |
|
Respond time |
8ms |
|
Pixel distance |
0.297x0.297 |
|
View Angle |
(H)160/(V)160 |
|
Touch screen |
type |
5 point resistance touch screen |
Resolution |
4096X4096 |
|
Click life time |
250g strength,35 million times |
|
Respond time |
<5ms |
|
Light Transmittance |
>81% |
|
Pen draw life time |
250g strength,5 million times |
|
High temperature test |
85℃/1000hrs |
|
|
Constant temperature and humidity test |
85℃/90%RH/1000hrs
|
|
|
Machine structure parameter |
Panel box/cabinet |
the panel processed with aluminum-magnesium alloy,the cabinet adopt aluminum-magnesium alloy,overall cooling |
installation method |
panel embedded,VESA installation with a stand |
|
Power supply |
12/24V DC |
|
Weight |
4.1kg |
|
Power consumption |
32w |
|
Overall size |
288*230*64mm |
|
Cabinet size |
272*214*58mm |
|
Hole size |
274*216mm |
|
|
Circumstance parameter |
Working temperature |
0~60℃ |
Storage temperature |
-20~70℃ |
|
humidity |
10~95%@40℃(non-condensing condition) |
|
Vibration |
50~500Hz,1.5G.0.15mm peak value |
|
Attack |
10G(11ms |

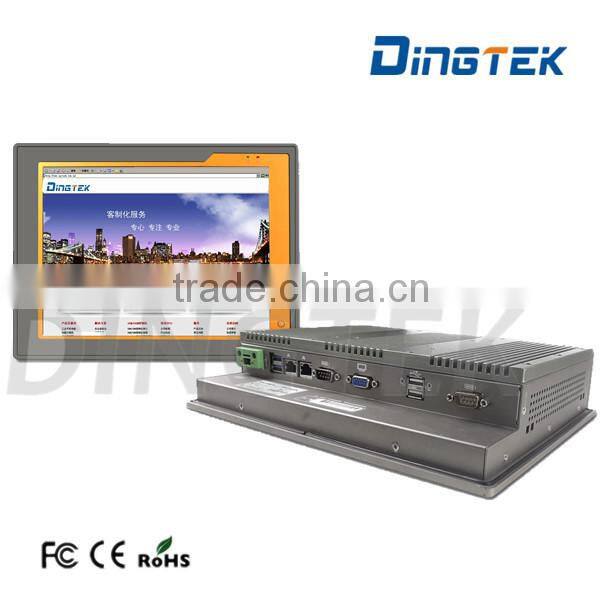

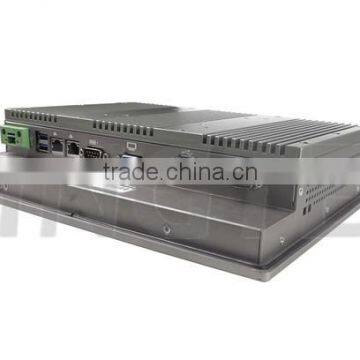

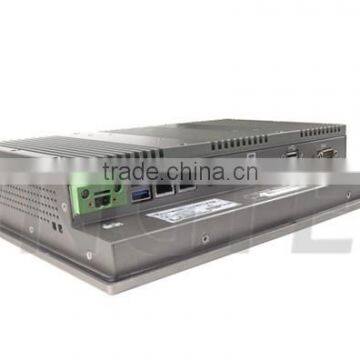

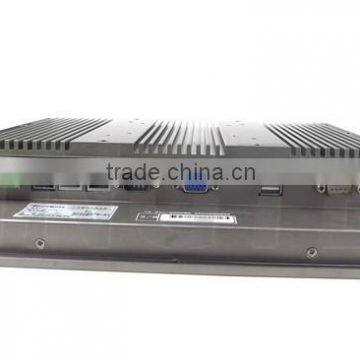

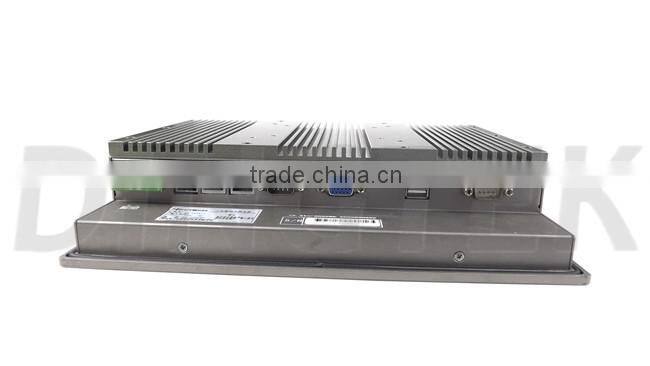

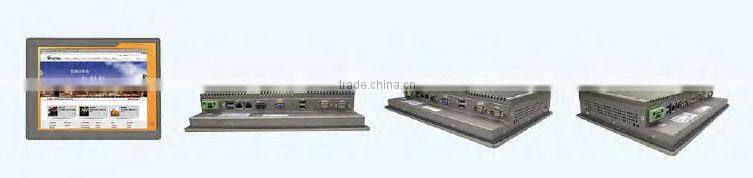

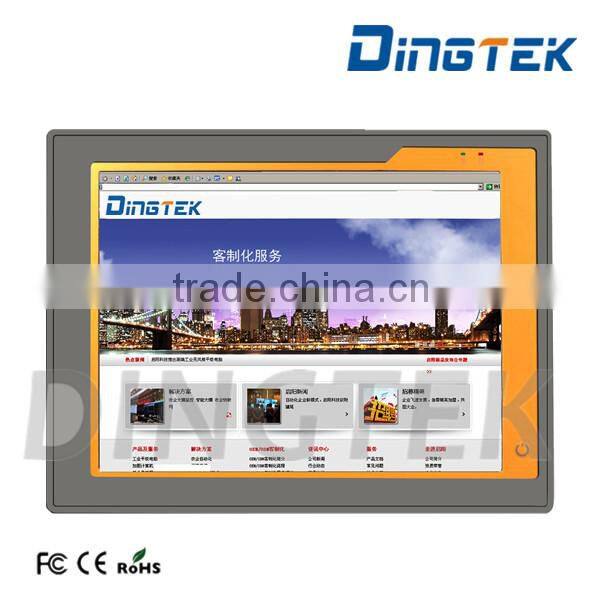

Detailed Pictures: intel motherboard

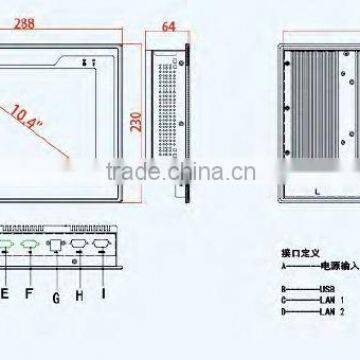

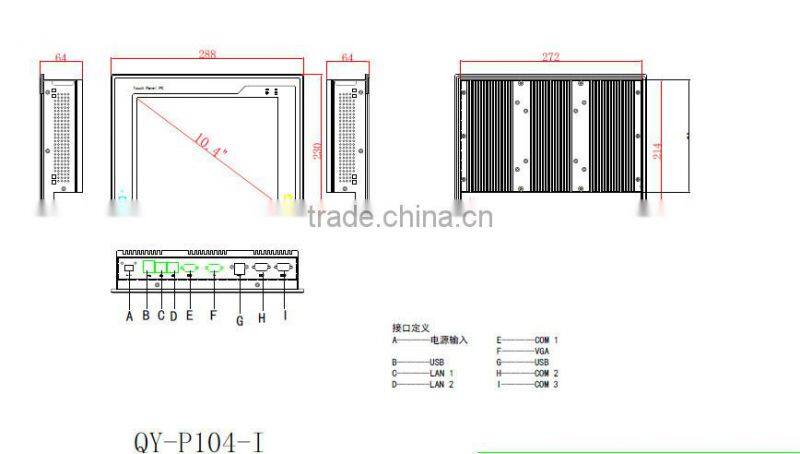

Size picture: intel motherboard
all in one pc intel motherboard
| Items per Carton: | 6 Pieces / Carton |
|---|---|
| Package Measurements: | 120X30X30 CM |
| Gross Weight: | 25.00 KG |

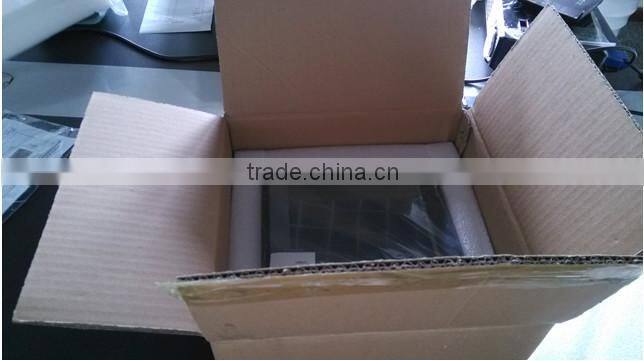

| Package Type: | Industrial computer package is standard carton . |
Our service
If you have any question about our products , please contace me. I will help you familiar with our products better.
- Support 1 years warranty
- The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
- Excellent package: each unit has individual box and all boxes are packed in standard packages.
- OEM available.
Company Profile
Dingtek Technology Group locats in China and has three branches in Beijing, Qingdao, and Hongkong. It has independent R & D center , production center and 24-hour quick response service network .
Since 2006 , Dingtek has been focused on embedded systems development , automation research and application. Our main business areas covers sensors design and manufacturing, embedded system design and development, complicated system integration and etc. The application covers automation, automotive, locomotive,new energy.
Besides the standard products, we also offer ODM/OEM for cusotmers special requirement. Not only software design, but also hardware design.We provide not only products, but also satisfactory service !
Certification

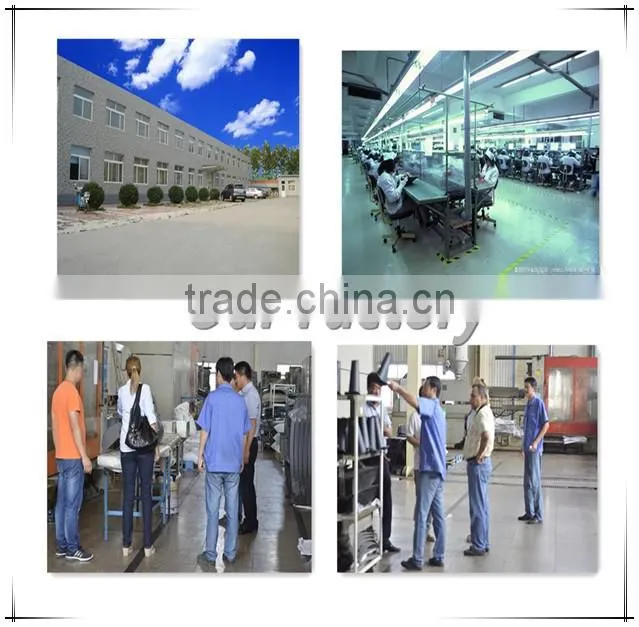

Our factory and team
