Specifications
Automatic Yofurt filling and capping machine1. Suitable for filling Liquid and Paste
2. Suitable for Bottle
3. Kinds of caps

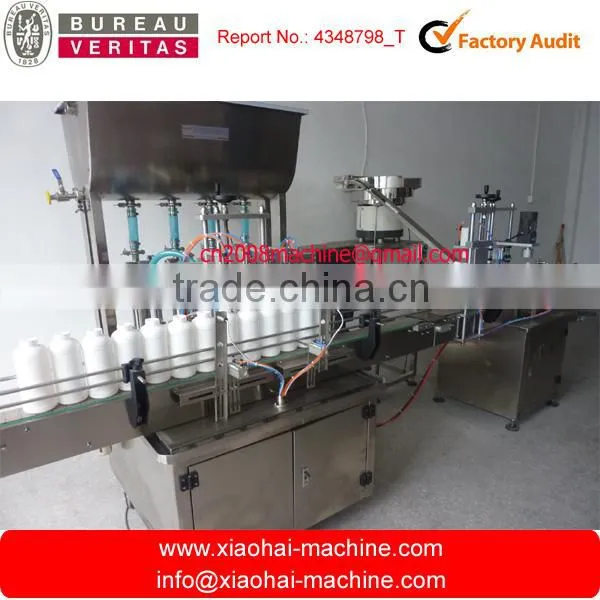

♣ Automatic Yogurt filling and capping machine
Usage:
Automatic liquid filling machine is widely used in chemical, oil and other industries , can be of different high- viscosity fluid filling. Mainly used disinfectant, wash liquid , nutrient solution, lotion , drinks , injections , care solution , oral , pesticides, pharmaceuticals , perfumes, lubricants , oils and liquid filling special industries .
Features:
1. Automatic liquid filling machine adopts famous brand of electrical and pneumatic components, the failure rate is low, stable and reliable performance, long life ;
2. Contact with the materials are 304 stainless steel, disassembly is simple, easy to clean, with food hygiene requirements ;
3. Filling volume and filling speed adjustment is simple, has no bottle no filling , liquid level control feeding ;
4. No replacement parts , you can quickly adjust the size of the bottle to replace the different shapes , applicability ;
5. Filling the mouth with anti-drip device to ensure the filling without drawing, do not drip.
Specification:
Full Automatic Liquid/Paste Filling Machine | |
Model Series. |
XHZ-Y |
Filing Nozzles |
According to customers requirement(2,4,6,8,10,etc) |
Filling Speed |
200-500B/H Per Nozzle |
Bottle Volume |
5-100ml 30-280ml 50-500ml 100-1000ml 500-2500ml 1000-5000ml |
Bottle Diameter |
≥ 50mm |
Bottle Hight |
90-320mm |
Accuracy |
≤±1% |
Voltage |
220V/110V 50/60Hz |
Power |
500W |
Air Pressure |
0.5-0.7Mpa |
Air Consumption |
0.3-0.8 m3/min |
Dimension |
3000*1000*1500mm(Depend upon the different models) |

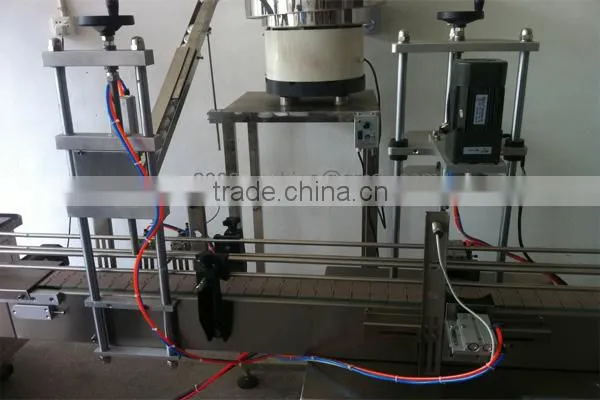

Automatic Dropping and Capping Machine Picture
Specification:
Automatic Cap Dropping and Capping Machine | |
Cap types |
Locked caps,screw caps,ROPP According to different kinds of caps, customized. |
Capping Head |
Depend upon customers’ requirement |
Cap Diameter |
Φ20-66mm |
Capping Speed |
30-40B/min |
Capping rate |
≥99.99% |
Air Pressure |
0.4Mpa |
Voltage |
220V/1ph |
Aftersales Service:
