Yogurt Cup FFS Machine
- Shanghai / Ningbo Port
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage, Chemical, Food, Medical | |
| Packaging Type | Bottles, Cans, Capsule | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Voltage | 380V/220V | Place of Origin | Zhejiang, China | |
| Brand Name | Xiaohai Yogurt cup FFS machine | Model Number | QGF Yogurt cup FFS machine | |
| Dimension(L*W*H) | 4200x880x2200 | Weight | 1800 | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

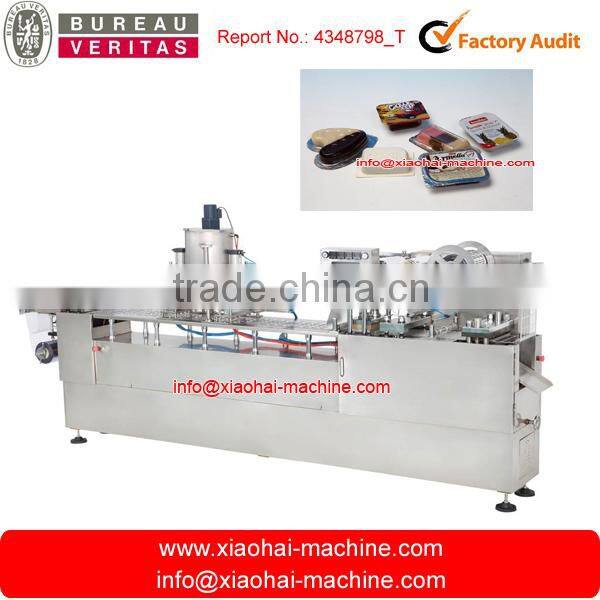

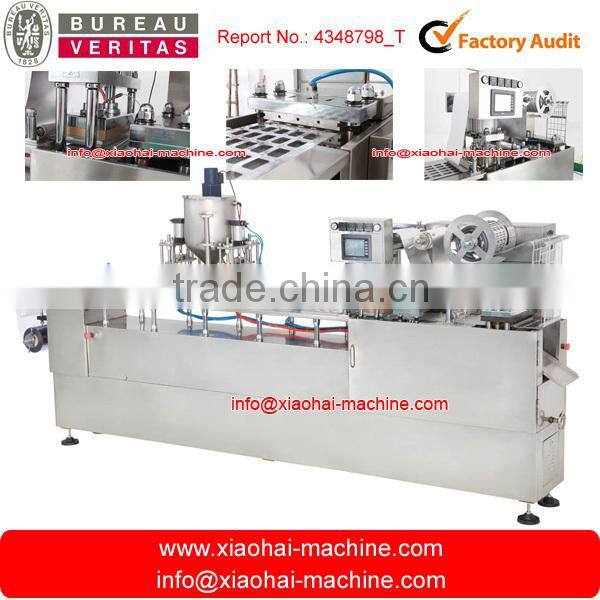

Yogurt cup FFS machine
Description:
This machine is my factory innovation, development and production of packaging machinery, adapted to the various free-flowing liquid filling and sealing, ketchup, jam, chocolate sauce, butter, etc; also suitable for filling cookies, candies, tablets, capsules, etc. Adopt PLC control interface, frequency control, easy to operate.
The machine is equipped with photoelectric eye device to ensure the seal and cut neat and beautiful. Components are made from Germany, France, Japan, Korea and other brand-name products.
Machine fully made of stainless steel. Suitable Material sheet: PVC, PS, PET.
Workflow:
Automatic Vacuum Forming → automatic filling → automatic sealing → automatically print the date → Output finished cups automatically.
Specification:
Model | QGF-Z 250 | QGF-Z 320 | |
Maximum Forming Area & Depth | 160×250×24mm | 160×320×24mm | |
Standard Mould | 80×57mm(can be customized) | ||
Speed | 15-50 times/minute | ||
Distance Range | 40-160mm(can be customized) | ||
Sheet Spec | 0.15-0.5×250mm | 0.15-0.5×320mm | |
Power of Main Motor | 1.5KW | ||
Voltage | 3N-50Hz 380V/220V | ||
Pressure | 0.4-0.6MPa | ||
Air Consumption | ≥0.3m3/min | ||
Mould Cooling | tap water or recycling water | ||
Dimension(LxWxH) | 4000×750×1750mm | 4000×780×1750mm | |
Weight | 1600kg | 1800kg | |
