Permendur 2V similar with Hiperco 50A and Chinese 1J22 bar
Permendur 2V
is a soft magnetic alloy which has been used primarily as magnetic core material in electrical core material in electrical equipment requiring high permeability values at very high magnetic flux densities. The magnetic characteristics of this alloy permit weight reduction, reduction of copper turns, and insulation in the end product when compared to other magnetic alloys having lower permeabilities in the same magnetic fieldrange.
Table 1 Grade and Chemical Composition
Grade |
Chemical Composition (%) |
|||||||||
C≤ |
Mn≤ |
Si≤ |
P≤ |
S≤ |
Cu≤ |
Ni≤ |
Co |
V |
Fe |
|
|
1J22 Permendur 2V |
0.04 |
0.30 |
0.30 |
0.020 |
0.020 |
0.20 |
0.50 |
49.0~51.0 |
0.80~1.80 |
Balance |
Table 2 Physical Property | |||||||||||||||
Grade |
Resistivity /(μΩm) |
Density/(g/cm3) |
Curie point/°C |
Magnetostriction Cofficient/(×10-6) |
Tensile Strength,N/mm2 |
|
|||||||||
Unannealed |
Annealed |
|
|||||||||||||
|
1J22 Permendur 2V |
0.40 |
8.20 |
980 |
60~100 |
1325 |
490 |
|
||||||||
|
Table 3 DC Magnetic Property Requirements After Heat-Treated | |||||||||||||||
Grade |
Type |
Minimum Magnetic Flux Density for Different Magnetic Field Strengths (T) |
Coercive force Hc / (A/m)≤ |
|
|||||||||||
B400 |
B800 |
B1600 |
B2400 |
B4000 |
B8000 |
||||||||||
|
1J22 Permendur 2V |
Cold rolled Strips |
1.70 |
1.90 |
2.00 |
2.10 |
2.20 |
2.25 |
110 |
|
||||||
Wires,Forgings,Bil |
|
|
|
|
|
|
|
||||||||
Specification: Sheet/Plate, Bar/Rod/Coil
Size Range:
*Sheet---Thickness 0.10mm~2.50mm, width:10.0~210.0mm,Condition: cold rolled, bright
*Plate---Thickness 3.5mm~40.0mm,width:≤300mm,Condition: hot rolled, hot forged, black

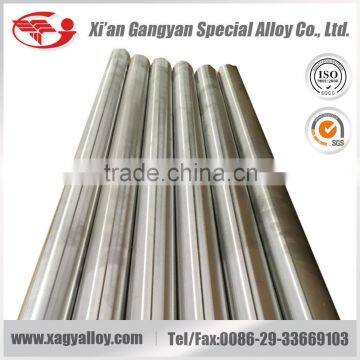

*Bar--- Dia 8.0mm~Dia 32.0mm,length:≤2000mm,Condition:hot rolled,burnished
Dia 32.0mm~Dia 150.0mm,length:≤1000mm,Condition:hot forging,peeled, turned
