Specifications
fertilizer making machine1. Ball Ratio up to 95%
2. Stainless steel inner
3.Low investment
4. CE,SGS
introduction to WLJ series fertilizer pellet/granule making machine
1).Summary
We have specialized in R&D organic fertilizer equipment 15 years,since established in 1998and have got many innovation in this field.
The WLJseries organic fertilizer granulator is our latest innovation which have been patented by the National Patent office.
The WLZL adopt special granulating theory,which is low consumption but high efficiency.
2).Working theory:
The inner rotor of WLJseries organic fertilizer granulator rotate centrifugally with high speed,when it working.
At the same time the powder material is fed into the inner rotor by the frequency screw automatically.
Under the action of centrifugal force,the powder material rotate centrifugally with high speed in the cylinder
creating enormous friction and high temperature,in which condition
the organic powder material will have adhesiveness and be formed to ball shape.
3).Main characteristics
1. WLJOrganic fertilizer granulator adopts special shaping and granulating theory, no need die pelletizing,
so the processing cost is low and efficiency is high.
2. The final granule produced by WLJOrganic fertilizer granulator have smooth surface,high uniform size,good fluidity,high density etc.
3. The temperature reach to 60-100 °C in the granulating cylinder when the WLJgranulator working,which will reducing the drying cost greatly.
4.The formation rate of WLJgranulator >95%,which have been approved by ISO9001 and other authorities .
5.The using cost of WLJfertilizer granulator is very low compare to other die pelletizing granulator.
4).Specification
Model | Power(kw) | External Diameter(mm) | Length(mm) | Capacity(t/h) |
WLJ600 | 55 | 630 | 4400 | 1-1.5 |
WLJ800 | 75 | 820 | 4500 | 1.5-2 |
WLJ1000 | 110 | 1020 | 4500 | 2-2.5 |
WLJ1200 | 132 | 1220 | 4500 | 4-6 |
WLJ1400 | 160 | 1420 | 4500 | 5.5-8 |
Note:The above capacity is for fermented manure and agr-waste powder.It’s varying a little for deferent material.

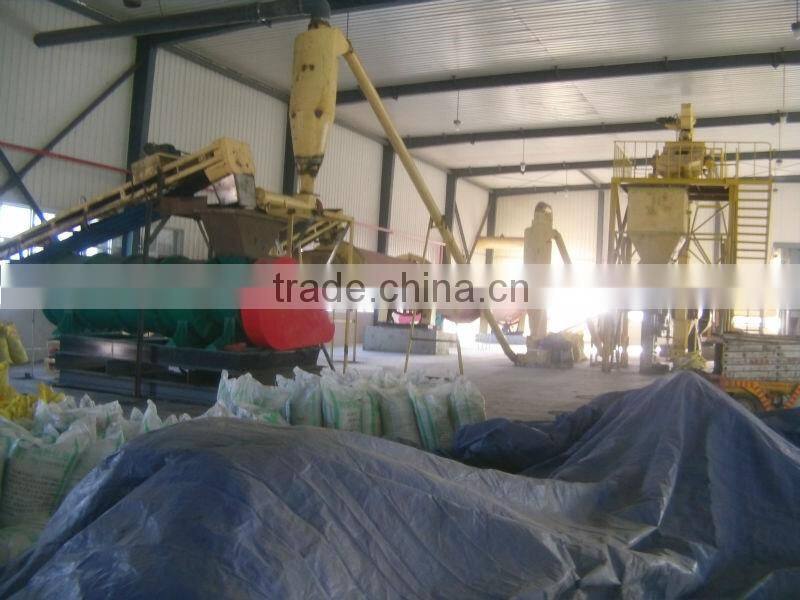

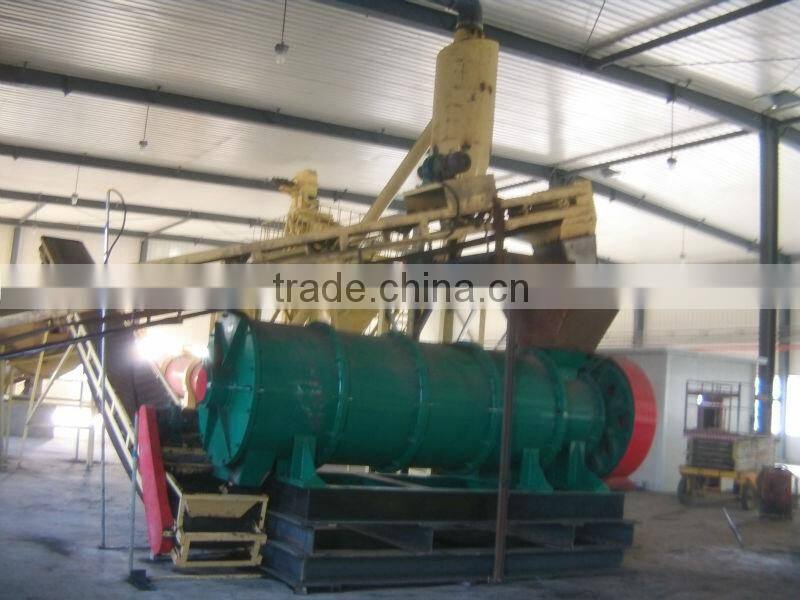

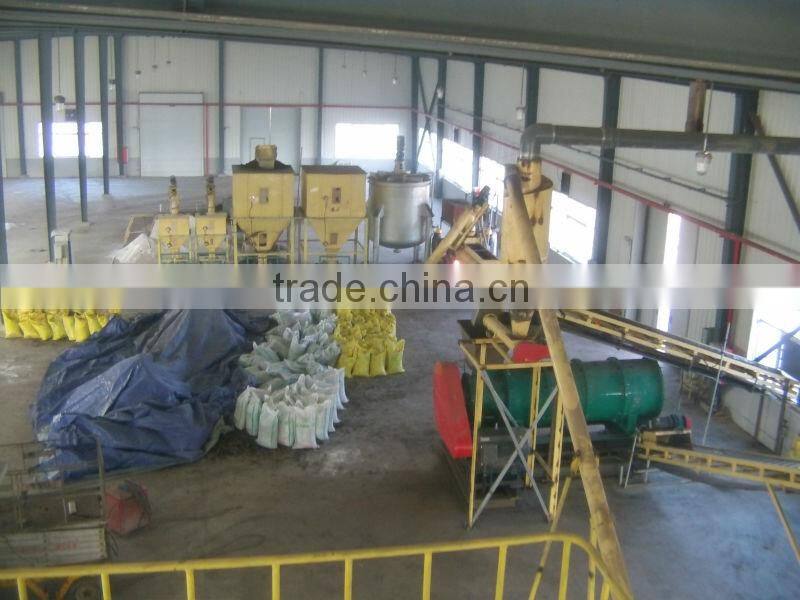

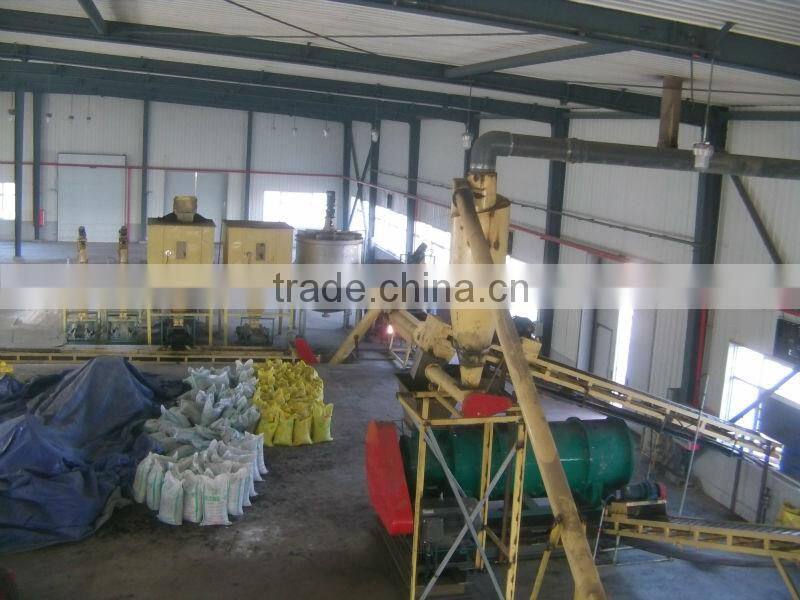

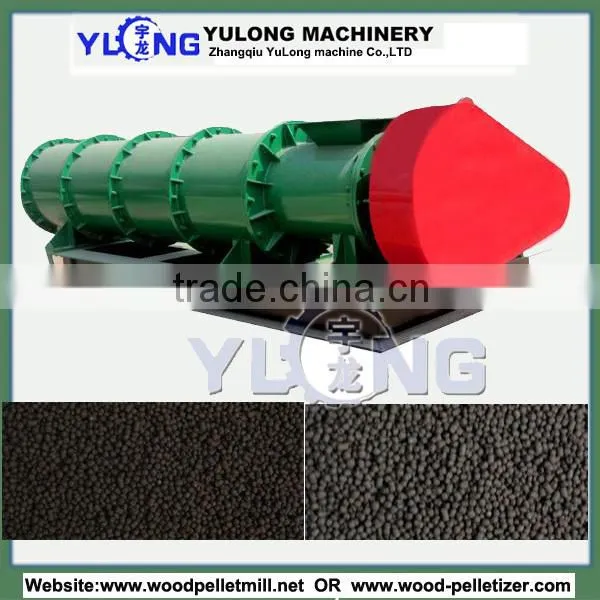

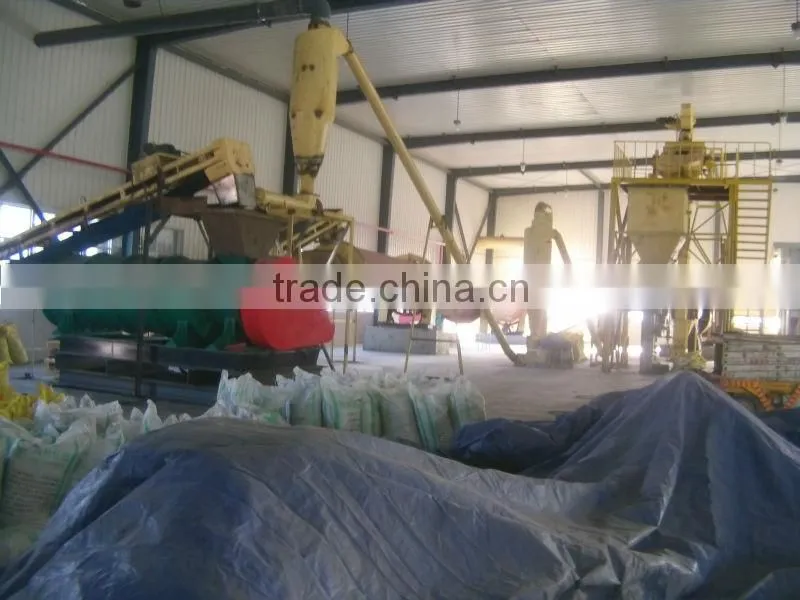

5).Sample pictures
