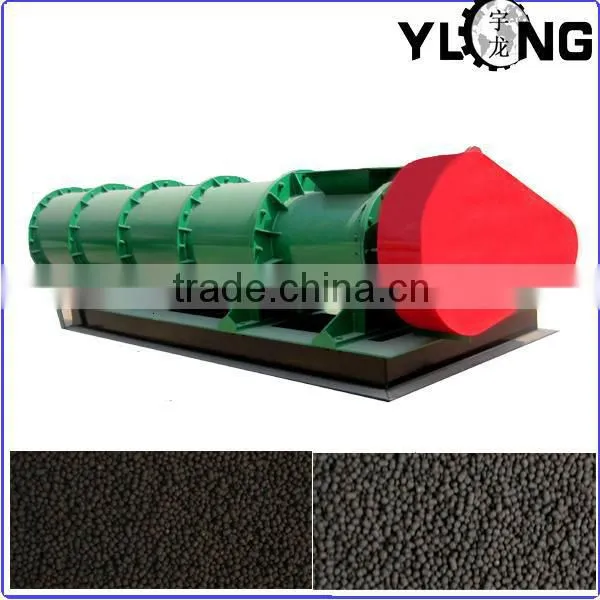

WLJ Series Fertilizer Granulation Equipment

WLJ Series Fertilizer Granulation Equipment thumbnail-1
WLJ Series Fertilizer Granulation Equipment photo-1
US$ 1,200 - 15,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Fertilizer
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Zhangqiu Yulong Machine Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
QIngdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Fertilizer
Place of Origin Shandong, China
Brand Name YULONG
Model Number WLJ
Voltage 380v
Power(W) 45kw
Certification CE&ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

fertilizer granulation equipment
1. Ball Ratio up to 95%
2. Stainless steel inner
3.Low investment
4. CE,SGS,ISO



About the WLJ fertilizer granulator

Summary

We have specialized in R&D organic fertilizer equipment 15 years,since established in 1998

and have got many innovation in this field.

The WLJ seriesorganic fertilizer granulator is our latest innovation which have been patented by the National Patent office.

The WLJ adopt special granulating theory,which is low consumption but high efficiency.



Working Theory

The inner rotor of WLJseries organic fertilizer granulator rotate centrifugally with high speed,when it working.

At the same time the powder material is fed into the inner rotor by the frequency screw automatically.

Under the action of centrifugal force,the powder material rotate centrifugally with high speed in the cylinder

creating enormous friction and high temperature,in which condition

the organic powder material will have adhesiveness and be formed to ball shape.



Main characteristics

1. WLJOrganic fertilizer granulator adopts special shaping and granulating theory, no need die pelletizing,

so the processing cost is low and efficiency is high.

2. The final granule produced by WLJOrganic fertilizer granulator have smooth surface,high uniform size,good fluidity,high density etc.

3. The temperature reach to 60-100 °C in the granulating cylinder when the WLJgranulator working,which will reducing the drying cost greatly.

4.The formation rate of WLJgranulator >95%,which have been approved by ISO9001 and other authorities .

5.The using cost of WLJfertilizer granulator is very low compare to other die pelletizing granulator.



Specification

Model

Power(kw)

ExternalDiameter(mm)

Length(mm)

Capacity(t/h)

WLJ600

45

630

4400

1-1.5

WLJ800

75

820

4500

1.5-3

WLJ1000

110

1020

4500

3-5

WLJ1200

132

1220

4500

4-6

WLJ1400

160

1420

4500

5.5-8



Note:The above capacity is for fermented manure and agr-waste powder.It’s varying a little for deferent material.



Working condition

1.The material should be powder shape whose size not excess 10mm.

2.The suitable moisture content of material is 30-40%.



WLJ series fertilizer granulation equipment
