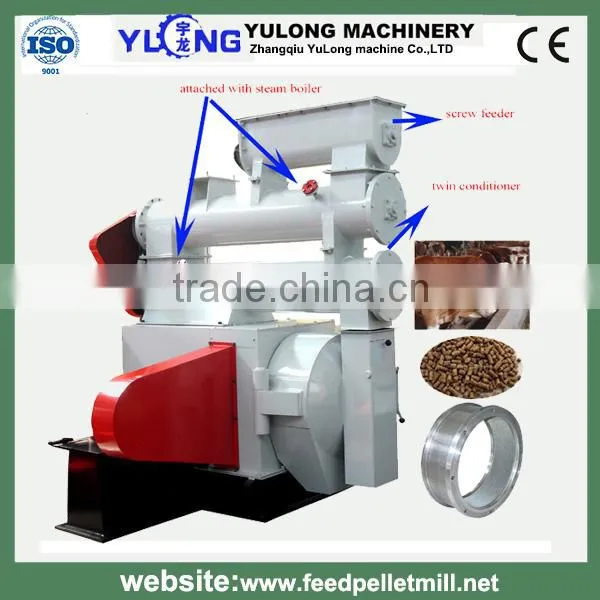

HKJ450 livestock feed pellet machine CE&ISO9001:2008

iron sheet packing

Specifications

livestock feed pellet machine
Make 1.5-8mm feed pellets
with conditioner and frequency feeder
CE,SGS,ISO9001

Chapter 1:Brief Introduction to YULONG machine



Zhangqiu Yulong Machine Co., Ltd,a hitech animal feed making equipments manufacturer, was established in 1998 which have developed into a group enterprise

whose business integrates scientific research,manufacturing,training and international trade.Professional in complete animal feed pellet production line supplying.

Main products includering die and flat die feed pellet making pellet mill,feed stuff hammer mill/grinder,all kind of feed mixer machine,feed weighting and batching scale,

feed silo,pellet feed cooler,vibrating screener,multigrade separator,feed weighting and bagging machine,bucket elevator...

All the above equipments approved by CE&ISO9001 and Chinese government organization.

YULONG brand feed making machines have been exported to Europe,US,Australia,Canad,South east Asia,

Japan,South Korea,Middle east,South Africa etc.from 1998.

Also setting four oversea service and sells centers in Poland,Bulgaria,Thailand,Malaysia,respectively.

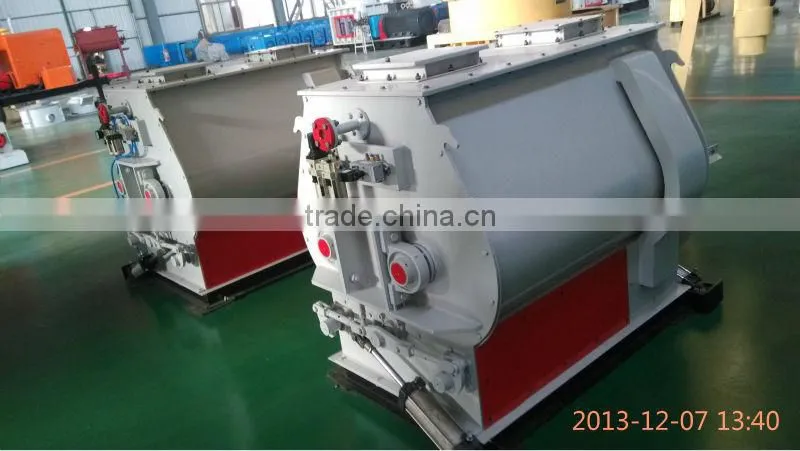

Chapter 2:Brief introduction to the animal feed mixer:

SSHJ Series Efficient Feed Mixer is widely used in mixing the powder, granule, slice, piece, miscellaneous form and ropy material in many industries,

such as feed, foodstuffs, food, chemical engineering, medicine and agricultural chemical etc, and it also can dry and cool various materials.



(1)The mixing period is short, and the mixing degree of homogeneity is high. The general material’s degree of homogeneity CV≤5% between 45 second and 60 second.

The mixing time is reduced and the output is improved.



(2)The variable range of loading is big, the coefficient of filling’s variable range is from 0.1 to 0.8,so that it can be applicable to the mixture of different materials with different

specific gravity and different granularity in many professions.



(3)The mixture doesn't lead to deviate .This machine continues to mix material cannot arise classification after one minute’s mixture good.

Moreover, it cannot create deviate as a result of different specific gravity and different granularity.



MODEL	Output (m3/batch)	Power(kw)	Actual volume(L)	Even degree (cv ≤%)	TIME (s)	Weight(t)	Dimension(m)
SSHJ100	0.20m³/batch	3	0.2	≤5%	40-90	0.62	1.5*1.2*1.2
SSHJ250	0.50m³/batch	5.5	0.5			1	1.72*1.5*1.35
SSHJ500	1m³/batch	11	1			1.7	2.36*1.9*2.05
SSHJ1000	2m³/batch	22	2			2.8	2.7*2.1*2.4
SSHJ2000	4m³/batch	30	4			4.6	2.95*2.5*2.5
SSHJ3000	6m³batch	37	6			6.5	3.5*2.8*2.6
SSHJ5000	10m³/batch	45	10			9.8	4.5*3.2*2.8

Chapter 3:Sample pictures:
