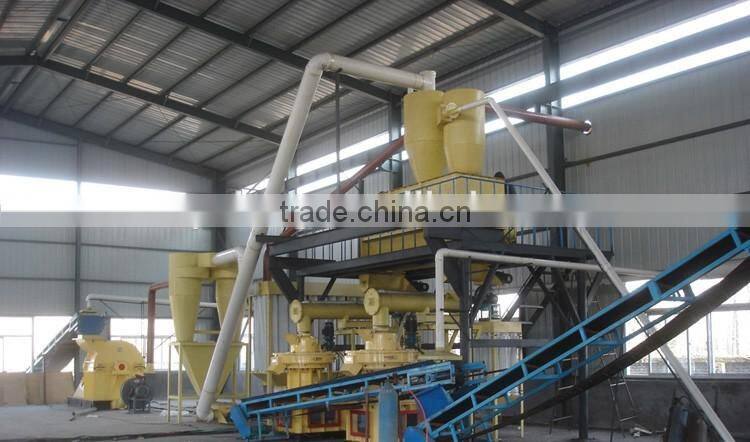

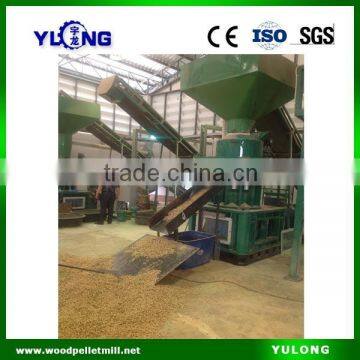

Complete Wood Pellet Production Line
We are professional manufacturer of wood pellet production line more than 18 years history, have got ISO, SGS certificate, all machines got CE certificate, with many customers and sales agent in different countries, such as in Spain, Poland, Italy, Greece, Bulgaria, Romania, Russia…
SPECIFICATION OF COMPLETE WOOD PELLET PRODUCTION LINE | ||
√ | Product name | Complete wood pellet production line |
√ | Manufacturer | Zhangqiu YULONG Machine Co., Ltd |
√ | Model No. | XGJ560, XGJ720, XGJ850, XGJ920, XGJ1050 |
√ | Capacity | 1000-6000 KG/H |
√ | Mainly motor | 90 KW-450 KW |
√ | Type | Vertical ring die |
√ | Output pellet diameter (normal) | 4mm, 6mm, 8mm, 10mm |
√ | Pellet density | 1.0-1.4 g/cm3 |
√ | Pellet Length | 1-10 cm |
√ | Flowchart design | According to raw materials' size, moisture and required capacity |
√ | Installation dimension | Send you when design the flowchart |
√ | Suitable materials | Wood, Sawdust, Rice husk, EFB, Palm fiber, Sunflower husk, Stalk, Grass and other biomass waste |
√ | Bug dust filter | Yes |
√ | Electrical control cabinet | Yes |

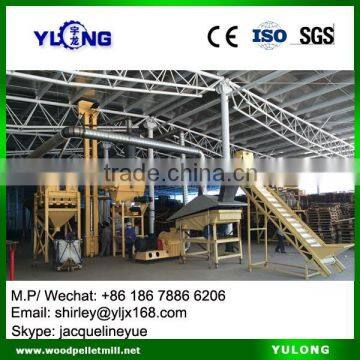

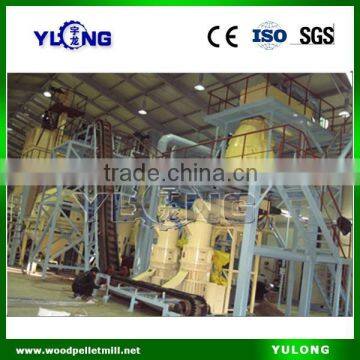

Complete Wood Pellet Production Line
1. Introduction
Pelletizing is the process of making waste materials into solid fuel. The pellets are used for burning purposes. Biomass Pellet can be made from any type of Agro-forestry waste, such as the rice husk, sunflower seed husk, peanut shell and other fruit shell, branch, trunk, bark and other wood waste, a variety of crop straws, rubber, cement, ash and other chemical materials. The type of pellet production line is widely used in the biomass-energy fuels plant, power plant, wood processing plant, fertilizer plant, chemical plant etc.
2. Features
1) Reasonable technology, high capacity and low energy consumption.
2) Modular structrue, the pellet line is compact, occupies less floor space and has low requirement on the mill tower, and need low investment in civil works.

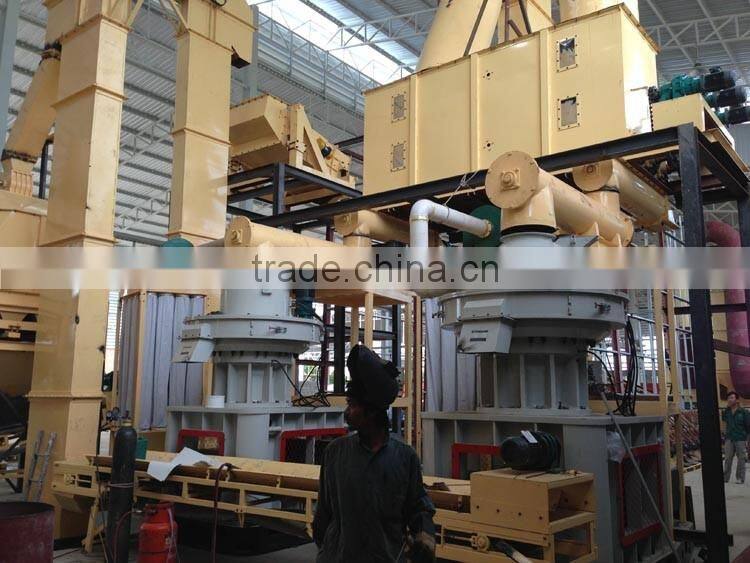

3. Main machines in complete wood pellet production line

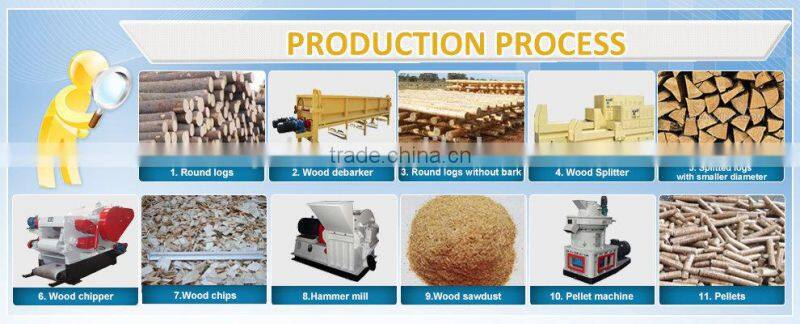

The complete pellet production line including log splitter, wood chipper, hammer mill, dryer, fine grind hammer mill, pellet machine, cooler, screener, packing machine, linked conveyor, electrical control system, dust-collecting machine and some auxiliary equipment.

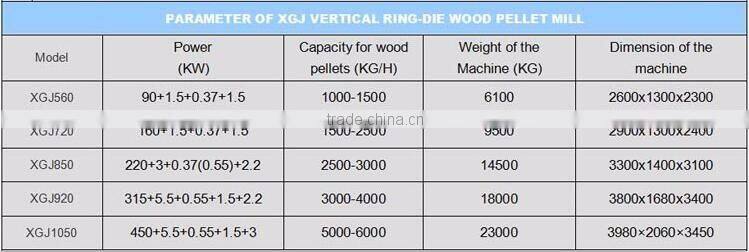

4. Key Machine-Pellet Mill Paramater
Video link of vertical ring-die pellet mill
/watch?v=ObuEkTaTl9g
/watch?v=nEtgAAcHnyQ
Contact: Mr YU LONG
Skype: yulongmachine
MB/whatsapp/wechat:+86-13153114876
Email:info(AT)
Facebook: /yulongpelletmachine/
Twitter: /yulongjixie
ZHANGQIU YULONG MACHINE CO.,LTD
Xiuhui Town, Zhangqiu, Jinan, Shandong Pro, China
FAQ
-- Q: General questions to design the pellet production line for you?
1. What is your raw materials? (to confirm mould pressure ratio of machines )
2. What is the moisture content of your raw material?
3. How many output capacity do you want per hour / month/ year?
Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15%. And please provide us above detailed information, then we would design the most suitable production line with reasonble offers.
-- Q: How long is your guarantee?
A: 12 months warranty but except quick waering parts.
-- Q: Will you send engineers to install the machines?
A: Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines arrive your factory, we will send our installation engineers to your factory Our engineers will Guide you to install the machines and training your workers how to operate the machines and maintain the machine.
-- Q: Voltage requirement ?
A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
