Home > Transportation > Electric Vehicle & Parts > Electric Bike > DMHC One Second Folding Electric Bike/ Folding E-bike
DMHC One Second Folding Electric Bike/ Folding E-bike
US$ 300 - 500
MOQ: 100 Sets
Key Specifications
Get Latest Price
Type:
Folding Bicycle
Wheel Size:
Other, 12"
Frame Material:
Aluminum Alloy
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DMHC One Second Electric Folding Bike With Lithium BatteryUS$ 300 - 500MOQ: 100 Sets -
2014 New Cheap Fashional Folding Electric Bicycle (DMHC-05Z)US$ 400 - 500MOQ: 100 Units
-
2014 Foldable E Bike (DMHC-05Z)US$ 400 - 500MOQ: 100 Units
-
2014 One Second Foldable e Bike (DMHC-05Z)US$ 400 - 500MOQ: 100 Units
-
2014 New Small Folding Electric Bicycle (DMHC-05Z)US$ 400 - 500MOQ: 100 Units
Type
Folding Bicycle
Wheel Size
Other, 12"
Frame Material
Aluminum Alloy
Fork Material
Aluminum Alloy
Rim Material
Aluminum Alloy
Net Weight
17.8kgs
Brand Name
DMHC
Model Number
DMHC05Z/DMHC04Z
Place of Origin
Jiangsu, China
Product Description
One Second Folding Electric Bike/ folding e-bike
♣ Specification
| No. | Components | Specification | No. | Components | Specification |
| 1 | Frame | TDW05Z Aluminum Frame / TDW04Z | 17 | Rim & Spoke | 12 "Aluminum Wheels |
| 2 | Motor | Power: 200W Brand: MinDa | 18 | Rear Carrier | no |
| Brush/BL:Brushless Front/Rear Drive: Front | |||||
| 3 | Battery | Voltage / Capacity: 36V/7Ah lithium | 19 | Thumb Throttle | no |
| Brand:YILI | |||||
| 4 | Controller | DMHC | 20 | Front/rear tire | Size:12” Brand:Kenda |
| 5 | Power Indicate | Throttle with Indicate | 21 | Front/rear Mudguard | Power coating steel |
| 6 | Charger | Brand:YILI Voltage Input:220V | 22 | Load | 180kgs(TDW05Z) 110kgs(TDW04Z) |
| Frequency:50/60Hz | |||||
| 7 | Throttle | Zero start,throttle with display | 23 | Front/rear light | no |
| 8 | PAS | 1:1 | 24 | Front/rear brake | Front:V brake, Rear:roller brake |
| 9 | Handlebar | Foldable Alloy Handlebar | 25 | Brake lever | Wuxing brake lever with cut-off function |
| 10 | Stem | Alloy stem | 26 | Grip | wuxing |
| 11 | Front fork | Alumium Alloy front fork | 27 | Bell | Black bell |
| 12 | Saddle/Saddle tube | Normal seat tube | 28 | Reflector | White:front |
| Red:rear | |||||
| 13 | Axis | One-piece axis | 29 | Single/Double kickstand | Single kickstand |
| 14 | Chainwheel, pedal | Aluminum chainwheel | 30 | Chain Cover | Black plastic chain cover |
| Foldable pedal black with refective | |||||
| 15 | The lock of the wheel | no | 31 | GW/NW | 21.2kgs /17.8kgs |
| 16 | Max speed | 23KM/H | 32 | Package size | 620X280X830mm |

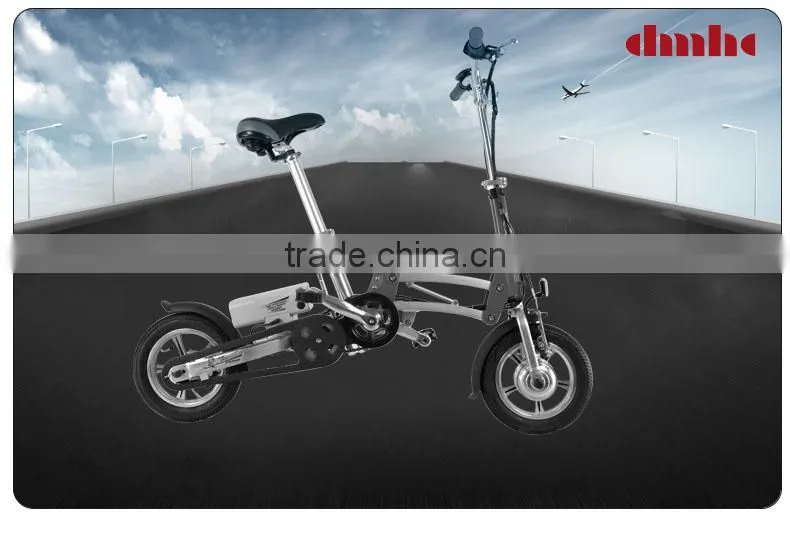

♣Product Pics
FAQ
1. Q: What’s your minimum order quantity:
A: 100 sets(Negotiable)
2. Q: Could I use my own forwarder?
A: Yes
3. Q: What’s your delivery time?
A: For samples: within 15days;
For orders: within 25days.
4 Q. How to control quality?
A: At DMHC, each ebike and ebike kit will be test 100%, our QA will check products .
♣Our Factory
♣Patented Certificate
