Internal Tail Lift for Vans/trucks LDV-100 Supplier's Choice

Internal Tail Lift for Vans/trucks LDV-100 Supplier's Choice photo-1
Internal Tail Lift for Vans/trucks LDV-100 Supplier's Choice photo-2
US$ 2,000 - 4,000 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Winner
Model Number:
LDV-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Winner
Model Number LDV-100
Product Description

Introduction

Winner tail lift have self-developed hydraulic system and high quality components supplied by top companies of Europe, USA and China.
High quality balance system can prevent plate from leaning.
The angle of plate can be ajusted to suit different environment.

Application

Hydraulic tail lift can help you in carrying cargo in or out of your car/truck, save your effort, make your transportation more effective.

Product Parameter
Technical Information
ITEM
VAN-50
LDV-50
LDV-100
Max lifting capacity
500kg
750kg
1300kg
Overhang requirement
1150mm
1905mm
1905mm
Loading capacity
300kg
550kg
1000kg
Lift type
Light
Standard
Standard
Load center
550mm
650mm
650mm
Maximum platform size
1250x850(mm) (long x wide)
1700x1300(mm) (long x wide)
1700x1300(mm) (long x wide)
Lifting synchronous cylinders
2sets/Double-acting cylinder
2sets/Double-acting cylinder
2sets/Double-acting cylinder
Loading cylinders
2sets/Double-acting cylinder
2sets/Double-acting cylinder
2sets/Double-acting cylinder
Weight
100kg
230kg
350kg
Maximum working pressure
18 MPa
20.5 MPa
25 MPa
Operating voltage
DC 12V/DC 24V
DC 12V/DC 24V
DC 12V/DC 24V
Hydraulic power unit
2.0 KW
2.2 KW
2.2 KW
Pump displacement
0.8 L/r
1.1 L/r
1.6 L/r
Theoretical flows
2.48 l/min
3.6 l/min
4.2 l/min
Lifting time
12s
20s
20s
Falling time
8 s
15 s
15 s
Fuel tank capacity
3 L
5 L
8 L

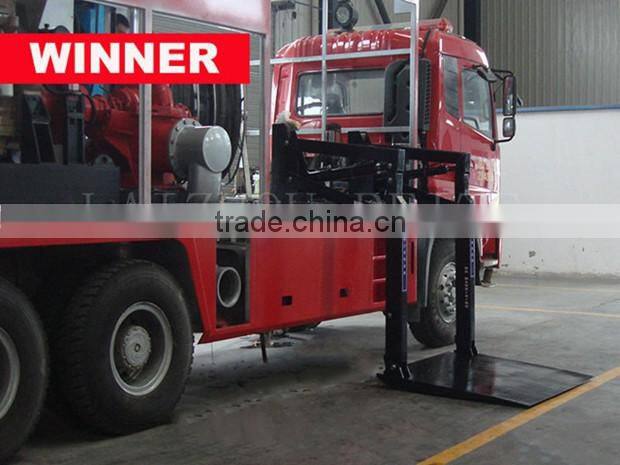

Product Images
