Internal tail lift for vans/trucks 300KG

Name: Internal tail lift for vans/trucks 300KG
Brand: Winner
Price: USD $2,000 - 4,000 / Unit

FOB Price

USD $2,000 - $4,000 / Unit

10 Units(Min.Order)

Supply Ability 3000 Unit / Units per Month
Port Qingdao

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shandong, China

Brand Name:

Winner

Model Number:

VAN-50

Product Description

Introduction

Winner tail lift have self-developed hydraulic system and high quality components supplied by top companies of Europe, USA and China.
High quality balance system can prevent plate from leaning.
The angle of plate can be ajusted to suit different environment.

Application

Hydraulic tail lift can help you in carrying cargo in or out of your car/truck, save your effort, make your transportation more effective.

Product Parameter

Technical Information
ITEM	VAN-50	LDV-50	LDV-100
Max lifting capacity	500kg	750kg	1300kg
Overhang requirement	1150mm	1905mm	1905mm
Loading capacity	300kg	550kg	1000kg
Lift type	Light	Standard	Standard
Load center	550mm	650mm	650mm
Maximum platform size	1250x850(mm) （long x wide）	1700x1300(mm) （long x wide）	1700x1300(mm) （long x wide）
Lifting synchronous cylinders	2sets/Double-acting cylinder	2sets/Double-acting cylinder	2sets/Double-acting cylinder
Loading cylinders	2sets/Double-acting cylinder	2sets/Double-acting cylinder	2sets/Double-acting cylinder
Weight	100kg	230kg	350kg
Maximum working pressure	18 MPa	20.5 MPa	25 MPa
Operating voltage	DC 12V/DC 24V	DC 12V/DC 24V	DC 12V/DC 24V
Hydraulic power unit	2.0 KW	2.2 KW	2.2 KW
Pump displacement	0.8 L/r	1.1 L/r	1.6 L/r
Theoretical flows	2.48 l/min	3.6 l/min	4.2 l/min
Lifting time	12s	20s	20s
Falling time	8 s	15 s	15 s
Fuel tank capacity	3 L	5 L	8 L

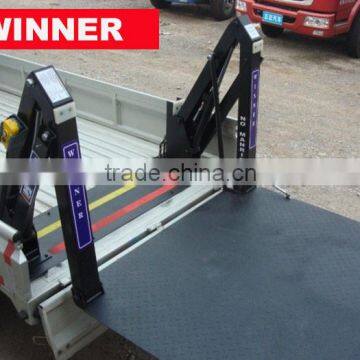

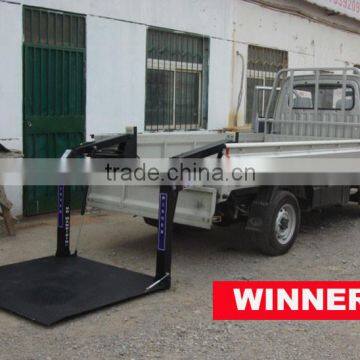

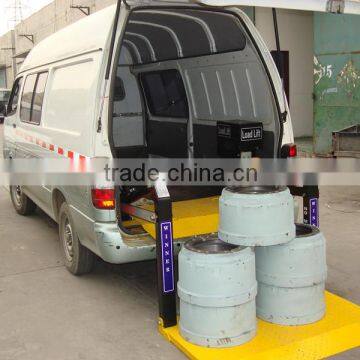

Product Images
