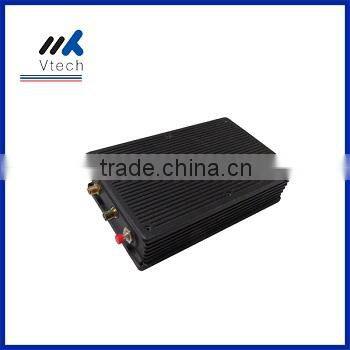

Help CenterC326 Utility Digital COFDM Wireless Video UAV Transmitter
Related Products
-
High Gain 5.2 5.8G 32dBi Double Polarization Parabolic AntennaNegotiableMOQ: 1 Set -
PROMPT GOODS! Broadcasting NLOS Cofdm Wireless Video TransmitterUS$ 1 - 10,000MOQ: 1 Piece
-
RF Receiver Board COFDM Hdmi to rf ModulatorUS$ 1 - 5,000MOQ: 1 Piece
-
H.264 HDMI Wireless Video Transmitter ModuleUS$ 1 - 6,000MOQ: 1 Piece
-
C330(1080P)HD Long Range rf Radio Wireless Data Transmitter Receiver ModuleNegotiableMOQ: 1 Piece
C326 COFDM Wireless Transmitter for UAV
Description:
It is small size , light weight, and uses MPEG2 encoding and COFDM digital modulation, provides 720 * 576 high-definition images, has strong diffraction ability , and support non-line of sight transmission. Based on standard COFDM modulation technology, high-quality digital video processing and MPEG2 video coding and decoding and very short coding delay, it supports 600KM / H high-speed mobile transmission, nonline of sight (NLOS) transmission, adjustable frequency (frequency can choose UHF, 1.0G-1.2GHz band, etc.), pictures are clear and stable without mosaic or drag phenomenon.
Technical Parameters:
Item |
Description |
Modulation Method |
COFDM 2K patten |
Working Frequency |
The frequency with standard factory is 650M-900MHz, the users can modulate on site ,the adjustment step is 1M. |
RF Bandwidth |
2/2.5/4/8MHz(option) |
RF Power |
100mW-1 , 10 classes can be optional |
Transmission Rate |
1.5--8Mbps |
Forward Error Correction(FEC) |
1/2 2/3 3/4 7/8 |
Protect Partition |
1/32 1/16 1/8 1/4 |
Video Input |
1 road PAL/NTSC |
Video Compression |
MPEG-2 4:2:0 |
RF Interface |
SMA head |
Audio and Video Interface |
Aeronautical head |
Work Environment |
-40~70°C |
Boundary Dimension |
140×85×33mm |
Weight |
100g |
