Bi-Directional TDD Same Frequency Network Wireless Audio Video Transmitter

Name: Bi-Directional TDD Same Frequency Network Wireless Audio Video Transmitter
Brand: Vtech
SKU: 100944799
Availability: InStock

US$ 1 - 1,500 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Vtech

Model Number:

Sky-Nd-340s-1W

Shenzhen Zhongchuang Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Vtech

Model Number Sky-Nd-340s-1W

Features:

1. Modularity , Three security , Low-power electronics ;

2. Support the system build network within same frequency or different frequency , automatic roam ;

3. Power stability, adjustable dynamic power ;

4. The wireless channel adopt either AES128 encryption ;

5. IP Non line-of-sight transparent data transmission ;

Parameter / Type		Sky-Nd-340s-1W
RF Parameter	Working Frequency	300~800MHz(Bespoke)



	Modulation Bandwidth	2 / 4 / 8MHz
	Modulation Type	TDD-OFDM
	Communication Mode	TDMA
	Power Output	≤30dBm
	Flatness In Band	≤ ±0.5dB
	Out-of-band Spurious	≤ -36dBm
	Third-order IM	≤ -36dBC
	RX Sensitivity	≤ -100dBm
	Adjacent-channel interference	≥ 40dB
Data	Synchronization Control	GPS
Data	Network Protocol	ip/TCP,UDP,HTTP,SMTP etc
Coding	Video Compression	H.264
	Image Format	CIF/D1/720P
	Audio Coding	64Kbps G.711
	Acoustic Input	Double Channels 12dBm
Generic Specification	Operating Temperature	-30 ~ +70°C
	Power Input	DC:10V ~ 16V
	Power Consumption	15 ~ 30W
	Size	54128220
	Net Weight	1.7Kg

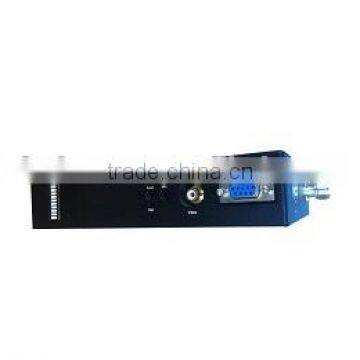

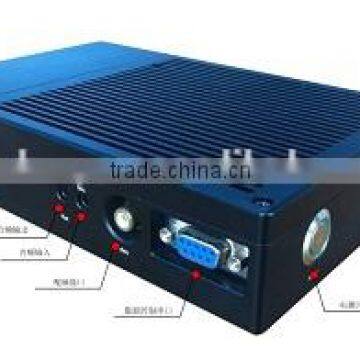

Connector	Audio Interface	BNC video Input ,3.5mm Standard headset output audio
	Control system data connection	Four core aviation head
	RF Antenna Terminal	RF
	Network Interface	RJ45
