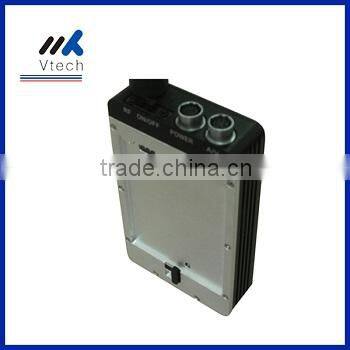

C328 Model COFDM Wireless Image Transmission
Product characteristics:
Small volume, light weight, use MPEG2 encoding and COFDM digital modulation types, provide720 * 576 high-definition images, good diffraction ability ,support the non-line of sight transmission, can be placed in the briefcase, the live images can be transmitted to the rear people when secret visit or getting secret evidences. It is mainly used in public security, procurator, law, security bureau and other departments .
Based on standard COFDM modulation technology, high-quality digital video processing and MPEG2 videocoding and decoding, very low delay of coding,support high-speed mobile transmission, support the non-line of sight(NLOS) transmission, supports adjustable frequency (the frequent segment can choose UHF,1.0G-1.2GHz etc.), small size and light weight as cell phone the transmission distance is not less than 500M under the non-line of sight environment. its image clear and stable, has no mosaic or drag phenomenon. All the frequency segment of receiver can modulate continuously(frequency scope:47M~860MHz),which can modulate in the customers’ location.
Technique parameter:
Item |
Description |
Modulation type |
COFDM 2K QPSK |
Working Frequency |
The frequency with standard factory is 331±4MHz, can modulate frequency according to the customers’ location,the adjustable step is 1M |
RF Bandwidth |
2/2.5/4/8MHz can be adjustable |
RF Power |
100mW-1,10 class is adjustable |
Transmission Rate |
1.5-8Mbps |
FEC (forward error correction) |
1/2 2/3 3/4 7/8 |
Protect Partition |
1/32 1/16 1/8 1/4 |
Video Input |
1 road PAL/NTSC
|
Video Compression |
MPEG-2 4:2:0 |
RF Interface |
N type head |
Video Interface |
BNC head |
Audio Interface |
BNC head |
External Battery |
14.4V/6600mA |
Work Environment |
-20~70°C |
Boundary Dimension |
100X50X15mm |
Device Weight |
75g |
