Help CenterConcrete Cutting Machine, Concrete Cut Off Saw
Related Products
Features and Application
TYK concrete cutters are convenient and economical for you, suitable for various specific assignment and work site.
l Comfortable grip handle.
l Easy crank for raising or lowering cutting depth.
l The saw position guide helps ensure straight cutting.
l Large water tank provide an optimum flow and volume of water to the blade.
l Throttle control as standard part.
l Saw blade from 350mm to 600mm.
l Diesel engine is also available for your choice.
Technical Specification
Model NO. |
|
HQ-120 |
HQ-150 |
HQ-150N |
HQ-200 |
|
Blade Size |
MM |
300-350 |
350-450 |
350-450 |
450-600 |
|
Cutting Depth |
MM |
120 |
150 |
150 |
200 |
|
Water Tank Capacity |
L |
20 |
35 |
30 |
40 |
|
Net Weight |
KG |
100 |
129 |
126 |
136 |
|
Packing Size |
MM |
990x580x970 |
1000x620x990 |
1120x620x1100 |
1030x620x1100 |
|
Depth Adjustment |
|
Handle Rotation |
Handle Rotation |
Handle Rotation |
Handle Rotation |
|
Drive Mechanism |
|
Manual Push |
Manual Push |
Manual Push |
Manual Push |
|
Engine (other engines are available as request) | ||||||
Brand |
|
Honda |
Honda |
Honda |
Honda |
|
Model |
|
GX270/390 |
GX390 |
GX390 |
GX390 |
|

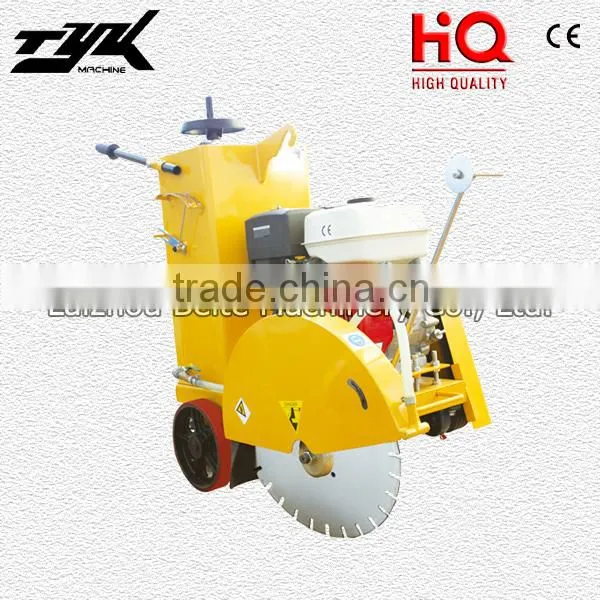

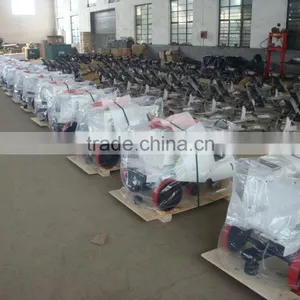

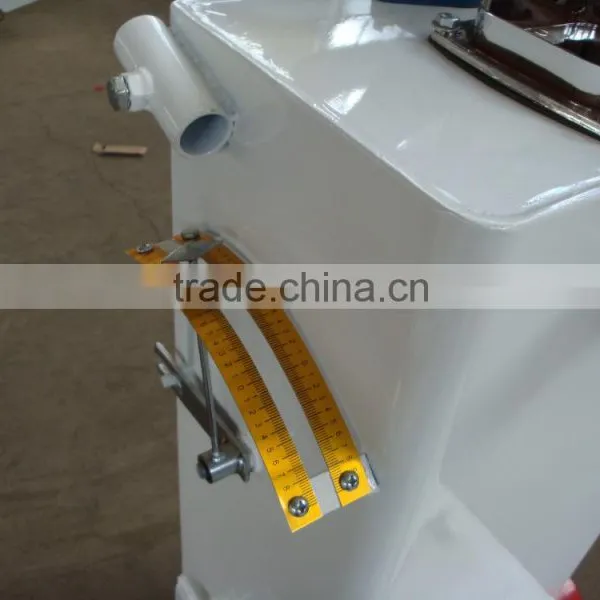

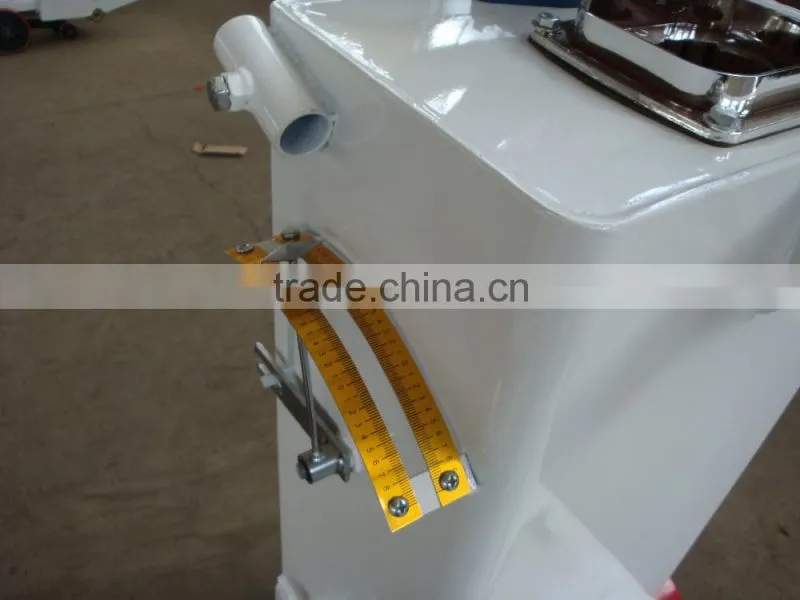

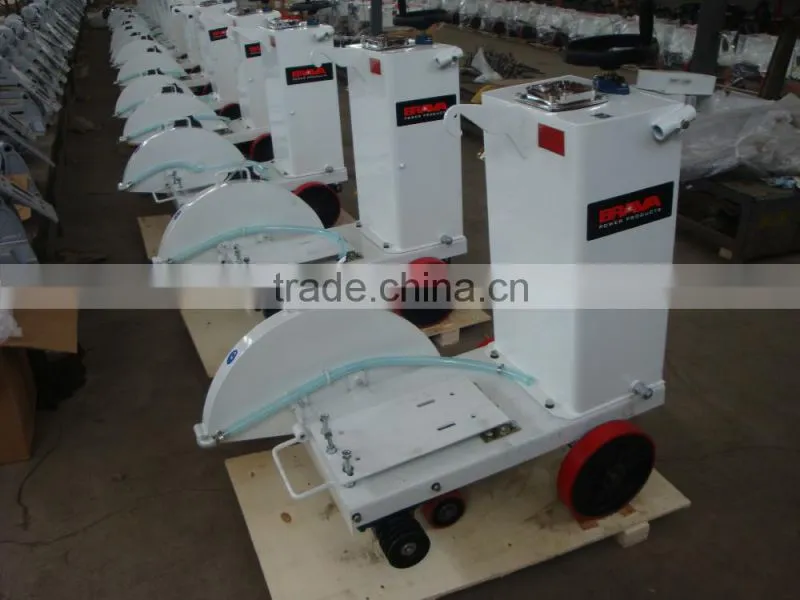

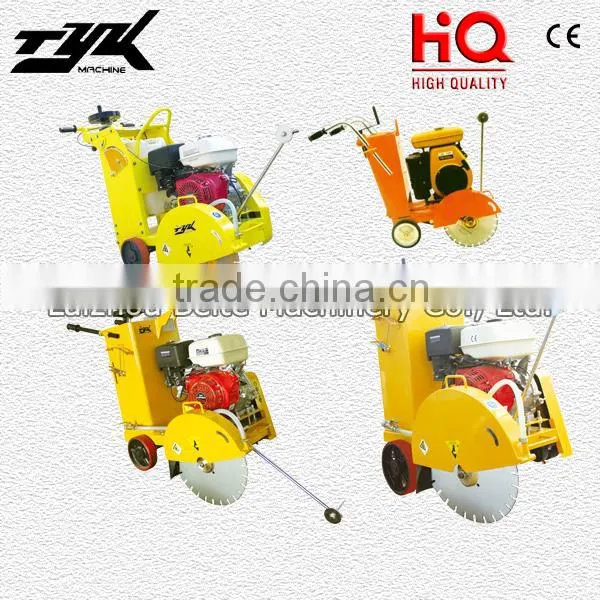

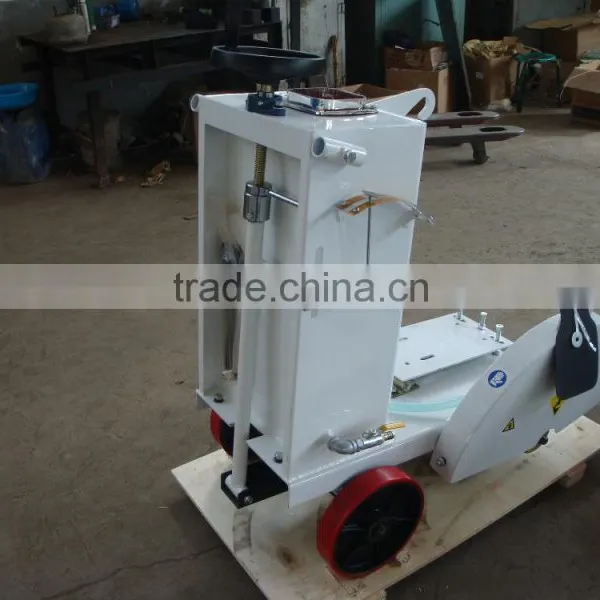

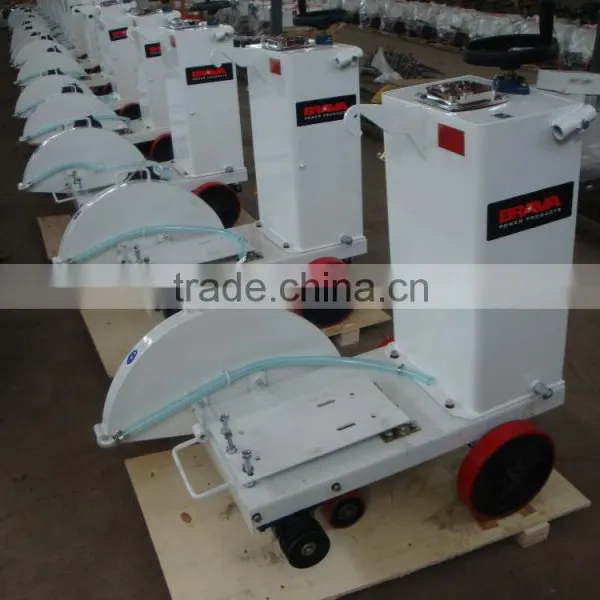

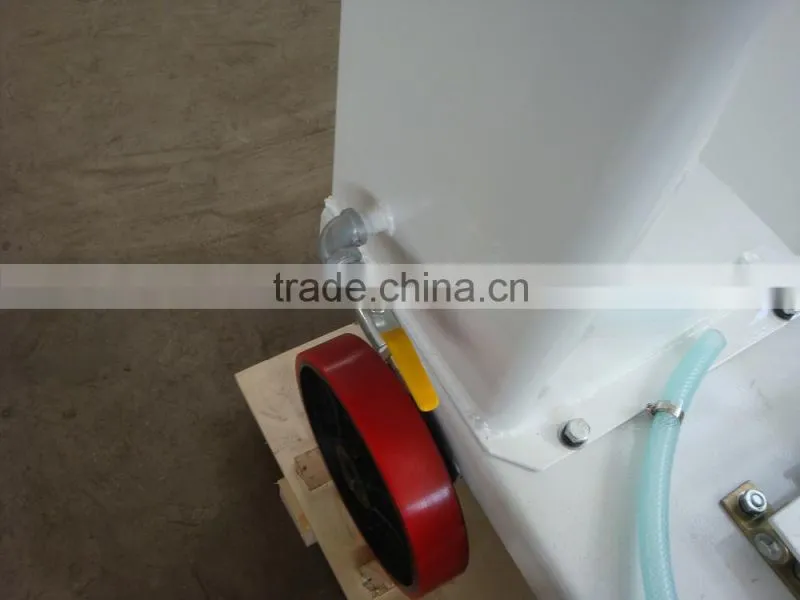

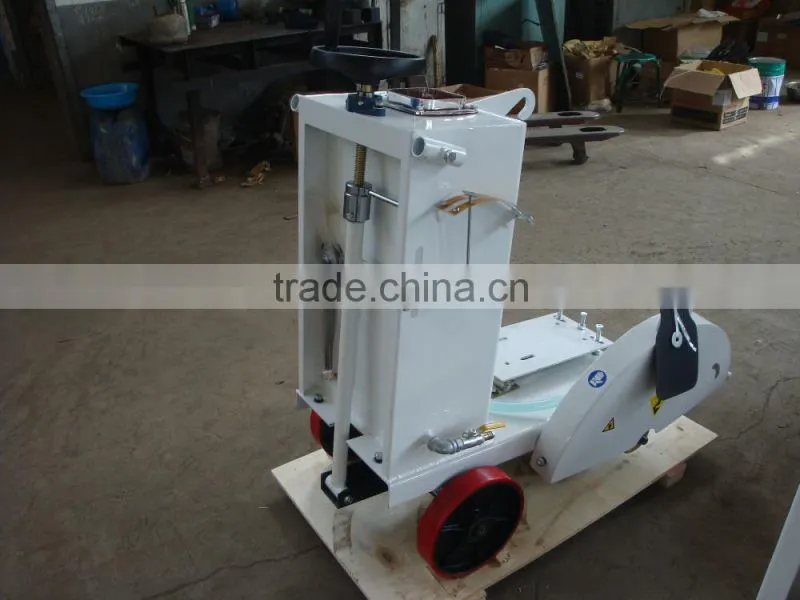

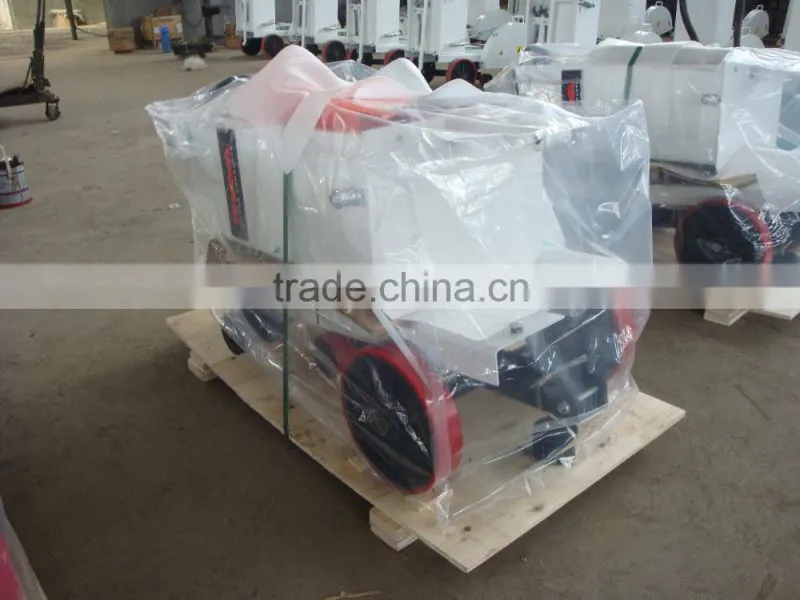

Reference Pictures
