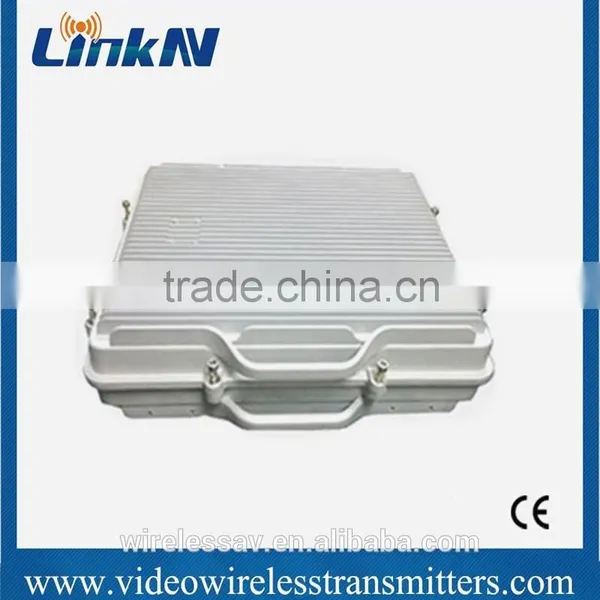

Help CenterWireless TDD Outdoor Portable Base Station Telecommunication Transceiver
Related Products
-
LinkAV-NJ340-20W TDD Base Station EquipmentUS$ 1 - 1,500MOQ: 1 Piece -
LinkAVVtech-TJ+340-20W TDD Outdoor Communication Portable Base Station TransceiverUS$ 1 - 2MOQ: 1 Piece
-
Co-chaneel Netwoking TDD Base Station Transceiver With NF HeadUS$ 5,000 - 9,000MOQ: 1 Unit
-
Long Range 20W NLOS Outdoor Base Station,wireless Audio Video TransceiverUS$ 5,000 - 10,000MOQ: 1 Unit
-
NLOS Transparent Transmission TDD Transceiver,wifi Base StationUS$ 5,000 - 10,000MOQ: 1 Unit
LinkAV wireless transmission system advantages:
- Long range transmission distance
- Real-time transmission systems
- Delay time very short less than 500ms
- Perfect image quality, brighter colors and image smoothness.
Introduction:
When data over uplink increases, more communication capacity is allocated. This is taken away when the traffic load becomes lighter. It operates by toggling transmission directions over a time interval, which occurs rapidly and is barely visible to the user. TDD supports voice and symmetrical as well as asymmetric data services. It also handles a dynamic mix of both traffic types. The capacities of downlinks and uplinks are altered in favor of one direction over another by providing greater time allocation through time slots to downstream transmission intervals than to upstream ones.
Well known examples of TDD are:
- Half-duplex packet mode networks based on carrier sense multiple access
- IEEE 802.16 WiMAX
- PACTOR
- Digital enhanced cordless telecommunications (DECT) wireless telephony
- Universal Mobile Telecommunications System 3G supplementary air interfaces
- TD-CDMA for indoor mobile telecommunications
- TD-SCDMA 3G mobile telephony air interface
Features:
1. Modularized, Three-proof, Low-power consumption design;
2. Support system with frequency or inter frequency networking;
3. Stable power, adjustable dynamic power;
4. Single carrier frequency support up to 4 simultaneous users two-way data transmission
5. Encryption: AES 128 bit, can set user’s password;
6. IP NLOS transparent data transmission;
Technical Parameters:
Parameter / Type |
TJ-340S-20W |
|
|
RF Parameter |
Working Frequency |
300-800MHz(Optional) |
|
Modulation Bandwidth |
2 / 4 / 8MHz |
|
|
Modulation Type |
TDD-OFDM |
|
|
Communication Mode |
TDMA |
|
|
Power Output |
≤43dBm |
|
|
Band Flatness |
≤ ±0.5dB |
|
|
Spurious Spectrum |
≤ -36dBm |
|
|
Third-order IM |
≤ -36dBC |
|
|
RX Sensitivity |
≤ -100dBm |
|
|
MER |
≥ 36dB |
|
|
Anti Adjacent Frequency Interference |
≥ 40dB |
|
|
Data |
Synchronized Control |
GPS/ Beidou synchronous clock |
|
Transmission Bandwidth |
Max 14Mbps |
|
|
Network Protocol |
IP/TCP,UDP,HTTP,SMTP etc |
|
|
Generic Specification |
Operating Temperature |
-30 ~ +70°C |
|
Power Input |
~100 – 260V |
|
|
Power Consumption |
≤50W |
|
|
Size |
489*409*140mm |
|
|
Net Weight |
≤10Kg |
|
|
Connector |
Power Interface |
Waterproof three core aviation head (female) |
|
Data Connector |
Waterproof screw-thread aviation head |
|
|
RF Antenna Terminal |
NF |
|
|
GPS/Bidou Antenna |
SMA Female Head |
|
|
Our service:
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
