COFDM Small Wireless av transmitter suitable for man backpack
COFDM Wireless av level transmitter Product Features:
1.Long range transmission distance;
2.Real-time transmission system;
3.Delay time very short less than 500ms;
4.Perfect image quality, brighter colors and image smoothness.

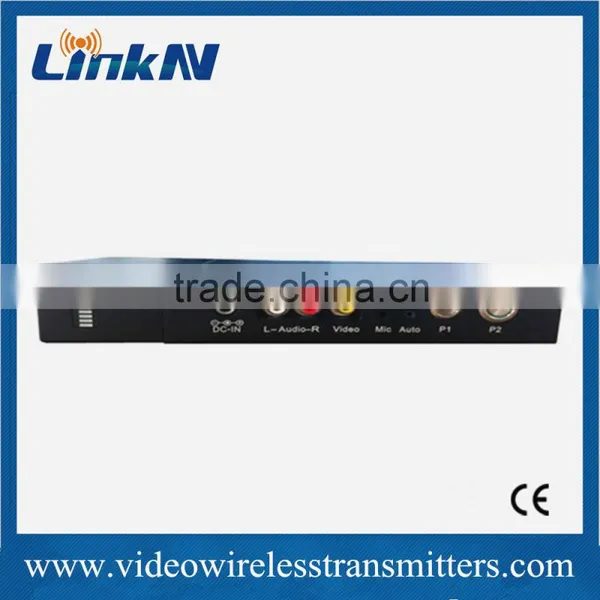

COFDM wireless video transmitter model LinkAV-C322S-2W is with small size,transmission Power is 2W,support NLOS transmission. the wireless frequency is 300-900Mhz, the RF bandwidth is 1.25/2.5/6/7/8MHz(optional).
Technical Parameters:
| Transmission Characteristics | |
| Modulation Type | QPSK(4QAM), 16QAM, 64QAM |
| Working Frequency | 300-900MHz ( adjustable 0.5M per step) |
| Transmission Power | 2W (adjustable) |
| RF Bandwidth | 1.25/2.5/6/7/8MHz(optional) |
| FEC(forward error correction) | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Latency | 300 ms |
| Transmission Range | 2 km (NLOS) ~ 8 km (LOS) |
| Data Characteristics | |
| Video Input | AV (PAL/NTSC) |
| Video Compression | MPEG-2 |
| Audio Input | RCA, intercom earplugs |
| RF Interface | N F head |
| Parameter Control Method | Using digital LED control panel |
| Encryption Method | 128 - bit AES (can set user’s password) |
| Electrical Characteristics | |
| Working Voltage | DC 12V |
| Working Current | 1.5 A |
| Power Consumption | ≤ 20W |
| Battery Life | 5 hours |
| Physical Characteristics | |
| Working Environment | -10~70℃ |
| Dimensions | 170×120×45mm (without battery) |
| 220×120×45mm (with battery) | |
| Weight | 2 Kg |
Application:
Can be used for Public security, fire fighting,traffic warden,Civil air defense emergency, City administration, Monitoring of environment, Water conservation, flood prevention, Power and emergency, Railway emergency rescue, Maritime,Coastguard patrol,The customs border,Dock/Quay monitoring, Forest-fire prevention,Oil field,Military reconnaissance,TV transmit etc.
Our Services:
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
Company information:
In 2005 we founded our international Head Office in Shenzhen, China, and began offering our products worldwide in 2013. We produce Wireless Transmitters with high quality under very competitive price for 8 years in China.
LinkAV with cutting edge technology of Zhongchuang Technology Group Limited is a brand established recently to meet the demands of COFDM, TDD or 3G/4G wireless connection requirements.
LinkAV now is working as a solid supplier for ZTE and dedicating our best to provide the world-class wireless video transmitters for UAV, mining, oil spill monitoring, etc, please contact us today for more information and a sample for testing first. Please follow up for how to become a distributor of LinkAV.
