Shenzhen factory nlos cofdm hd video wireless transmitter used in body-worn

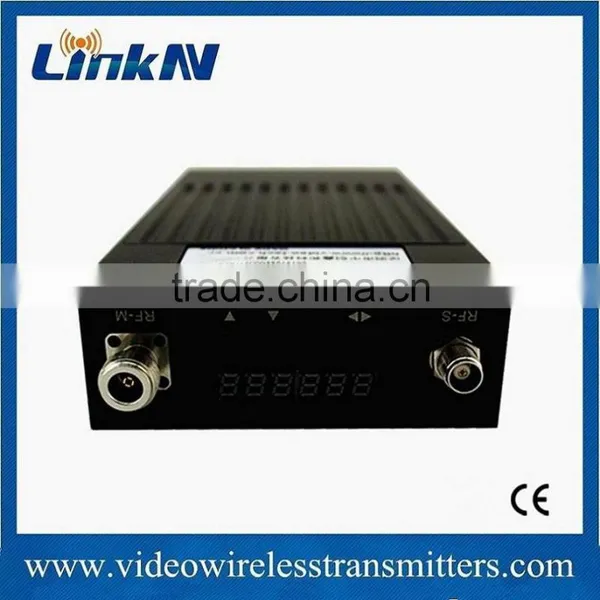

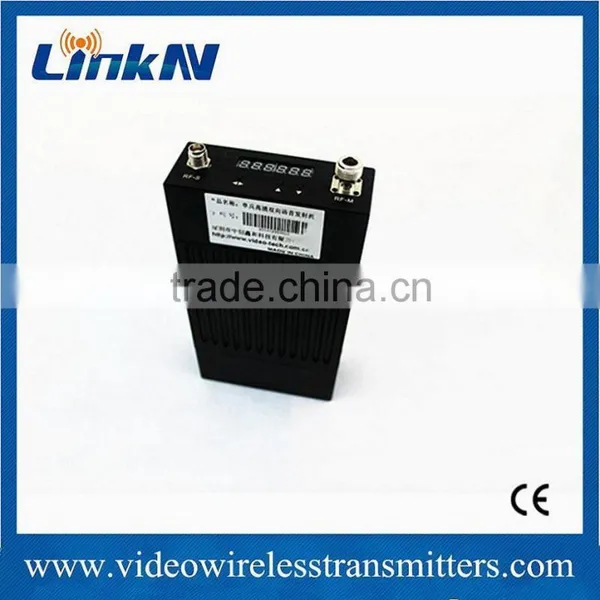

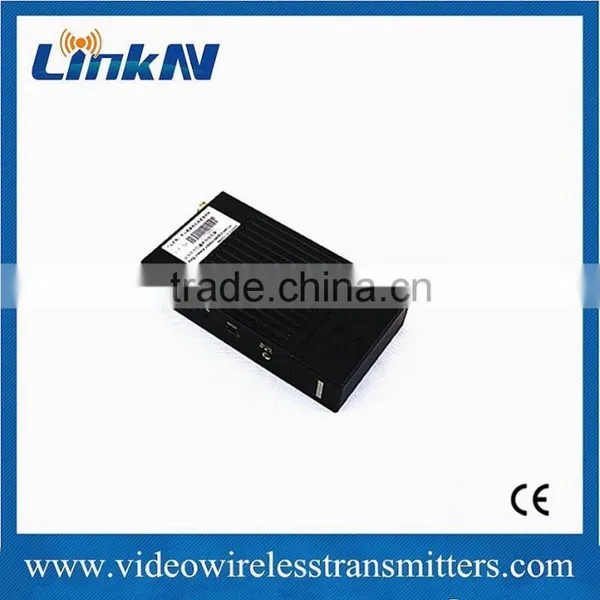

COFDM wireless video transmitter model LinkAV-C322H-2W is with small size,transmission Power is 2W,support NLOS transmission. the wireless frequency is 300-900Mhz, the RF bandwidth is 1.25/2.5/6/7/8MHz(optional).
The COFDM wireless video transmitter is ideal for use in body-worn, covert applications or in fixed deployments.
The transmitter provides excellent distance and performance through its range of wireless
transmission bandwidths.
The transmitter is particularly well suited to providing robust wireless video links in
mobile and non-line-of-sight urban environments to a range of over 1 km. Ranges of over 40
km may be achieved in line-of-sight environments. Built-in AES 128-bit encryption ensures
security.
Technical Parameters:
| Transmission Characteristics | |
| Modulation Type | QPSK(4QAM), 16QAM, 64QAM |
| Working Frequency | 300-900MHz ( adjustable 0.5M per step) |
| Transmission Power | 2W (adjustable) |
| RF Bandwidth | 1.25/2.5/6/7/8MHz(optional) |
| FEC(forward error correction) | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Latency | 300 ms |
| Transmission Range | 2 km (NLOS) ~ 8 km (LOS) |
| Data Characteristics | |
| Video Input | HDMI |
| Video Compression | H.264 |
| Audio Input | Intercom earplugs |
| RF Interface | N F head |
| Parameter Control Method | Using digital LED control panel |
| Encryption Method | 128 - bit AES (can set user’s password) |
| Electrical Characteristics | |
| Working Voltage | DC 12V |
| Working Current | 1.5 A |
| Power Consumption | ≤ 20W |
| Battery Life | 5 hours |
| Physical Characteristics | |
| Working Environment | -10~70℃ |
| Dimensions | 170×120×45 mm (without battery) |
| 220×120×45 mm (with battery) | |
| Weight | 2 Kg |
System Application:
Can be used for Public security, fire fighting,traffic warden,Civil air defense emergency, City administration, Monitoring of environment, Water conservation, flood prevention, Power and emergency, Railway emergency rescue, Maritime,Coastguard patrol,The customs border,Dock/Quay monitoring, Forest-fire prevention,Oil field, Military reconnaissance, TV transmit etc.
It is suitable for real-time mobile transmit the high quality image/audio/video in the urban area, seaborne, mountainous region etc complicated environment.
Our Services
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
Company Information
In 2005 we founded our international Head Office in Shenzhen, China, and began offering our products worldwide in 2013. We produce Wireless Transmitters with high quality under very competitive price for 8 years in China.
LinkAV with cutting edge technology of Zhongchuang Technology Group Limited is a brand established recently to meet the demands of COFDM, TDD or 3G/4G wireless connection requirements.
