Place of Origin
Jiangsu, China
Brand Name
Dongyu
Model Number
EDR24-2400
Type
E-Glass
Specifications

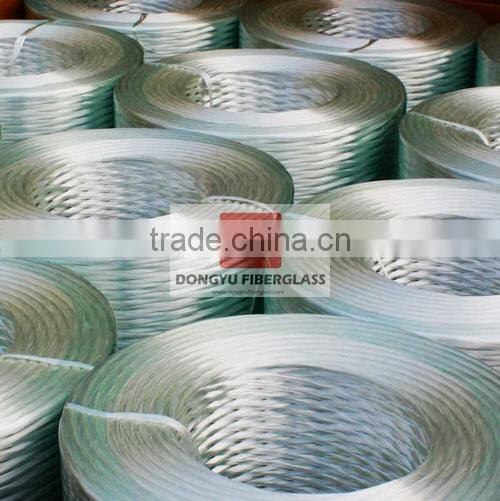

Fiberglass Direct Roving for Pultrusion is coated with a silane-based sizing and compatible with unsaturated resin, vinyl.Fiberglass Direct Roving for Pultrusion
Fiberglass Direct Roving for Pultrusion is coated with a silane-based sizing and compatible with unsaturated resin, vinyl resin, and epoxy resin. It is designed for filament winding, pultrusion, and weaving applications.
Fiberglass Direct Roving for Pultrusion is suitable for use in pipes, pressure vessels, gratings, and profiles, and the woven roving converted from it is used in boats and chemical storage tanks.
Product Features
Good process performance and low fuzz
Compatibility with multiple resin systems
Complete and fast wet-out
Good mechanical properties
| Identification | |||||||||||||||||||||
| Glass Type | E-glass | ||||||||||||||||||||
| Type of Size | Silane | ||||||||||||||||||||
| Size Code | 386 | ||||||||||||||||||||
| Linear Density (Tex) | 300 | 200 | 600 | 900 | 1100 | 1500 | 1700 | 2200 | 2400 | 9600 | |||||||||||
| 735 | 400 | 1200 | 4800 | ||||||||||||||||||
| Filament Diameter (μm) | 14 | 16 | 17 | 15 | 17 | 18 | 19 | 22 | 24 | 31 | |||||||||||
| Technical Parameters | |||||||||||||||||||||
| Linear Density (%) | Moisture Content (%) | Size Content (%) | Breakage Strength (N/tex) | ||||||||||||||||||
| ISO 1889 | ISO 3344 | ISO 1887 | ISO 3341 | ||||||||||||||||||
| ±5 | ≤0.10 | 0.55±0.15 | ≥0.40 | ||||||||||||||||||
| Mechanical Properties | |||||||||||||||||||||
| Mechanical Properties | unit | Value | Resin | Method | |||||||||||||||||
| Tensile Strength | MPa | 2345 | Poyester | ASTM D2343 | |||||||||||||||||
| Tensile Modulus | MPa | 79794 | Poyester | ASTM D2343 | |||||||||||||||||
| Shear Strength | MPa | 63 | EP | ASTM D2343 | |||||||||||||||||
| Shear Strength retention | % | 95 | EP | ||||||||||||||||||

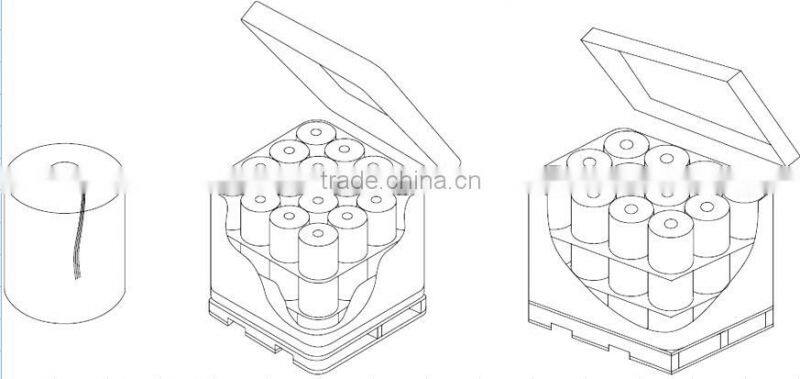

Packaging
The product can be packed on pallet on pallet or in small cardboard boxes.
