125cc Engine Gas Quads Bike With CE

125cc Engine Gas Quads Bike With CE thumbnail-1
125cc Engine Gas Quads Bike With CE photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
110cc
Engine Type:
4 Stroke
Contact Supplier Request Quote Chat Now
Yongkang Lingying Electric Appliance Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Displacement 110cc
Engine Type 4 Stroke
Transmission Type Semi-Automatic
Transmission System Chain Drive
Certification Other, CE
Brand Name EGL
Place of Origin Zhejiang, China
Model Number madix 125cc

Specifications

125cc gas atv quad with reverse
(manual/automatic available)
unique design 125/110 atv
hand break , 8''tire rim.

125cc Atv Quad with Reverse (Manual/Automatic Available )





110cc/125cc/150cc available for you to select .

with CE certificate

CVT available .

 Specification :

1) engine:125 Single cylinder,4stroke , air-cooling
2) Engine displacement(ml):123.67cc
3) Bore and Stroke(mm×mm):           54×54mm
4) Max.Power(kw/r/min) :6.3/(7500(1±5%)
5) Max.Torque (N.m/r/min):8.8/(5500(1±5%)
6) Engine Compression Ratio:9.0:1
7) Starting mode: electric start
8) ignition :CDI
9) Transmission mode: chain driven
10) Brake type(front/Rear):drum/disc
11)Shift speed type: 3+1 & 1+1
12) Clutch mode:semi-auto
13) Fuel tank:4.3L
14) Max loading :75 kg
15) Seat Height(mm): 700mm
16) Minimum ground clearance(mm): 210mm
17) Top speed(km/h): around 45KM/H
18) Tire(front/rear):19×7.00 - 8;18×9.5-8
19) Cover material: PP
20) Product dimensions:1420mm*940mm*660mm
21) Dual “A” arm swing
Carton dimensions: 1200×760×640mm
N.W:105kg     G.W:120KG
Carton dimensions: 1200×760×640mm
N.W:105kg      G.W:120KG

 Qty/20'GP:39pcs

Qty/40’HQ:112pcs

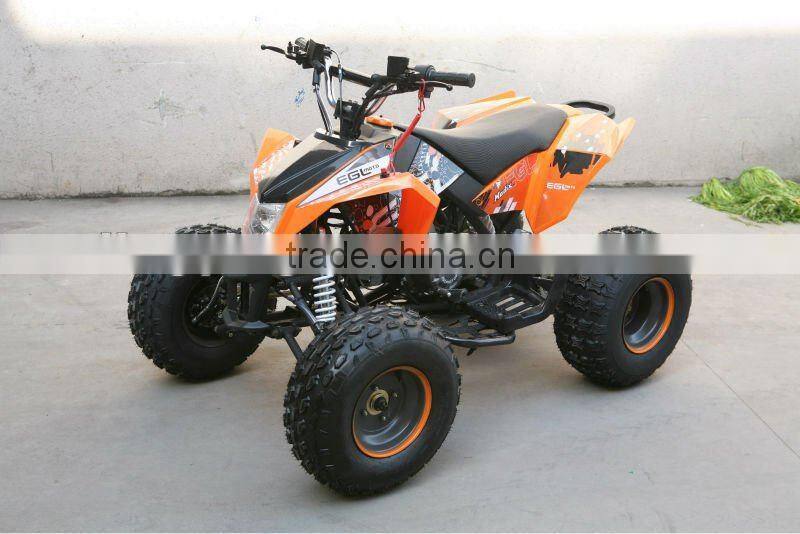

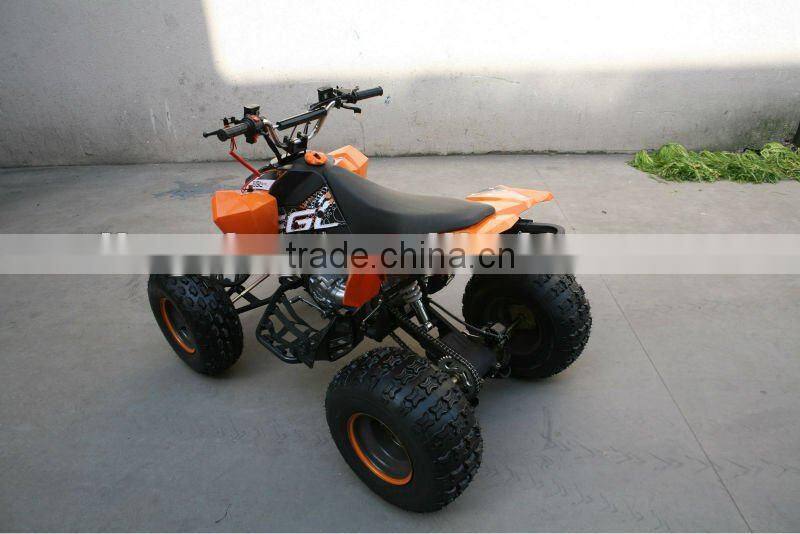

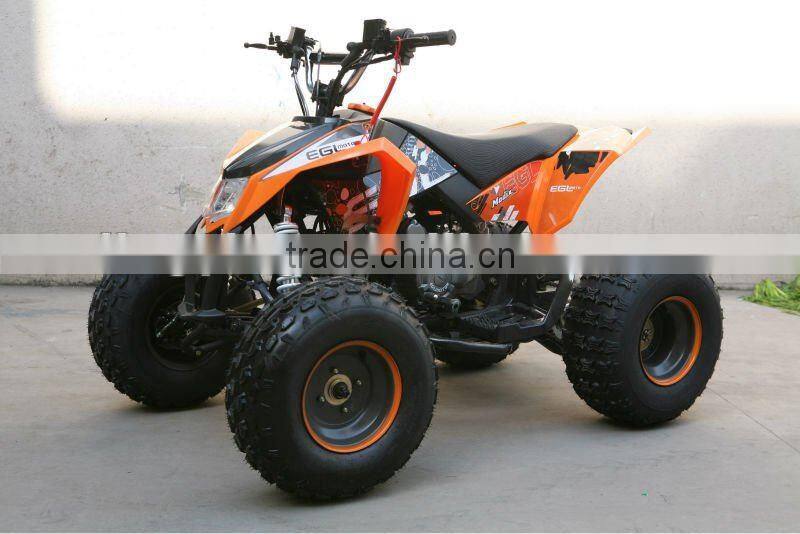

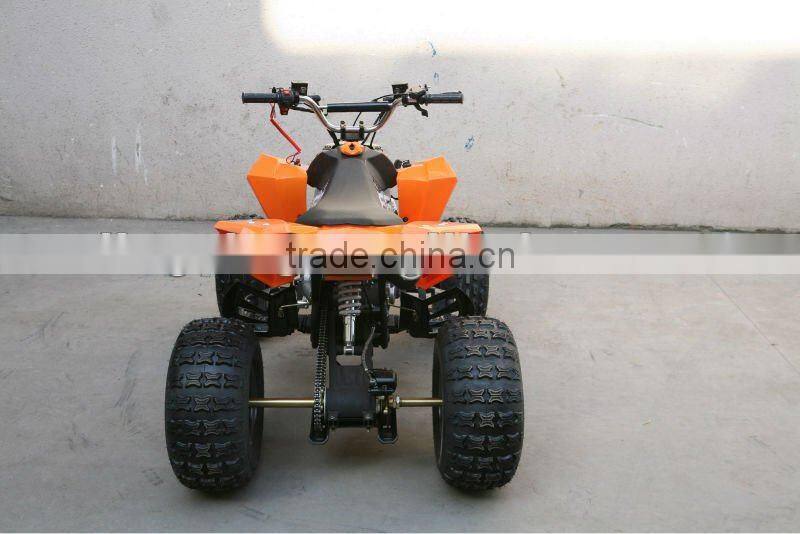

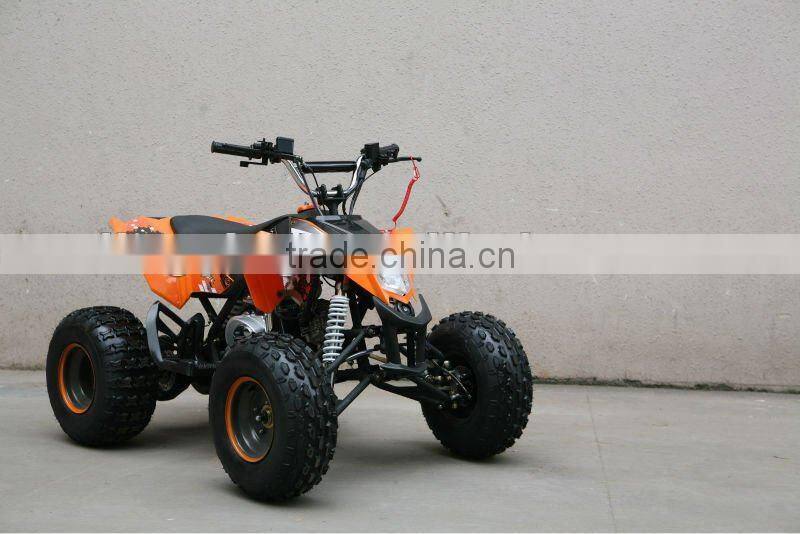

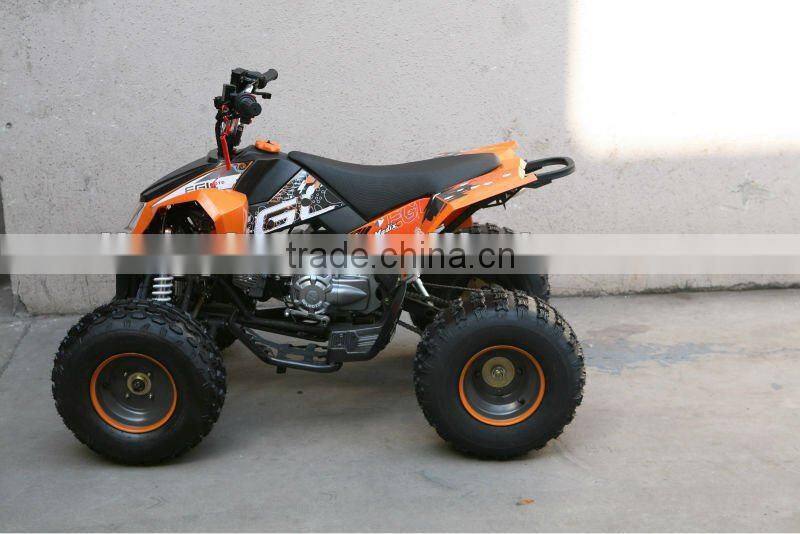

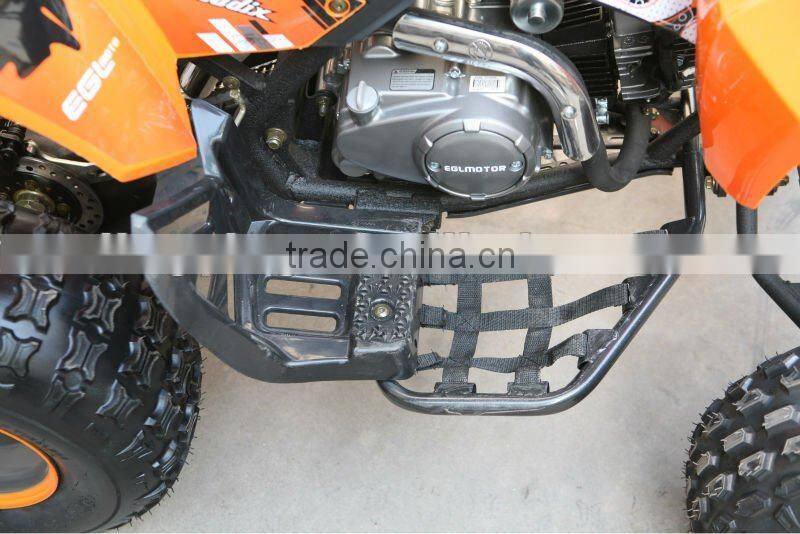

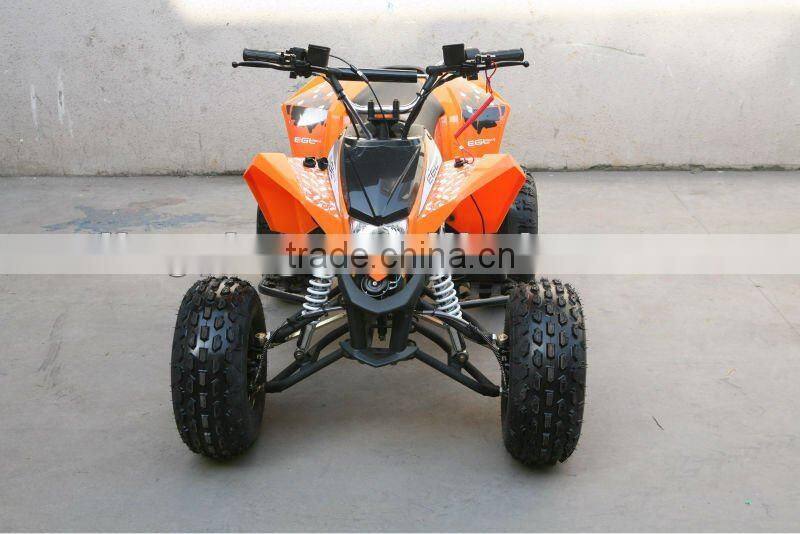

125cc Engine Gas Quads Bike with CE

 whole design Details :



125cc Engine Gas Quads Bike with CE125cc Engine Gas Quads Bike with CE125cc Engine Gas Quads Bike with CE125cc Engine Gas Quads Bike with CE

 125cc Engine Gas Quads Bike with CE125cc Engine Gas Quads Bike with CE125cc Engine Gas Quads Bike with CE
