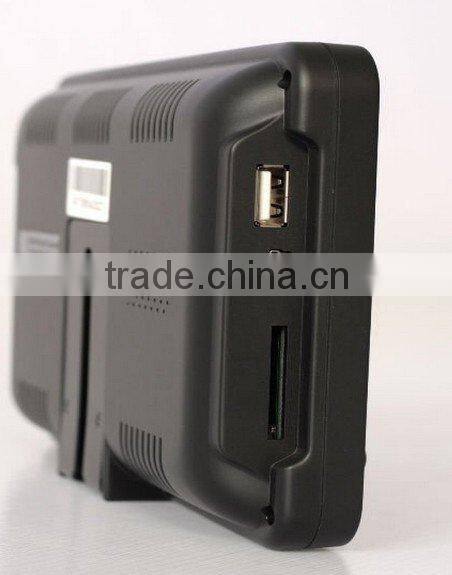

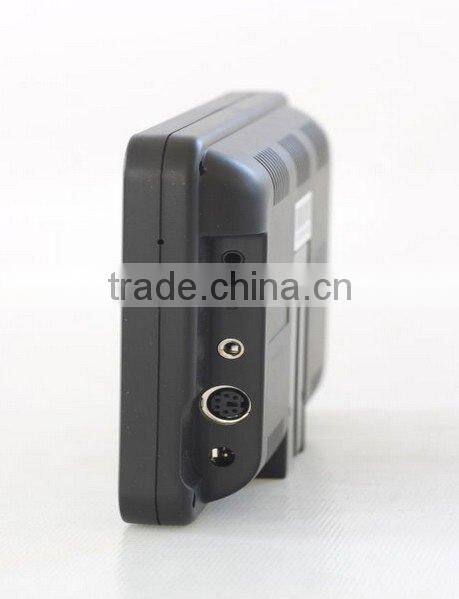

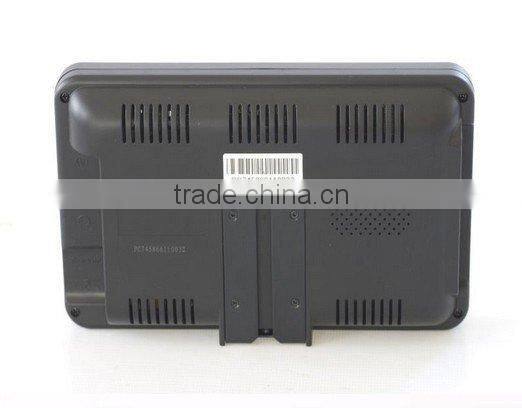

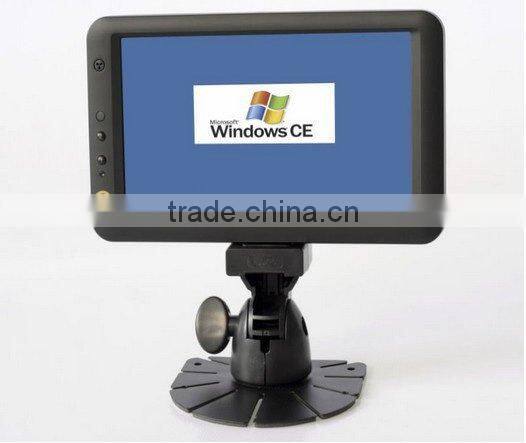

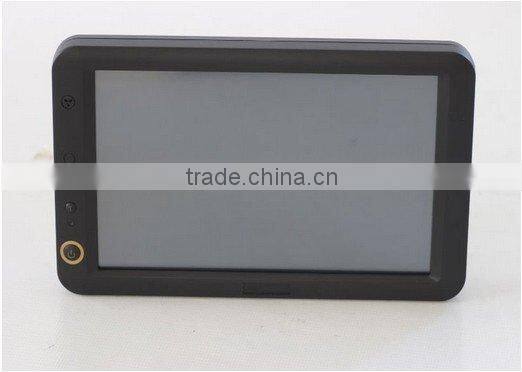

7" LCD Industrial touch panel PC with WinCE
Model: PC-745
Functions
7inches TFT LCD WinCE PC with touch screen; WinCE 5.0 operating platform;
A/V input; Memory with SD Card;
2 USB input (1 USB for mouse and keyboard, 1USB for PDA);
1 RS232 input; Earphone output; Multi-language OSD; MP4 Media Player;
Acoustic FM emission: 78-108MHZ; Wlan/Wifi: 802.1.1(optional);
E-book Reader E-mail Management(optional);
Office Software Package(optional);
GPS(optional).
Specification
Display Screen: 7 inches TFT LCD
High Resolution: 800×480 (1,152,000) pixels
Aspect ratio: 16:9
Brightness:300cd/m2
OS: Windows CE 5.0
CPU: Samsung S3C2440A, 400MHZ
Memory: 64MB Flash ROM + 128 MB SDRAM
Multimedia Data Storage: SD card/USB Flash memory
Expansion Slot:: SD card, support SD/IO(Up to 4GB)
Transfers Surface: USB 1.1(USB Host and Slave)
Media palyer:
Audio: MP3, WMA, WAV
Video: MPEG1/2/4, ASF, WMV9,
Picture: JPG, BMP
Speaker: 1W
Audio output: <1.2W
Working Temperature: -10-65oC
Storage Temperature: -25-80oC
Power Supply: AC to DC 12V
Dimension(mm): 188L*114W*35H
Weight: 453g
Accessory
| USB Cable | 1 Piece |
| DC 12V Home Power | 1 Piece |
| SD Card (optional) | 1 Piece |
| Driver Disk | 1 Piece |
| Touch pen | 1 Piece |
| Operation Manual | 1 Piece |
| Keyboard (optional) | 1 Piece |
| Mouse (optional) | 1 Piece |
