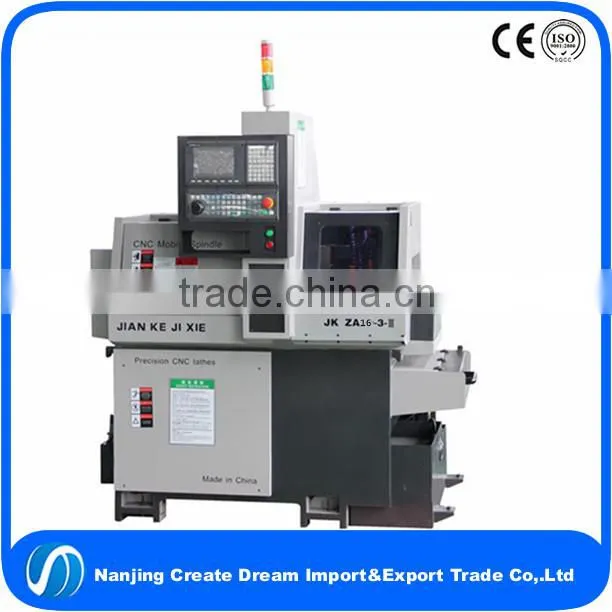

Help CenterZa16-3 Single Shaft Swiss Type Cnc Lathe Machine Price Low
Related Products
-
Za20-3 Swiss Type Heavy Duty Cnc Lathe MachineUS$ 33,334 - 41,666MOQ: 1 Set -
Za16-5 High Precision China Cnc Lathe Machine PriceUS$ 33,334 - 43,334MOQ: 1 Set
-
5 Axis Double Main Shaft Manual Spinning Machine Metal LatheUS$ 55,000 - 66,000MOQ: 1 Set
-
Cheap Mini Metal Lathe ChinaUS$ 78,334 - 83,334MOQ: 1 Set
-
Single-spindle Numerical Control With Sliding Headstock Automatic Lathe MachineUS$ 33,334 - 43,334MOQ: 1 Set
Specifications
cnc lathe machine price low1.turning and milling composite
2.oil cooling system
3.no guide bush design
High precision ball screw and linear guide
cnc lathe machine price low X/Y/Z shaft adopts THK ball screw from MPI,the two Motor fixed ends adopts NSK TAC design, thermal displacement of machine combined bearing support, it uses prestreching is reduced to minimum.
High precision and rigidity internal-mounted electric spindle
No guide bush design
cnc lathe machine price low adopts no guide bush design. Unique no guide bush design can make the walk schemer endemic, long tail materials are fundamentally solved, general walked the length of the tail material sketchy 120mm-180mm left and right, but without using a guide set design , below and walked the length of the tail materialcan make the tail after feeding control in 10mm sword quite. Because it cannot use guide set of processing, walk schemer due to materials bending appear tool diameter elliptic phenomenon get greatly improved, and make themachine roundness and walk knife machine quite.In processed when the machine farmhand heavily thing also can use a fixed guide covers and activities guided sets.

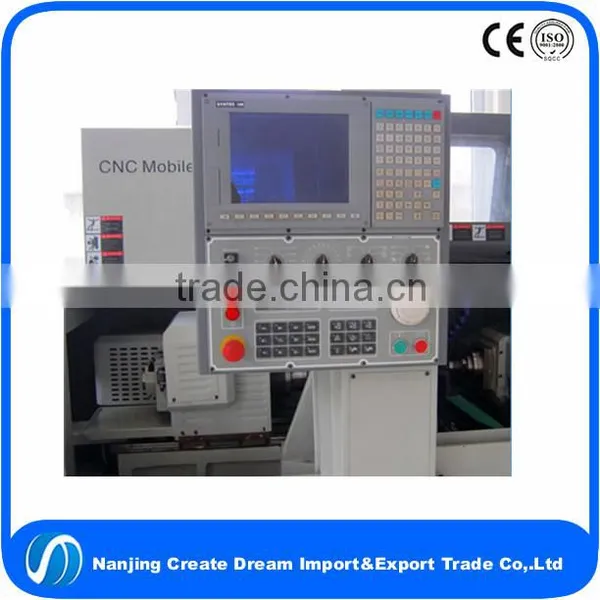

syntec controller
cnc lathe machine price low adopts SYNTEC 10B controller from Taiwan ,with its high stability, high precision and strong operating function to provide essential to guarantee for machining high quality work-pieces, with 16-shaft 4-linkage line, unlimited Indexing main shaft, strong network connections , hand wheel simulation , etc.
Oil cooling system of main spindle
cnc lathe machine price low adopt high quality motor and cooling oil,extermal connected with strong cooling module and cooling fan to guarantee safty,high efficiency,mute,to promise a steady and perfect working environment for the electric main spindle.
Long work piece rotary feed device
cnc lathe machine price low can reduce the beat of the slender,the improvement of the machining quality,because use PVC engineering plastic seat base,greatly seat base,greatly reducing the surface Brush,can maaximizethe protection of the surface finish.
Specifications of cnc lathe machine
| Main shaft | Through-hole dia. of main shaft | 17 |
| Max machining bar(mm) | 16 | |
| Chuck model | TSUGAMI S20 | |
| Height from center of main shaft to the floor(mm) | 975 | |
| Unlimited graduation of main shaft | Support | |
| System | Operating system | SYNTEC 10B |
| Main shaft motor | 3.0KW | |
| Rotary speed of foundation base(rpm) | 1500 | |
| Max rotary speed | 8000 | |
| Servo motor power of X/Y/Z/x2/Z2 shaft(KW) | 0.75 | |
| X/Z shaft | Travel of shaft X(mm) | 40 |
| Travel of shaft Z(mm) | 180 | |
| X/Y/Z/x2/Z2 rapid feeding speed(G00) | 24m/min | |
| accuracy | X/Y/Z//x2/Z2 repeated accuracy(mm) | 0.004 |
| X/Y/Z/X2/Z2 positioning accuracy(mm) | 0.005 | |
| Others cnc lathe machine price low | O.D.Tool number | 5 |
| I.D. Tool number | 4 | |
| end milling tool number | 4 | |
| Sub-spindle End milling tool number | 3 | |
| O.D.Spec.of tool | ER12 | |
| I.D.Spec.of tool | ER11 | |
| Side milling spec.of tool | ER11*2/ER16*2 | |
| End milling psec,of tool | ER11*3 | |
| Outline dimension(L*W*H) | 1700mm*1210mm*1800mm | |
| Total power(KW) | 6 | |
| Net weight(KG) | About 1260 |
Established in 2014, Nanjing Create Dream Import & Export Trade Co., Ltd. is a trader specialized in the research, development and production of CNC lathe, fixings systems and communication equipments .We are located in Nanjing, with convenient transportation access. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communications industry and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

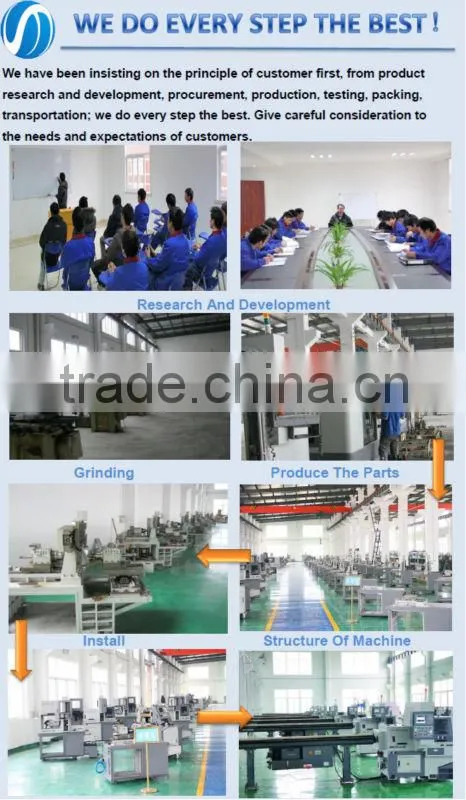

cnc lathe sales department was established to be responsible for sales of machine cnc machine . We have introduced of Japanese technology and advanced management idea. Newly purchased equipment includes grinding machine, gantry type milling machine, coordinate measuring machine, laser interferometer and precision processing and testing equipment. We employee industry elites to develop the no guide sleeve structure with independent property right. At present, we have developed Swiss type single shaft CNC lathe, Swiss type single shaft dual powder head CNC lathe, double-main-shaft turning lathe & 8-axis machining center, offering a broad selection for customers and meeting different processing requirements. Our swiss type cnc lathe was widely applied in various industries which require high precision, multi-batch and complex shape, including aerospace, military industry, auto, motorcycles, communications, refrigeration, optics, appliances, measuring tools, meters, electronics, office equipment, etc. In the future, we will provide more high-performance equipment as well as attentive services to make your business successful!
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us .We are looking forward to forming successful business relationships with new clients around the world in the near future.
